100w 12v vertical wind generator
- 500 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- China manufacture Lock sheet Generator QFSN-300-2-20B for Pacitcan TPP material
- Yawing horizontal axis wind generator 25kw
- 2kw Eolica wind generator
- 3KW 360 RPM Permanent Magnet Generator For Wind Turbine Or Hydro Turbine Customized Electric Motor
- 2000W Wind-solar Hybrid Home Wind Power Generation Five-blade portable manufacturers 48v wind generator turbine price
- 300w household small wind generator solar wind energy power generation system micro generator set home use wind turbines price
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | NaiEr | Model Number: | NE-100SV |
Type: | Wind Power Generator |
Product Description
100w 12v vertical wind generator Features
1,VAWTs are better able to harvest turbulent air flow found around buildings and other structures
2,VAWTs are ideal for both rural and urban applications, including roof top installations. Depending on the shape of the roof, the wind flow over the roof can be concentrated, leading to an increased energy output

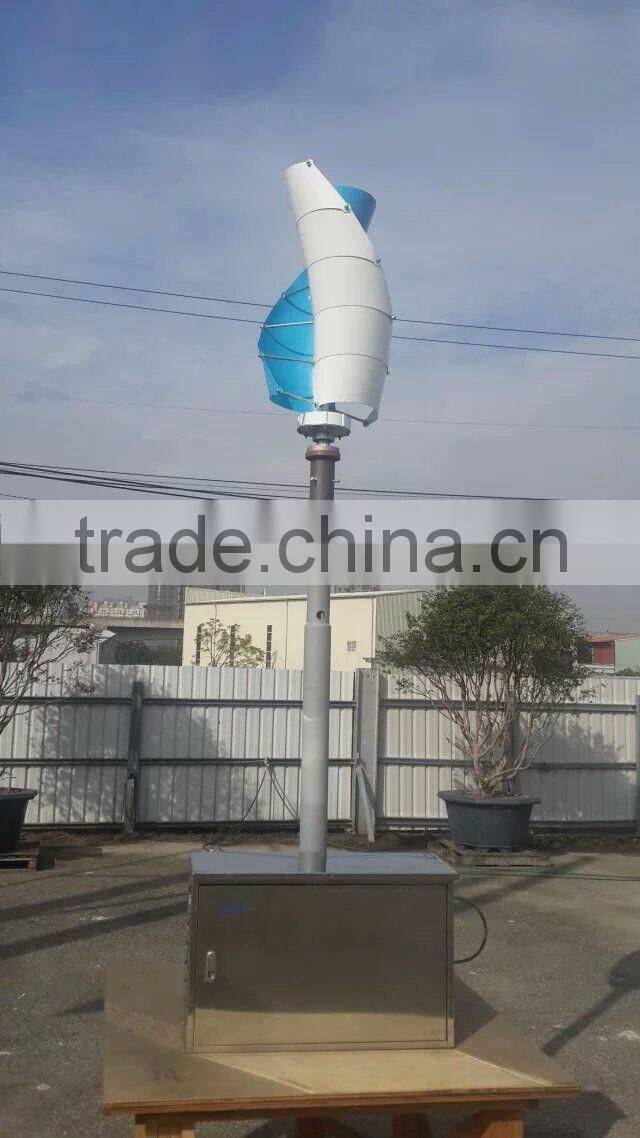

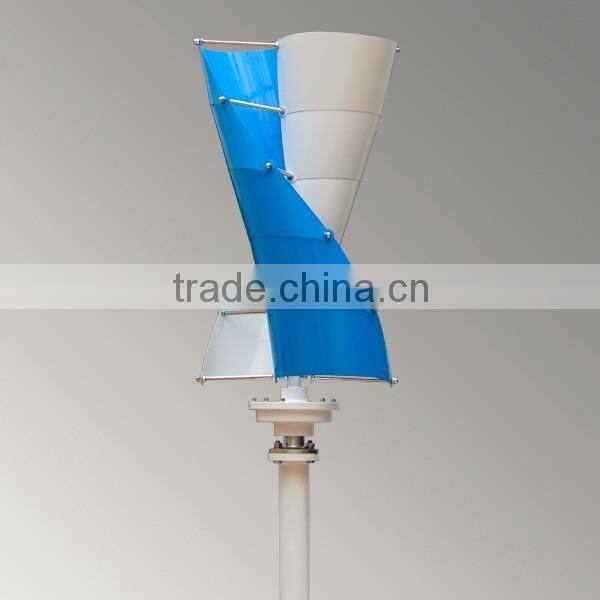

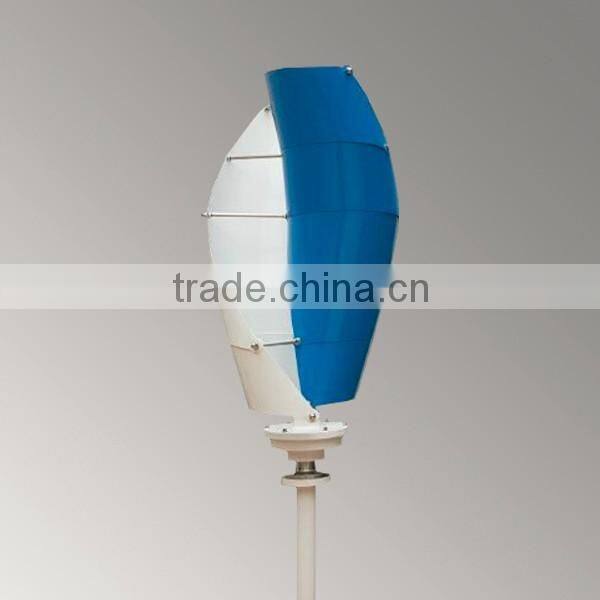

100w 12v vertical wind generator Pictures:
100w 12v vertical wind generator Technical Data:
There are many advantages of vertical axis wind turbines (VAWTs):
- VAWTs are not affected by the direction of the wind, which is useful in areas where the wind changes direction frequently and quickly. Unlike traditional horizontal axis wind turbines, a yaw mechanism is not needed to turn the wind turbine towards the wind.
- Because of this, VAWTs outperform horizontal axis turbines in areas where a tall tower isn't feasible
- VAWTs are better able to harvest turbulent air flow found around buildings and other structures
- VAWTs are ideal for both rural and urban applications, including roof top installations. Depending on the shape of the roof, the wind flow over the roof can be concentrated, leading to an increased energy output
- Simple to install and maintain
- Quiet operation
- Pleasant appearance
Model | NE-100SV |
generator power | 100w |
Wheel diameter | 0.5m |
turbine height | 0.92m |
Blades material | Casting aluminum alloy |
Number of blades | 10 |
Rated wind speed | 11m/s |
Start-up wind turbine | 1.5m/s |
Survival wind turbine | 45m/s |
Output voltage | 12v/24V |
Net Weight | 9.5kg |
Generator type | Maglev generator |
Control system | Electromagnet |
Speed regulation | Automatically adjust windward direction |
Lubrication way | Lubrication grease |
Working temperature | From -40℃ to 80℃ |
12v/24v 100w spiral wind generator project:
