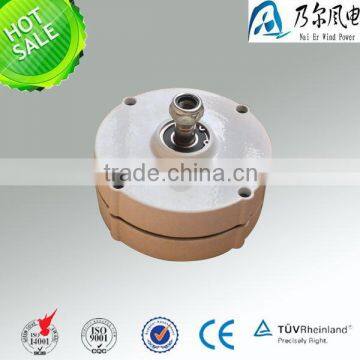

Much Discount 100watt 12/24v AC Generator Made in China

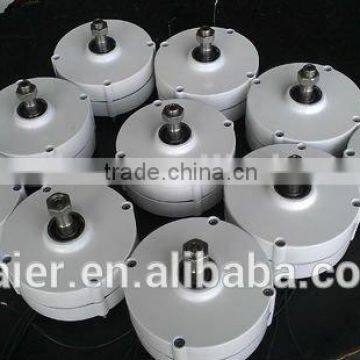

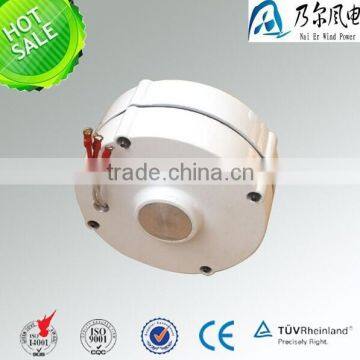

100w permanent magnet generator picture

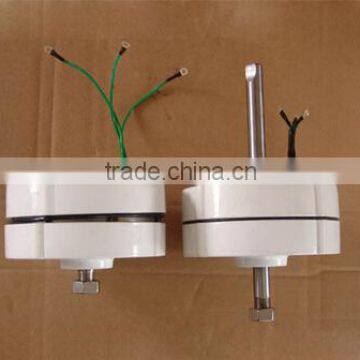

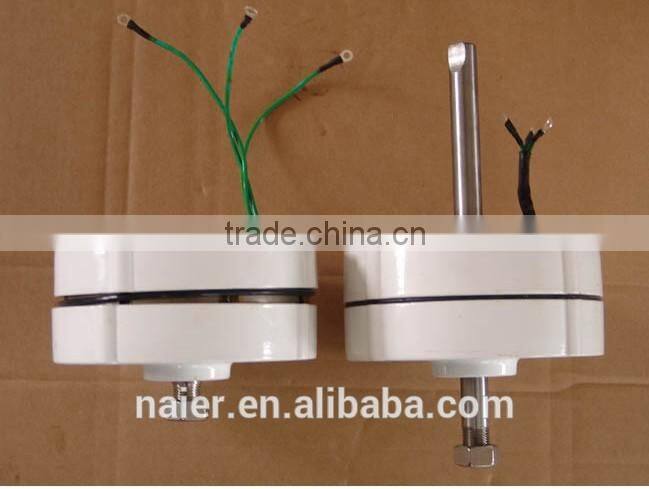

Remark: Dear friend, pls pay attention to one or two shafts...

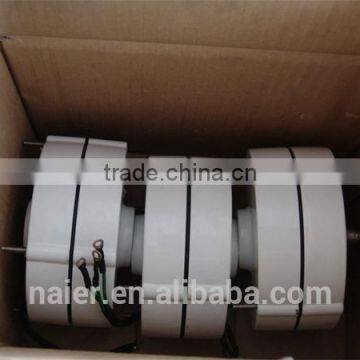

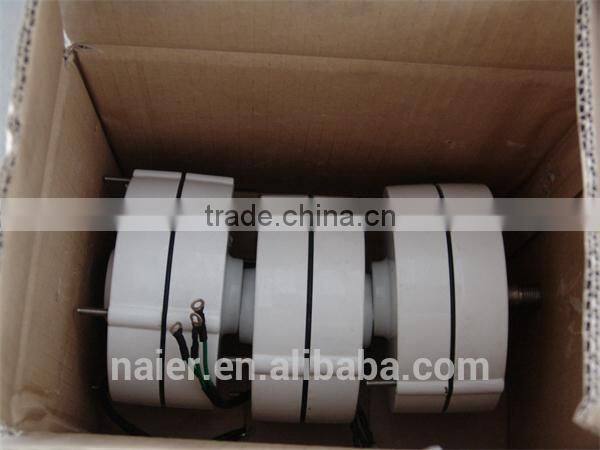

Goods in stock
100w permanent magnet generator parts
Rotor

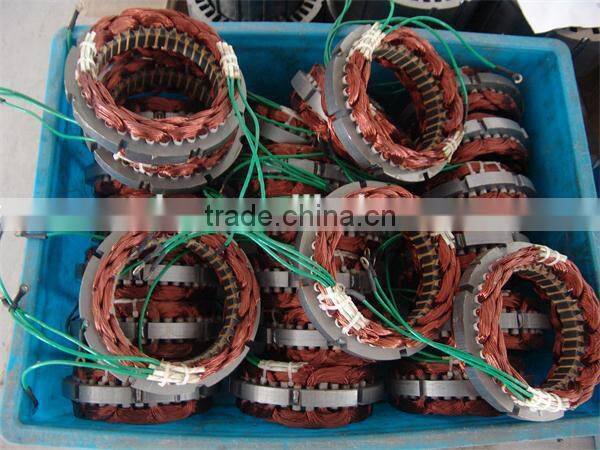

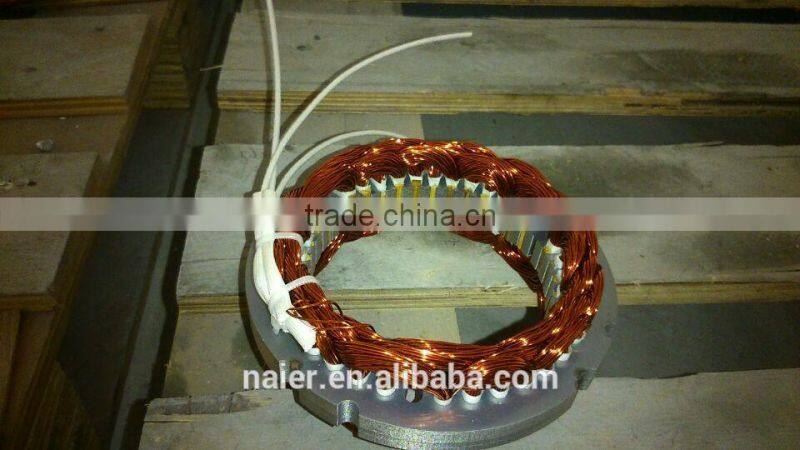

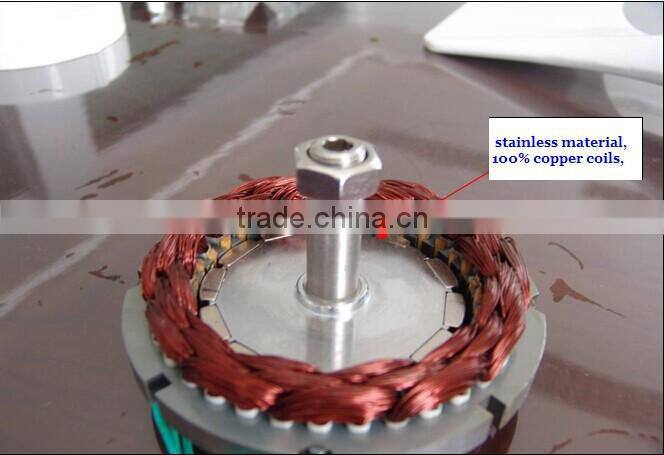

Stator
100w permanent magnet generator featurers
- Low start up speed;
- Low cogging torque
- Suitable for both Horizontal and Vertical Turbines
- Gearless, direct drive, low RPM generator.
- Alternator generator Type permanent magnet generator
- For use in all environments
- Excellent heat dissipation
- Designed for 20-year operation life.
Model | NE-100S |
Rated Power(w) | 100w |
Max Power(w) | 140w |
Rated Voltage(v) | 12/24v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 3.1kg |
Output Current | AC |
Start Torque(N*M) | 0.08Nm |
Generator | 3 phase permanent magnet synchronous generator |
Insulation Class | F |
Service Life | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | aluminium alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |

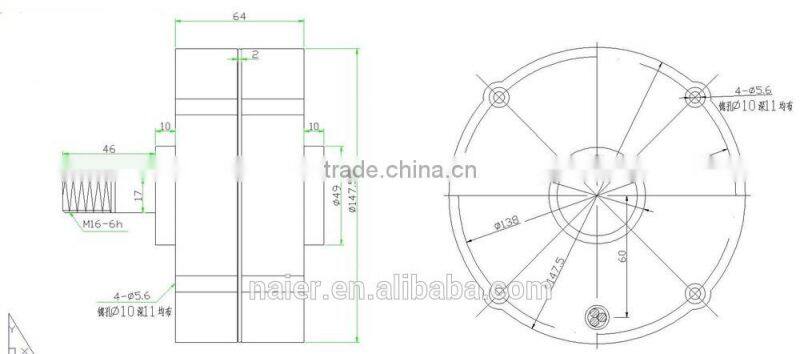

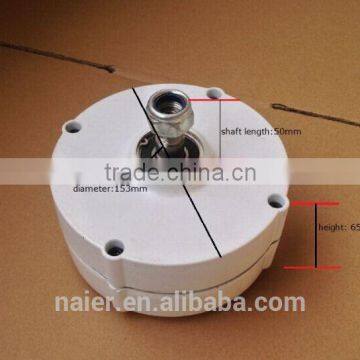

Drawing for Reference
