Features:
- Low start up speed;
- Low cogging torque
- Low rpm permanent magnet alternator 1000w 48v
- Suitable for both Horizontal and Vertical Turbines
- Gearless, direct drive, low RPM generator.
- For use in all environments
- Excellent heat dissipation
- Designed for 20-year operation life.

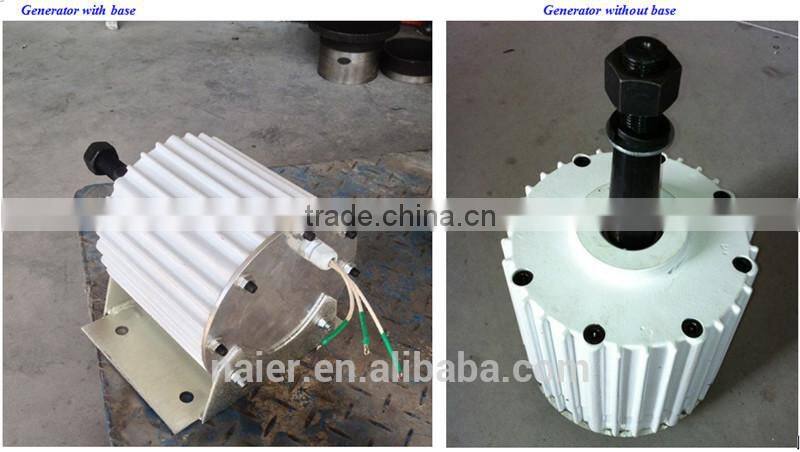

Product Image:

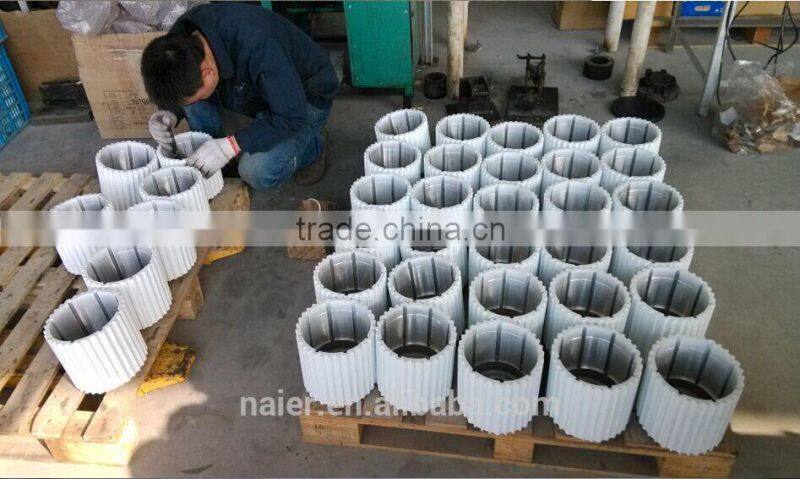

Generator case making

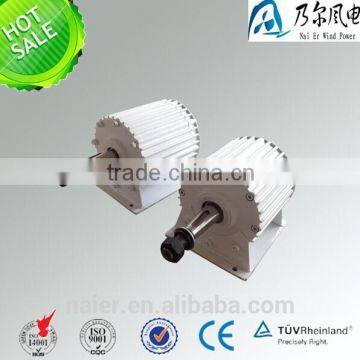

low speed permanent magnet generator for sale
Technical data
Model | NE-1000 |
Rated Power(w) | 1000w |
Max Power(w) | 1500w |
Rated Voltage(v) | 48v |
Rated rotated speed(r/m) | 330r/m |
Top net weight(kg) | 14.5kg |
Output Current | AC |
Start Torque(N*M): | 0.62Nm |
Rated Torque(N*M): | 19.1Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | aluminium alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Contact me for details:
