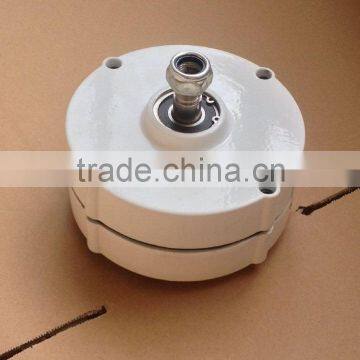

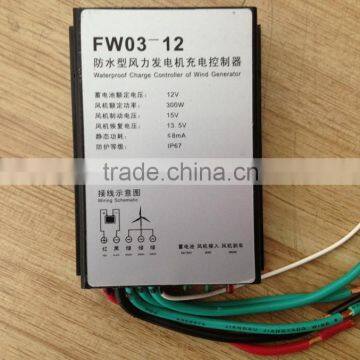

200w generator pmg with waterproof controller
features:
- Low start up speed;
- Low cogging torque
- Suitable for both Horizontal and Vertical Turbines
- Gearless, direct drive, low RPM generator.
- Alternator generator Type permanent magnet generator
- For use in all environments
- Excellent heat dissipation
- Designed for 20-year operation life.
outer shell:
rotor:
stator and coiling:
tech data:
Model | NE-200S |
Rated Power(w) | 200w |
Max Power(w) | 240w |
Rated Voltage(v) | 12/24v |
Rated rotated speed(r/m) | 600r/m |
Top net weight(kg) | 3.4kg |
Output Current | AC |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | stainless steel |
Shell Material | aluminium alloy |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Please kindly be noted there are 2 kinds of alternator, one is one shaft ones ,that is shaft out one side only and another is doubleshaft ones whose shaft out two sides, please contact with us for detailed information. Thank you!
one shaft: two shaft:
