Brief Introduction of Diamond Series Fan
Diamond Series KALE FAN is a super large energy-saving fan, can most efficiently push a large amount of air to move and up to 3730 m3 / min, but speed is only 80 RPM. In The open space, it can cover the area of more than 400 square meter!
Our large energy saving fan mainly used in commercial spaces like gyms, stadiums, fitness clubs, restaurants etc. The overall design comes from accurate calculation and produce the best breeze feeling for human body. Wind speed is soft but with large cover area. In practical applications, people can have a feeling of 5-8 degrees down with it. Each fan power consumption is only 0.4KW, just cost 12 yuan even if running eight hours per day. The product is beautiful, durable, free maintenance and can bring you dual effect of ventilation and cooling.
Technical Parameters
| Technical Specification | 8ft(2.4m) | 10ft(3.0m) | 12ft(3.6m) | 14ft(4.2m) |
| Model | D8BAA24 | D8BAA30 | D8BAA36 | D8BAA42 |
| Air disp.@max speed | 1470m³/min | 2380m³/min | 3010m³/min | 3730m³/min |
| Max speed | 120RPM | 100RPM | 90RPM | 80RPM |
| Fan weight | 31KG | 35KG | 38KG | 41KG |
| Motor power | 0.15KW | 0.2KW | 0.3KW | 0.4KW |
| Input Voltage | 220V/1P | 220V/1P | 220V/1P | 220V/1P |
Components
Installation Conditions
Package Details

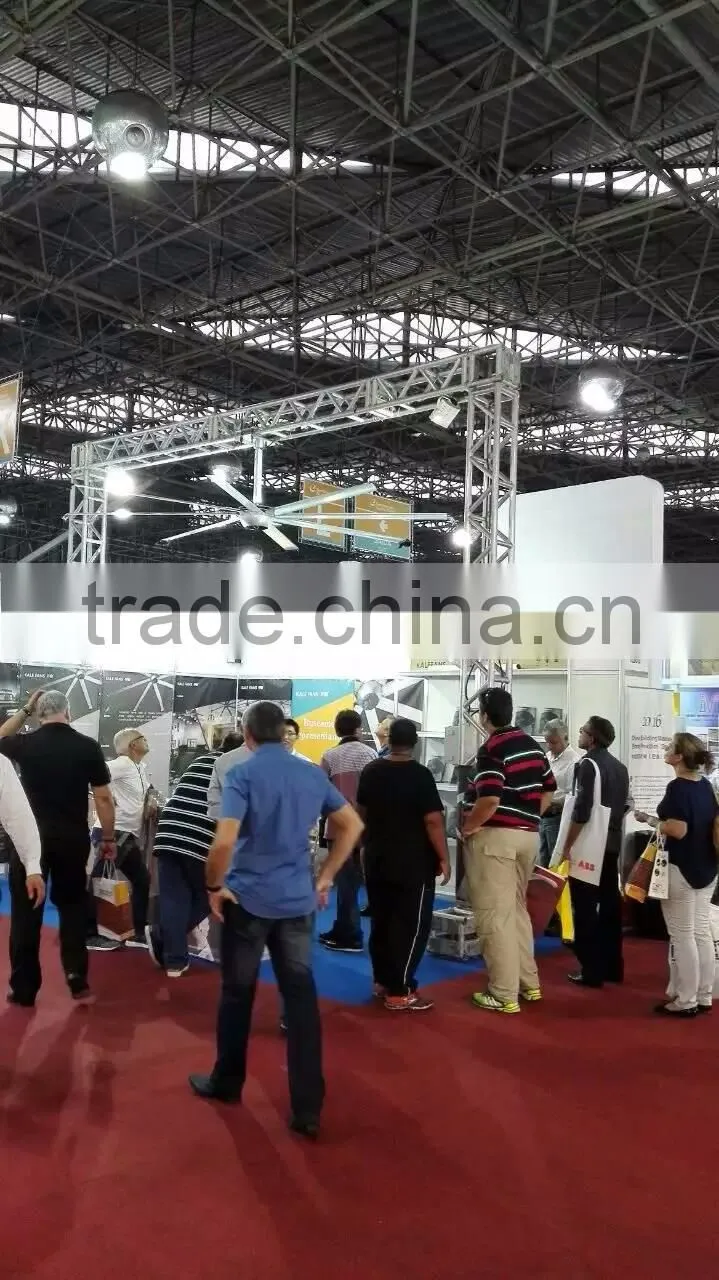

Brand LENZE DC Motor High Efficiency Large Ceiling Fan in Brazil Show
1. Every details we can concern: place order, manufacture, delivery, you just accept them.
2. 3-year warranty for each fan to guarantee
3. Can customize as your reqiurements
4. Free maintenance for the fan
5. 24-hour per day service
Q: Are you the factory?
A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.
Q Where does your fan use in?
A: Ths fan is widely used in commercail spaces to ventilate and cool, like gyms, stadium, fitness clubs, restaurants, halls etc.
Q: Is it used in electrcity?
A: Yes, it's power supply is electricity, but only 400W or less, very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 3-5 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality.
