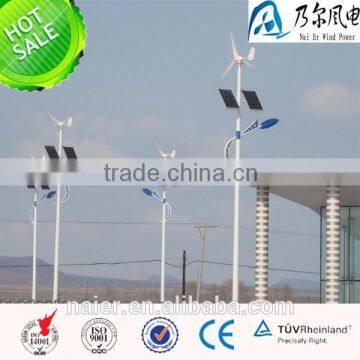

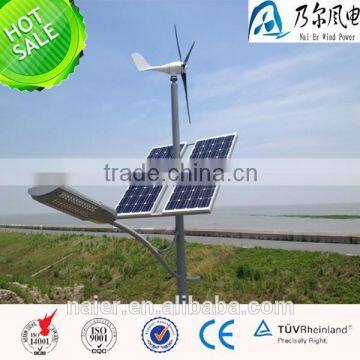

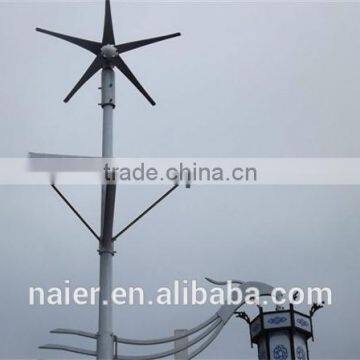

Wind solar street led light system show
Wind turbine parameters
Model | NE-300S |
Rated power | 300W |
Maximum power | 330W |
Rated voltage | 12/24V |
Start-up wind speed | 2m/s |
Rated wind speed | 10m/s |
Survival wind speed | 45m/s |
Top net weight | 10kg |
Wheel diameter | 1.5m |
Number of blades | 3 |
Blades material | Nylon fiber |
Generator type | Three phase permanent magnet AC synchronous generator |
Magnet material | NdFeB |
Generator case | Casting aluminum alloy |
Control system | Electromagnet/wind wheel yaw |
Speed regulation | Automatically adjust windward direction |
Working temperature | -40°C - 80°C |
Design life | 20 y |
Certificates | CE, ISO14001, TUV |
Wind turbine features
1.Low start up speed, high wind energy utilization.
2.Easy installation, tube or flange connection optional.
3.Blades using new art of precision injection molding.
4.Body of casting aluminum alloy, with 2 bearings swivel.
5.Patented permanent magnet ac generator with special stator,effectively reduce torque.
6.Controller, inverter can be matched according to customers’ specific needs.
Wind solar hybrid street light system drawing

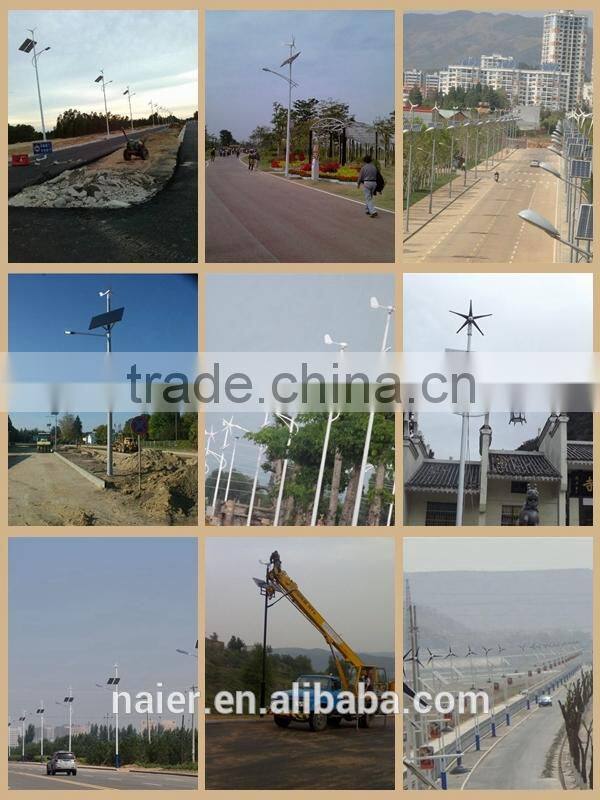

Streetlight projects
Certificates
Standard packing
Certificates
Customers visiting show
Exhibition show
