Home > Products > Steel Sheet/Coil > A Grade Shipbuilding Steel Plate

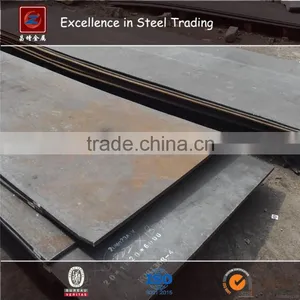

A Grade Shipbuilding Steel Plate
- 5000 Ton / Tons per Month
- Shanghai Port
- T/T
Product Details
Standard: | AISI, ASTM, BS, DIN, GB, JIS | Grade: | Q245r, Q295A, Q295b, 295e, Q345A, Q345b | Thickness: | 1.5-200mm |
Place of Origin: | Shanghai, China | Brand Name: | Baosteel, Masteel, Ansteel, Shousteel, Shasteel | Model Number: | CZ-SP |
Type: | Steel Plate | Technique: | Hot Rolled | Surface Treatment: | Other, Oiled, Picked |
Application: | Ship Plate | Special Use: | Wear Resistant Steel | Width: | 1000-3000mm |
Length: | 1-12m, as You Request |
Product Description
2. Width: 1000-3000mm
3. Length: 1-12M
4. Finish: Q+T, Normalized, quenched, tempering...
Feathers:
1. Size: T: 1.5-200mm, W: 1000-3000mm
2. Material: Q245R, Q295A, Q295B, Q295C, Q295D, Q295E, Q345A, Q345B, Q345C, Q345D, Q345E, Q345R,
Q420A, Q420B, Q420C, Q420D, Q420E, Q460C, Q460D, Q460E, 16Mn, 15MnV, A572Gr50, A633D,
A709Gr50, SM490B, S235J1/S235J2/S235JR, S275J1/S275J2/S275JR, A516 Gr. 60/A516 Gr. 70, ETC
3. Standard: ASTM, ANSI, GB, DIN, JIS, EN, ISO.
4. Technique: Hot Rolled, Annealing
COMMODITY | Steel Plate |
STEEL GRADE | Q245R,Q295A,Q295B,Q295C,Q295D,Q295E,Q345A,Q345B,Q345C,Q345D,Q345E,Q345R, Q420A,Q420B,Q420C,Q420D,Q420E,Q460C,Q460D,Q460E,16Mn,15MnV,A572Gr50,A633D, A709Gr50,SM490B,S235J1/S235J2/S235JR, S275J1/S275J2/S275JR, A516 Gr.60/A516 Gr.70, ETC |
Standard | GB,JIS,DIN,AISI,ASTM |
Thickness | 1.5mm ~ 200mm |
Width | 1000mm-3000mm |
length | below 12000mm |
Surface | Clean, blasting and painting according to customer requirement |
Delivery time | 10-20 days |
Application | Widely used in chemistry,electricity,boiler and vessel manufacture,and could be made into reactor, heat exchange facility,sphere vessel,oil tank,liquid gas storage tank,turbine and other machines |
Shipping | length below 5.8m with 20' container, length below 11.8m with 40' container. or Bulk shipping. |
Mechanical Properties
Grade | Thickness (mm) | Yieldpoint (Mpa) | Tensile Strength (Mpa) | Elongation (%)≤ | Impact test | Cold Bend Test | |||
Temperature (0C) | Average AKV A KV/j | b=2a 1800 | b=5a 1200 | ||||||
lengthways | crosswise | ||||||||
≥ | |||||||||
A | ≤50 | 235 | 400~490 | 22 | / | / | / | d=2a | / |
B | 0 | 27 | 20 | / | d=3a | ||||
D | -10 | ||||||||
E | -40 | ||||||||
AH32 | ≤50 | 315 | 440~590 | 22 | 0 | 31 | 22 | / | d=3a |
DH32 | -20 | ||||||||
EH32 | -40 | ||||||||
AH36 | ≤50 | 355 | 490~620 | 21 | 0 | 34 | 24 | / | d=3a |
DH36 | -20 | ||||||||
EH36 | -40 |
Classification by use
1. the bridge plate
2. Boiler plate
3. the shipbuilding steel plate armor plate
4. the car plate
5. roof
6.structure of steel plate
7. electrical sheet steel, silicon steel sheet
8. spring plate
9. the other
Application:
Construction plate,
boiler plate,
container plate,
shipbuilding plate,
machinery manufacturing,
container manufacturing.
Categories | Minerals & Metallurgy |
Standard | GB/JIS/EN/ASTM/BS |
Material | Q195,Q215,Q235B,Q345B S235JR/S235/S355/S355JR SS400/SM400A/SM400BA36 |
About Us/Supplier Types | 1.Trade Assurance,with Trade Assurance,you'll enjoy: *100%product quality protection *100% on-time shipment protection *100% payment protection for your covered amout 2.We accept Transactions via 3.Wholesale low MOQ 4.Assessed supplier 5.Onsite checked 5.A&V checked 6.On-time shipment |
Packing | ||
Size&Customize | Any size we accept,follow your size and grade manufacture it (large quantity)OEM welcomed. |
MOQ(small Qty accept) | 1-5-10-50-100-200-500-1000-2000-3000 tons depend on different size,itme,material grade and technique.MIN and small quantity accept |
Price(competitive price) | We have copperative factory,ensure lowest price and good quality and best service for you, we best service 24 hour online. |
Production line | sample : stock goods only within 2 days send out samples for you. other process sample time:2-7days,mass good time:7-15days , biggest order depend quantity |
Warm tips | More details,our advantage,package ways,compatitive price etc pls check next details and contact us(Phone&whatsapp:+8613651652591 Tel:+86-21-66873700802 Skype:Chelsea Shao )It's our honor to service for you always. |
1.We are factory,can supply a wide range of steel products(any size,any quantity,anytime) 1)The packers skilled more 10years experience 2)We have strong after sale service team best service for you 3)We accept min order and interational standard with sample and batch for your many choose get client and market. |
2.Low MOQ:small quantity we accept it,it can meet your business very well,EG: 1ton,3.tons,5tons,10tons,20tons different quantity for your choose.We believe that our price and quanlity will be give you an edge over your competitors.And you will be winner in this business in your country. |
3.Low Prices:We try our best to make sure our prices are the most compatitive anywhere.We can get you a better deal almost every time.We are proud to help ou save money on the products you want. |
4.Good Quality and we passed CE certification |
5. Fast Delivery&Cheap shiping cost and best service team 1)We have larger standard size steel materials.When you choose item and and the size,we can delivery very fast only three days. 2)We have ourself forwrder and we have big discount from forwarder(long contract).We have big warehouse for your order. 3)We have professional sales team for you service 24 hour online.Also more than 9 years export experience all over the world. |
Check below for more information on placing an order:
1. Inquiry-Professional quotation. |
2. Confirm the price,size,grade,length, lead time, technique, payment term etc. |
3.our sales send the Proforma Invoice with our seal. |
4. Customer make the payment for deposit and send us Bank receipt. |
5. Initial Production Stage-Inform the clients that we have got the payment,And will make arrange the production & inform the estimated time |
6. Middle Production-send photos to show the production line which you can see your products in.Confirm the estimated delivery time again. |
7. End Production-Mass production or stocks,products photos will send to you for approval. You can also arrange the third party Inspection . |
8. Clients make payment for deposit and Ship the goods , Inform the tracking number and check the status for clients. |
9. Order can be say “finish” when you receive the goods and satisfy with them, pay the balance too. |
10. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better . |
