Wood Crusher
♦ Wood Crusher's Applications :
1).Henan Libo Mining Machinery produce's high efficient Wood Crusher is an energy saving Wood Crusher, High efficient Wood Crusher is a new type Wood Crusher, Wood Crusher is a special equipment of producing wood chip, shaving or sawdust.
2). Wood chip crusher can crushing branches that 1 to 25 cm's branch, fork, can also be used for bamboo, straw, corn stalks, sorghum stalk fiber stem shape materials.
3).Widely used in paper making, edible fungus, mechanism charcoal, shaving board, sawdust board, high density board, MDF, etc.
♦ Wood Crusher's Components :
Wood Crusher is component of the base, the feed inlet, cutter, chassis, chipper blades, crushing hammer, screen mesh ect.

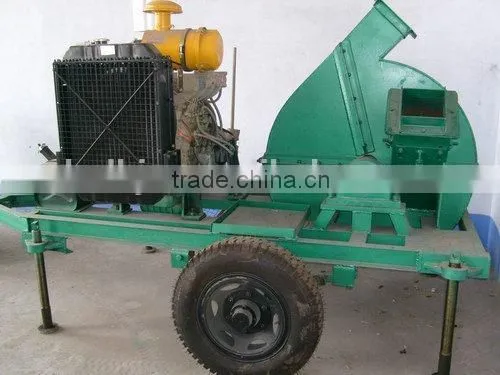

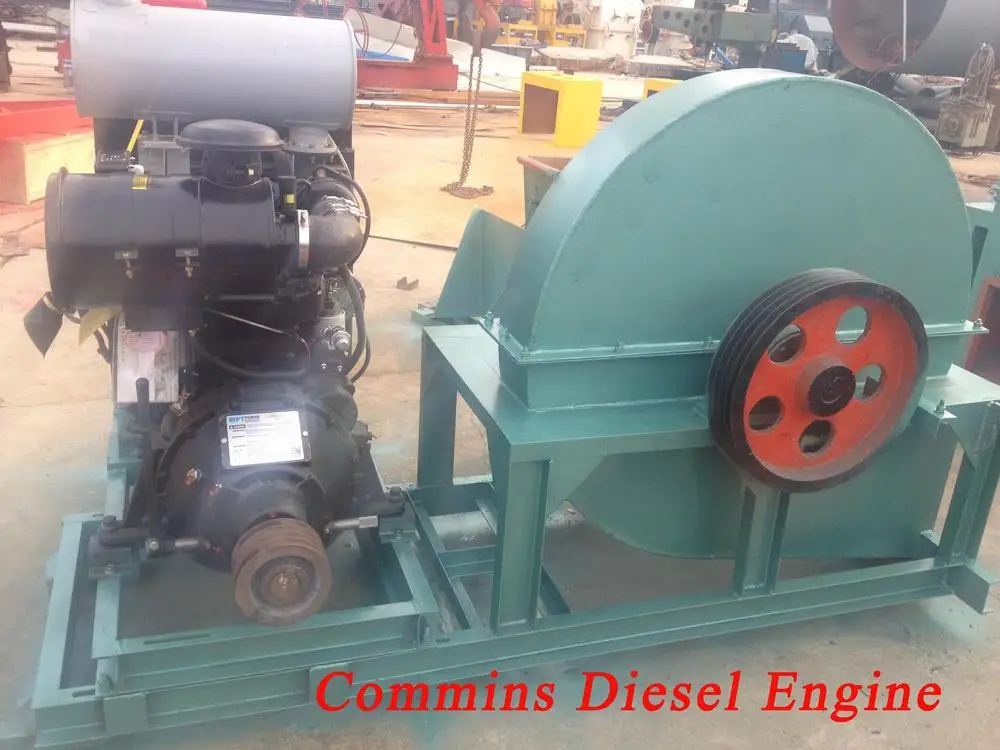

This chipper can be equipped with electric motor or diesel engine.
♦ Wood Crusher's Features :
1.High efficient Wood Crusher(Wood Crusher) is an ideal machinery equipment before production of wood chip, shaving or sawdust.
2.It can processed into wood chips once a time such as wood, branch fork into wood chip, shaving or sawdust.
3.It has features of low investment, low energy consumption, high productivity, good economic, convenient to use and repair etc.
4.It is the special equipment for producing edible fungus production or shaving board, sawdust board high-density plate raw material.
♦ Wood Crusher's Main Technical Parameters :
Specification |
420 type |
600 type |
700 type |
800 type |
950 type |
1150 type |
1410 |
Cutter diameter(mm) |
400 |
600 |
700 |
800 |
900 |
1000 |
1400 |
Blade number(piece) |
3 |
3 |
3 |
4 |
4 |
4 |
4 |
Feed diameter(mm) |
150×160 |
180×150 |
190×200 |
200×200 |
230×250 |
300×330 |
400×400 |
Rotation speed(r/min) |
600 |
600 |
600 |
550 |
550 |
600 |
600 |
Motor power(kw) |
7.5 |
15 |
18.5 |
30 |
37 |
55 |
90 |
Capacity(t/h) |
1-2 |
2-3 |
3-5 |
5-6 |
6-8 |
8-12 |
12-20 |
Discharging size(mm) |
According to the customers requirements,wood crusher can replace screen to adjust different fineness. |
||||||

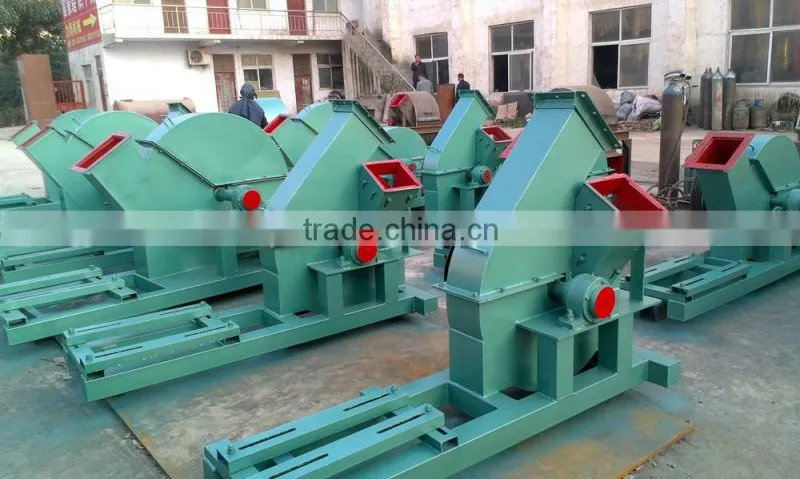

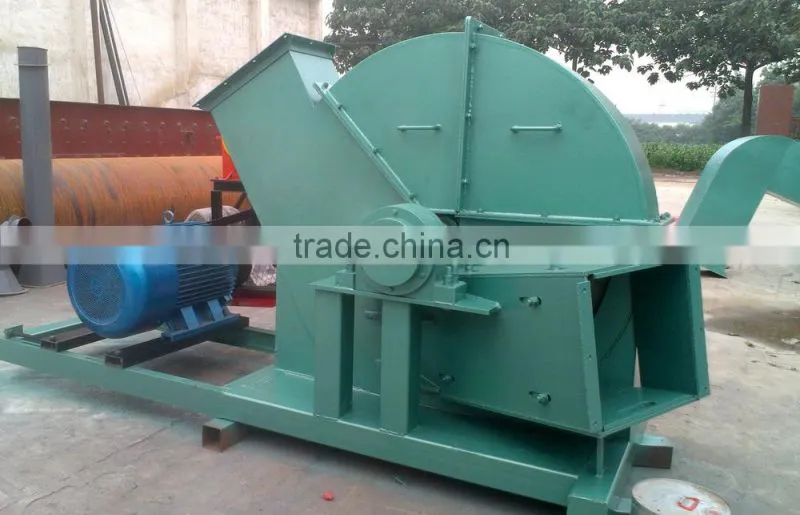

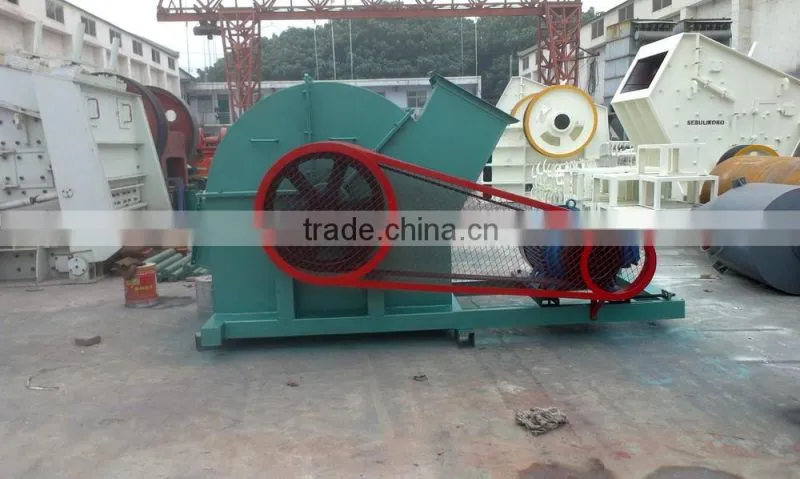

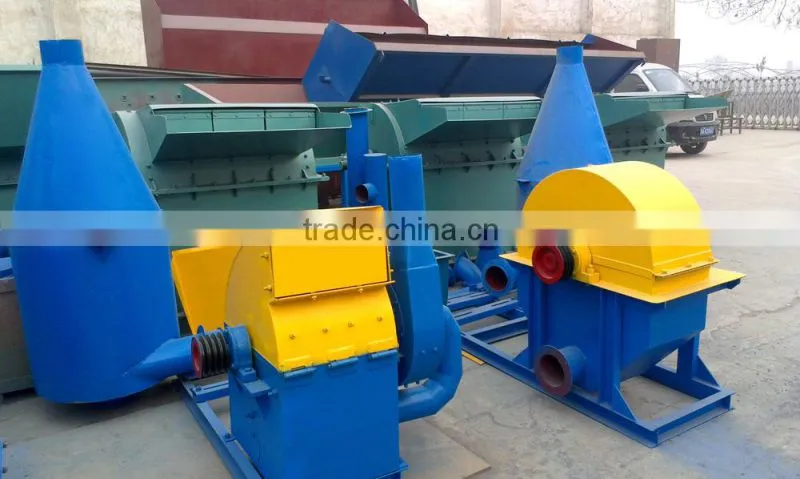

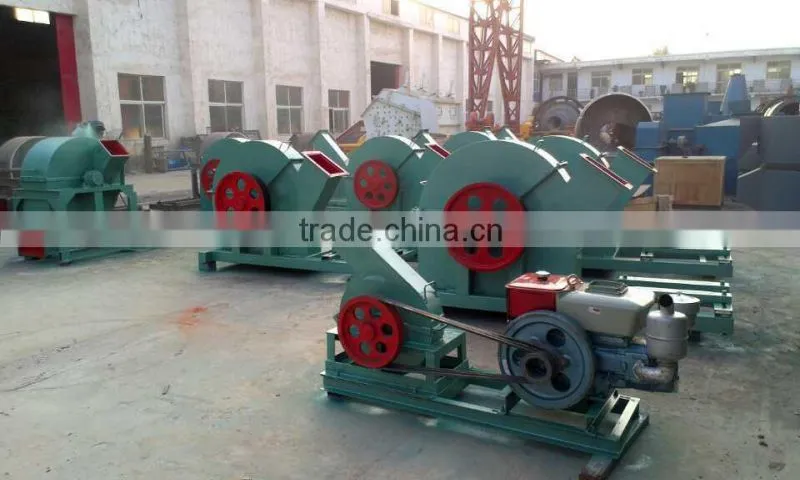

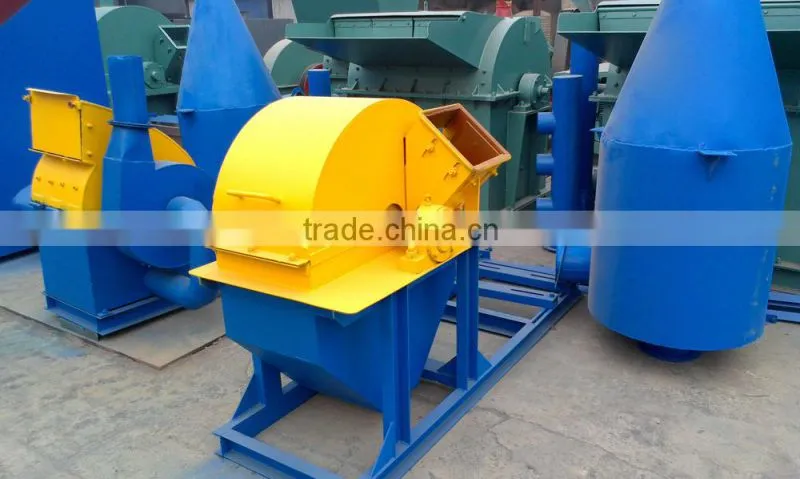

♦ Wood Crusher:

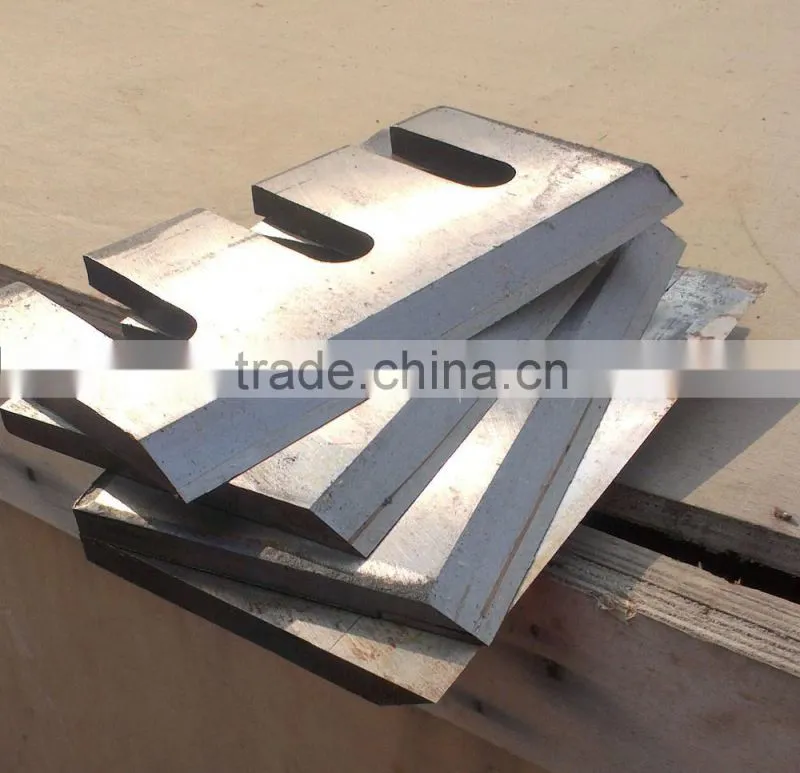

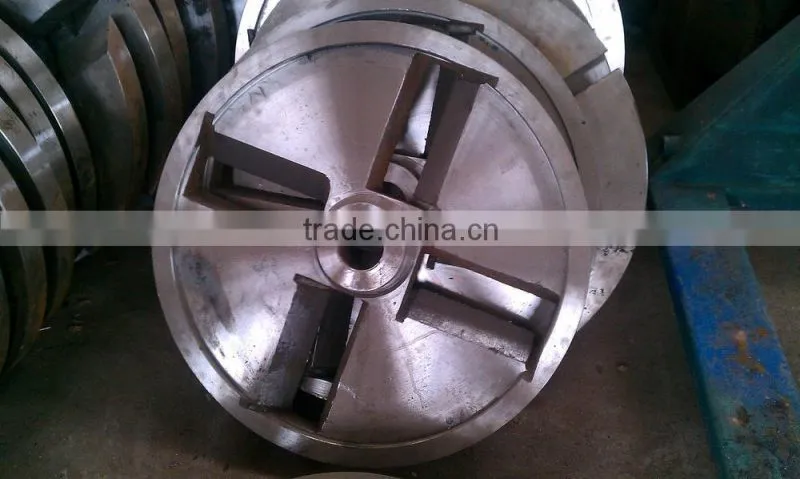

♦ Wood Crusher's Blade:
♦ Wood Crusher Final Material Finished Product :
If You Are Interested In Our Product, Please Contact Me, Welcome To Visit Our Factory Any Time !
Name : Bob
Tel :86+ 13526691930
Skype : zerozzed
QQ : 2816737070
