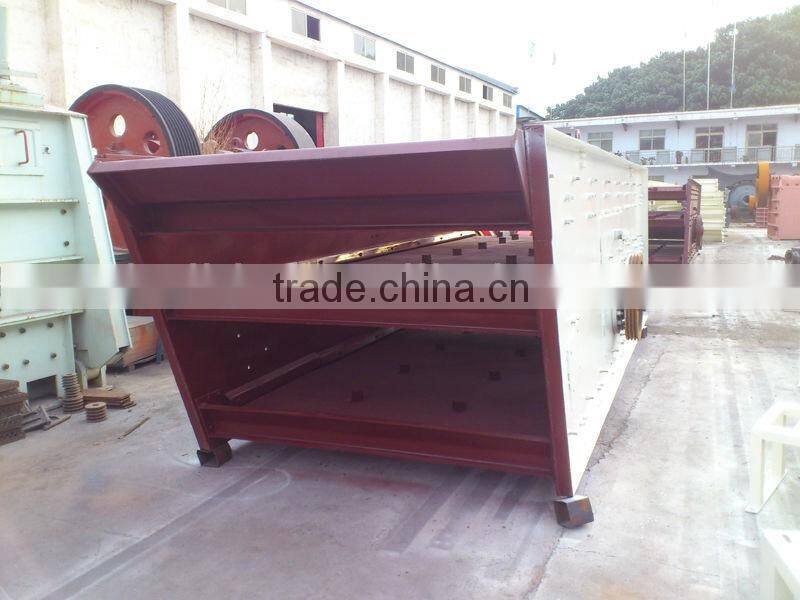

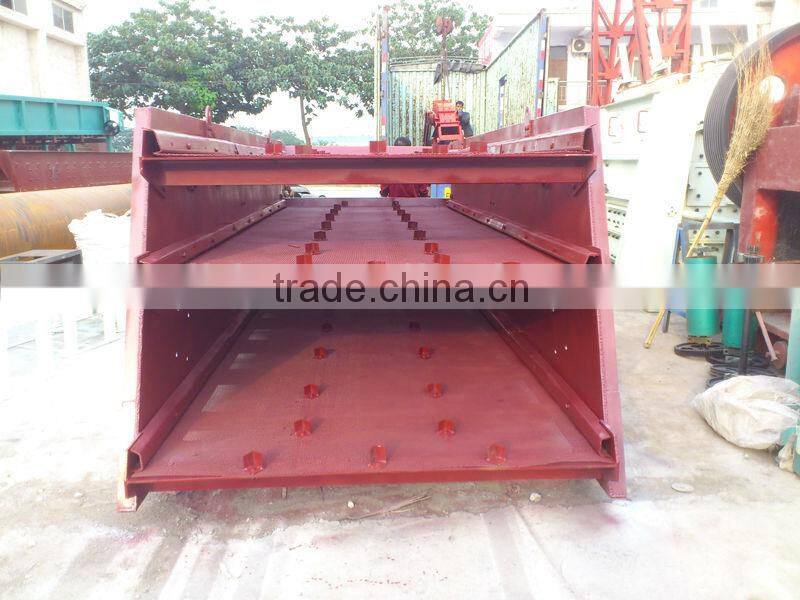

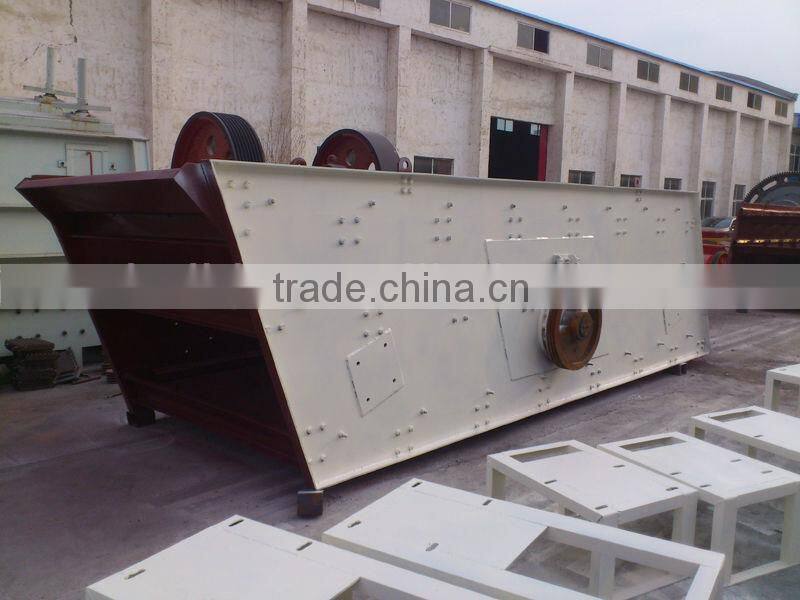

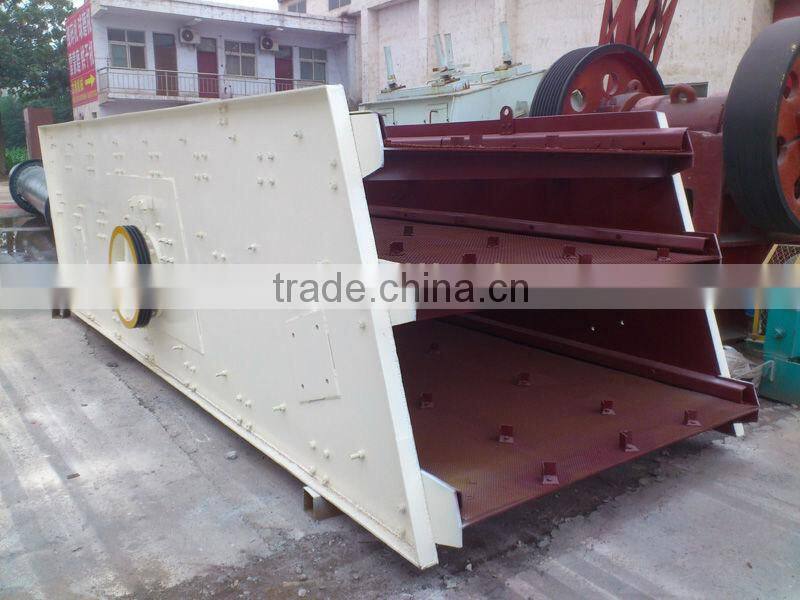

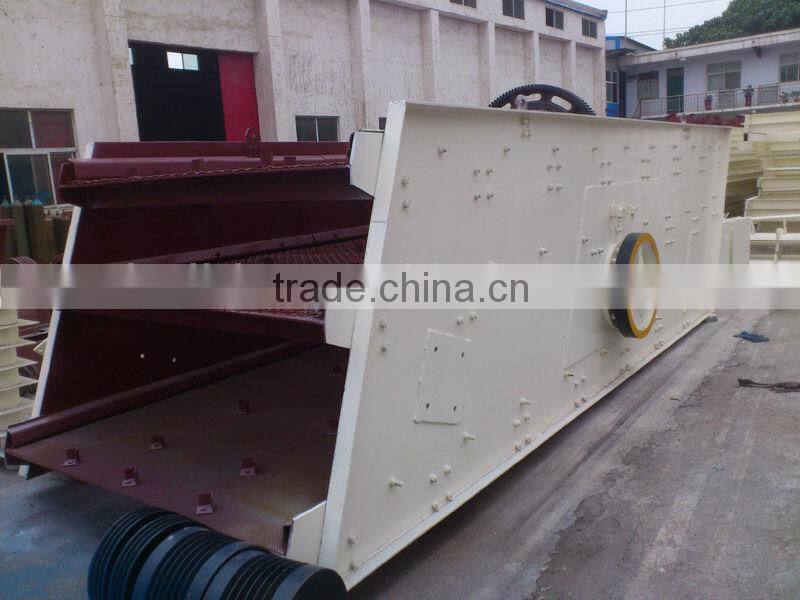

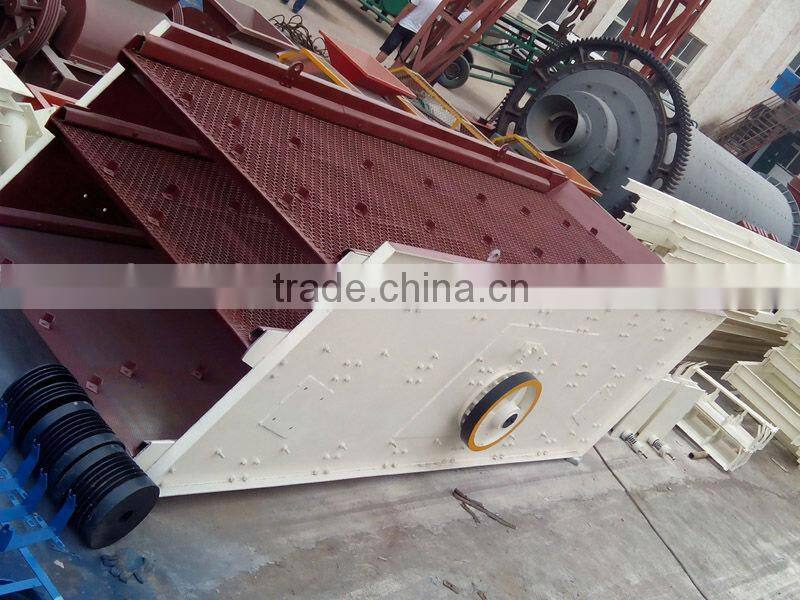

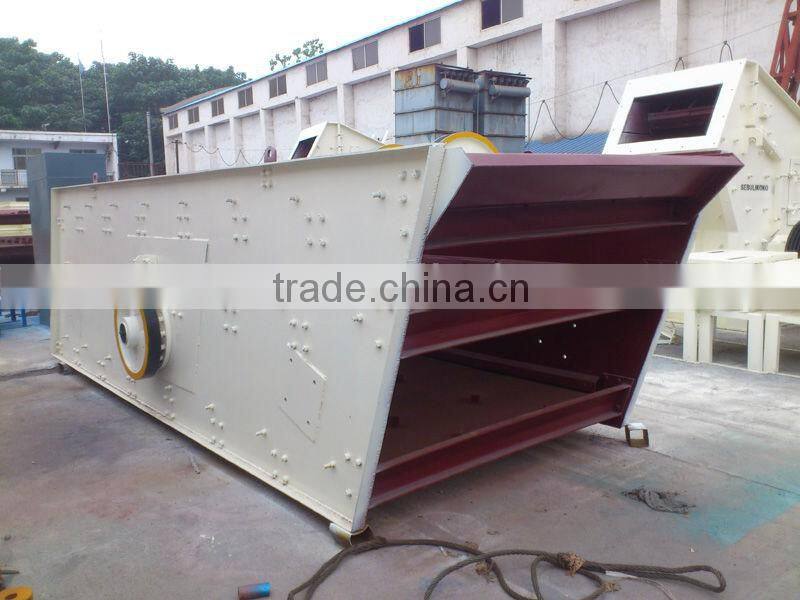

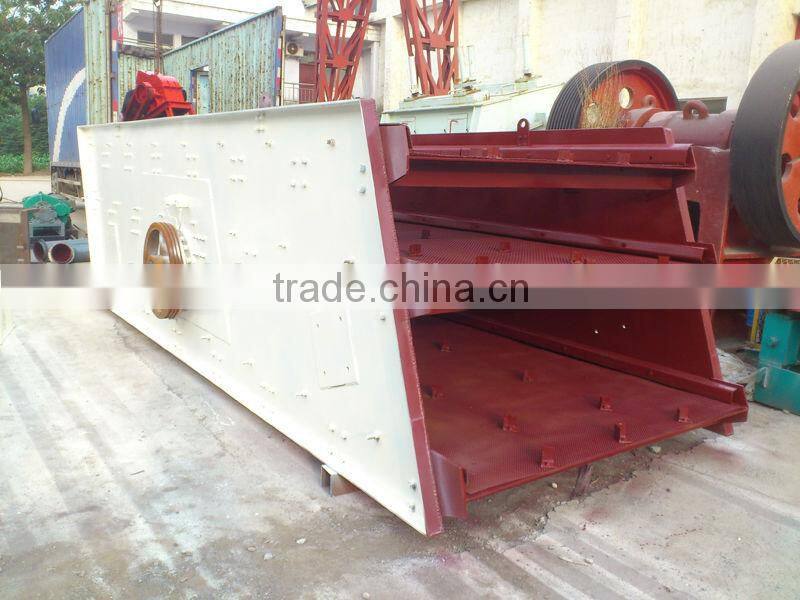

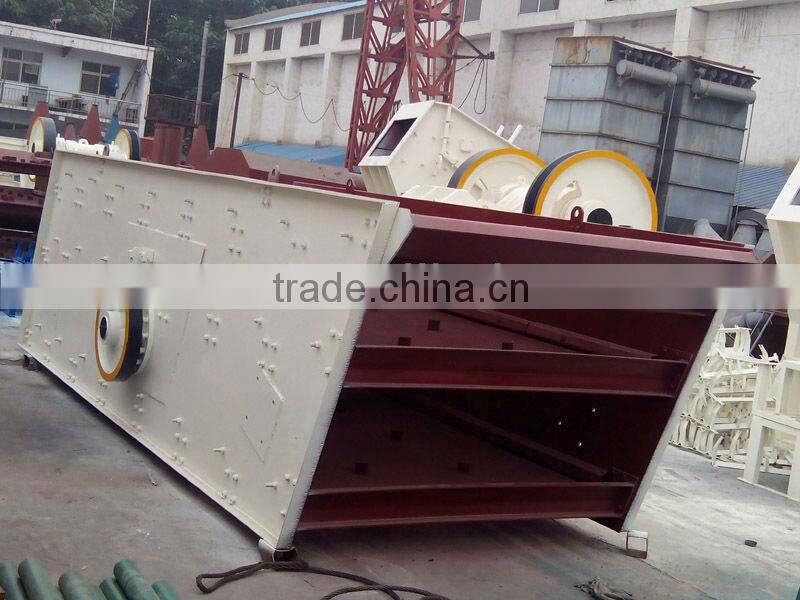

Hot Selling High Frequency 3YK1848 Small Oscillating Screen Vibrating Screen

Specifications

Oscillating Screen
1.Low noise, easy maintenance and operation
2.high screening efficiency
3.easy maintenace
4.cheap,factory



High Frequency 3YK 1848 Small Oscillating Screen

General introduction of oscillating screen

Oscillating screen specializes in screening and separating stones in the quarry. It is also used in coal processing, mine processing, building materials, power and chemical industries to classify the materials.



Our YK series are the latest types in China. Having reached the world advanced technical levels, the screening machine designed and made by our company are of high precision and efficiency. They are increasingly popular in the customers.



Operating principle of oscillating screen

Oscillating screen because the screening box moves on a circular locus. The vibration exciter, powered by the motor connected to wedge belts, rotates at a extremely high speed, and makes the screening box move. Thus, materials on the screen will move and the particles smaller than the screen mesh fall. In the multiple-layered machine, the feed is introduced to the top coarse screen, the undersize falling through to the finer screen. Thus a range of sized fractions can be produced by this machine.



The usage of oscillating screen

 It should start when there is nothing on the screen surface, and should avoid start the machine with materials, when the material running steady, then can feed. Stop feeding before stop the machine, and keep there is no material on the surface then stop the machine. Observe the operation of the machine when it is running. If there are abnormal movement or unusual sound, we should stop the machine and examine it, find the causes, and eliminate the troubles.



 Main Technical Parameter of best selling oscillating screen



type	screen area	screen area(m3)	screen mesh(mm)	max feed size(mm)	capacity( m3 /h)	vibrating frequency(r/min)	double amplitude(mm)	power(kw)	overall dimensions(L*W*H)	weight(excluding elec motor)(kg)	installtion slope(°)	screen mesh(mm)
2YK1235	2	4.2	5-50	200	35-180	970	7	5.5	3520*1740*2350	3600	15	1200*3500
2YK1245	2	5.4	5-50	200	35-206	970	7	11	4872*2610*2520	4320	15	1200*4500
3YK1245	3	5.4	5-50	200	35-206	970	8	11	5155*2686*3754	4460	20	1200*4500
YK1535	1	5.25	5-50	200	34-200	970	8	11	4684*2971*2404	3355	15	1500*3500
3YK1535	3	5.25	5-50	400	34-200	970	8	15	4719*3106*3273	5710	20	1500*3500
YK1545	1	6.75	5-50	400	44-258	970	8	11	4806*2911*2076	3900	20	1500*4500
2YK1545	2	6.75	5-50	400	44-258	970	8	15	4650*2820*3500	4370	20	1500*4500
3YK1545	3	6.75	5-50	400	44-258	970	8	15	5650*3000*3800	5832	15	1500*4500
3YK1548	3	7.2	5-50	400	47-275	970	7	15	5011*3986*2653	6070	20	1500*4800
4YK1548	4	7.2	5-100	200	47-275	730	8	18.5	4800*2947*4045	7090	20	1500*4800
YK1848	1	8.8	5-100	400	56-330	755	11	15	4904*3020*2943	7122	20	1800*4800
2YK1848	2	8.8	5-100	400	56-330	750	11	15	4802*3009*2860	6189	20	1830*4800
3YK1848	3	8.8	5-100	400	56-330	970	7	22	5066*3986*2969	6935	20	1800*4800
2YK1854	2	9.72	5-100	400	63-586	970	7	22	5200*3400*3911	7602	20	1800*5400
3YK1854	3	9.72	5-100	400	63-586	970	7	22	6200*3326*3593	8640	15	1800*5400
4YK1854	4	9.72	5-150	200	32-310	970	8	30	5447*3417*4266	10530	15	1800*5400
YK2154	1	11.3	5-100	400	73-683	730	8	18.5	5400*3547*2750	5269	20	2100*5400
2YK2154	2	11.3	5-100	400	73-683	730	8	22	5400*3650*3856	7851	20	2100*5400
3YK2154	3	11.3	5-100	400	73-683	730	8	22	5590*3600*3900	9857	20	2100*5400
2YK2160	2	12.6	5-100	400	81-720	970	8	30	6375*3821*3707	9240	20	2100*6000
3YK2160	3	12.6	5-100	400	81-720	970	7	30	6453*3821*4907	12757	20	2100*6000
4YK2160	4	12.6	5-100	450	66-720	740	8	45	6455*4064.5*5367	15125	20	2100*6000
2YK2280	2	17.6	5-150	400	90-750	730	8	30	8000*3835*4747	10180	20	2200*8000
YK2460	1	14.4	5-150	400	150-810	730	8	22	6050*4035*3005	6200	20	2400*6000
2YK2460	2	14.4	5-150	400	150-810	730	8	30	6050*4035*4087	8013	20	2400*6000
3YK2460	3	14.4	5-150	200	450-650	740	8	37	6050*4234*4594	10762	20	2400*6000
4YK2460	4	14.4	5-150	200	450-650	740	8	45	6050*42665073	12786	20	2400*6000
