Specifications

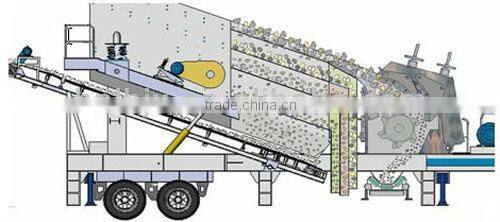

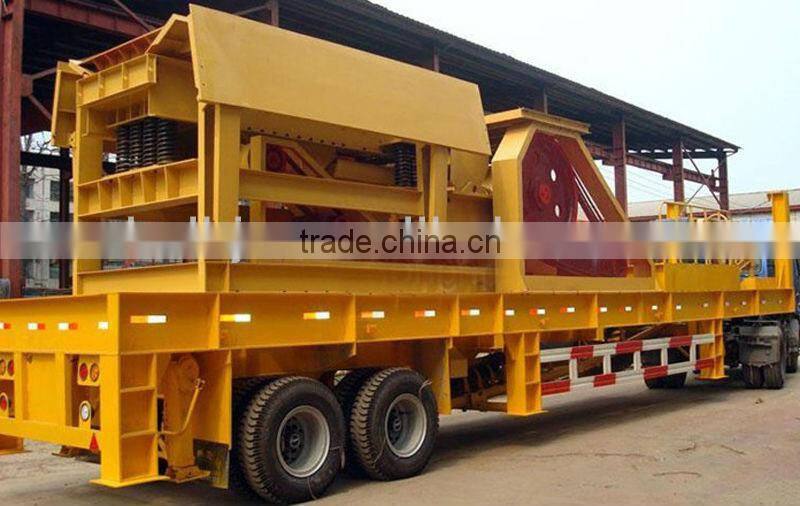

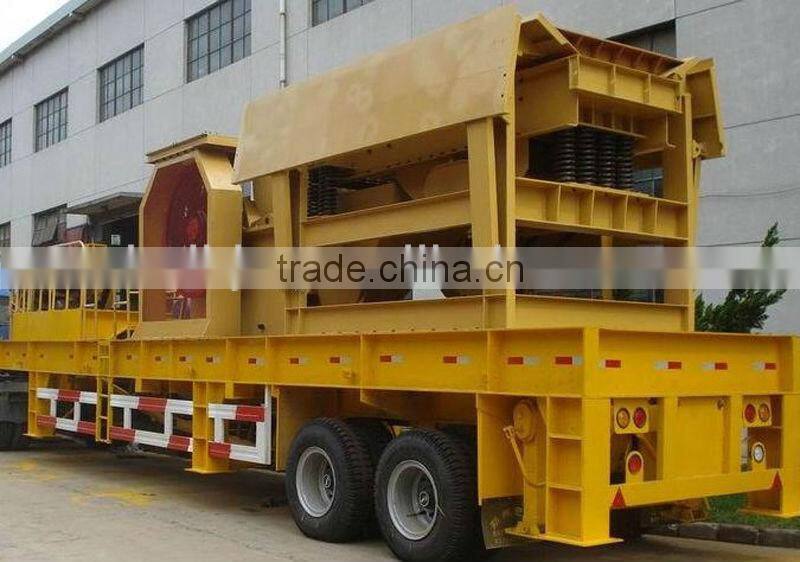

Portable Crusher Station1.Supply complete set of portabl crusher station
2.China manufacturer, factory
3.Cheap, high-yieled
Features of Portable Crusher Station
Flexible combination, great adaptability;
Stable performance, convenient to maintain;
Easy to move, reduce the cost of transporting materials
Introduction of Portable Crusher Station
We can offer different design and combination based on the customer’s requirements. For different hardness of stone, feeding size, output size, capacity and so on.
Portable crusher station produced is a kind of new developed stone crushing equipments, which expand the concept of coarse crushing and fine crushing. To remove the obstacles brought by the crushing places, surroundings and the complex basic configurations is the designing idea as well as the primary task of portable crusher station.
Main Technical Parameter of Portable Crusher Station
Model |
LD-PF1210 |
LD-PF1214 |
LD-PF1214 |
LD-PF1315 |
Feeder |
GZD-960x3800 |
GZD-960x3800 |
GZD-960x3800 |
GZD-1100x4200 |
Impact Crusher |
PF1210 |
PF1214 |
PF1214 |
PF1315 |
Main Conveyor |
B800x8.5 M |
B800x8.5 M |
B1000x9 M |
B1000x9 M |
Height of Main Conveyor (mm) |
3200 |
3200 |
3500 |
3500 |
Side Conveyor(Optional) |
B500x3.5 M |
B500x4 M |
B500x4 M |
B500x4 M |
Height of Side Conveyor (mm) |
2800 |
2800 |
2800 |
3000 |
Generator (KW) |
200 |
250 |
250 |
300 |
Transport Length (mm) |
12200 |
12200 |
12200 |
13300 |
Transport Width (mm) |
3200 |
3200 |
3200 |
3200 |
Transport Height (mm) |
3650 |
3650 |
3650 |
4500 |
Total Weight (t) |
41.3 |
48.5 |
46 |
57.5 |
