Specifications
Rolling Dryer1.cheap dryer, rotary dryer
2.wood dryer drum drier
3.save energy 60%
4.dry humidity from 68%-3%

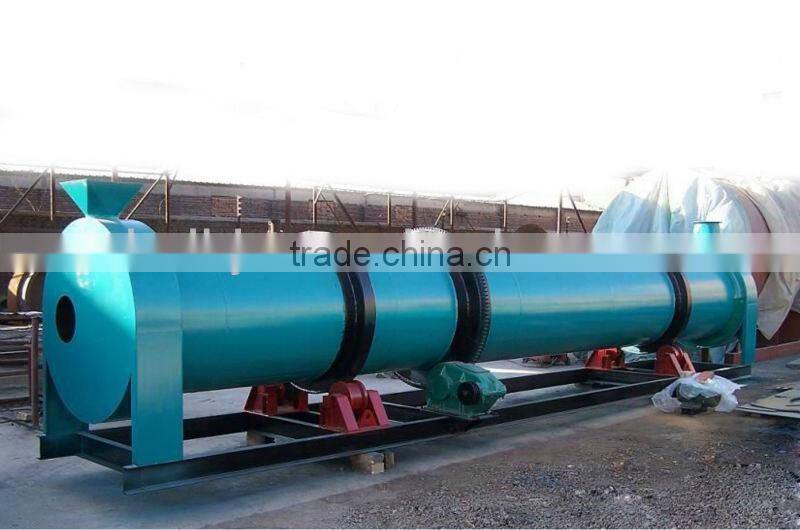

Energy Saving Rolling Dryer
Rolling Dryer is suitable for drying granules with heavy specific gravity in chenmical industry, mine industry,metallurgy industry etc

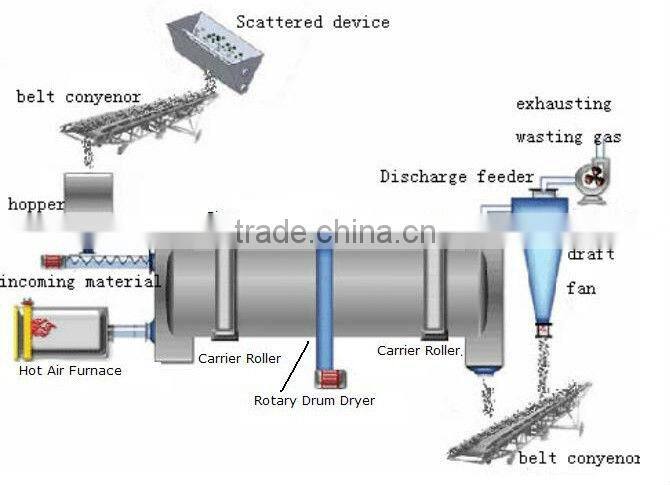

Structure of Rolling Dryer
1 hopper
2 dosing machine
3 incoming material feeder
4 heating resources
5 drying roller
6 discharge feeder
7 cyclone
8 draft fan
9 belt conveyor
10 variable motor
11 reduction gear
Rolling Dryer Advantages
1.reasonable structure
2.high capacity
3.low consumption
4.cheap
5.europe standard
6.Chinese supplier, China factory
Working Principle of Rolling Dryer
1 The material was sent to hopper by belt conveyor or bucket elevator and then by the feeding machine of hopper through charging pipe into the feeding side.
2 The slope of feeding pipeline from rolling dryer should bigger than the materials' natural dip angle, in order to sand smoothly flow into the dryer machine.
3 The drum of rolling dryer is a rolling drum which is slightly obliquely with the horizontal line. Add the materials from the higher side, heating body goes into the lower end, form countercurrent contact with materials, also exists the heat body and materials together concurrent flow into the barrel. Along with the cylinder rotating, the materials move to the lower end by gravity.
4 During the moving process of rolling dryer, wet materials in the cylinder directly or indirectly got heat from the heating body, make wet materials to dry, then in the discharging end the materials were sent out by belt conveyor or screw conveyor.
Main Technical Parameters of Rolling Dryer
| type | transfers barrel diam(mm) | transfers barrel length(m) | gradient(°) | rotational speed(r/min) | weight(t) | power(kw) | volume(m³) |
| Φ0.6*8 | Φ600 | 8 | 3°-5° | 8 | 5.1 | 4 | 2.26 |
| Φ0.8*10 | Φ800 | 10 | 3°-5° | 7.2 | 6.9 | 4 | 5.02 |
| Φ1.0*10 | Φ1000 | 10 | 3°-5° | 6.73 | 7.5 | 5.5 | 7.85 |
| Φ1.2*12 | Φ1200 | 12 | 3°-5° | 5.8 | 13.1 | 11 | 13.31 |
| Φ1.5*12 | Φ1500 | 12 | 3°-5° | 4.8 | 22.3 | 15 | 21.2 |
| Φ1.8*14 | Φ1800 | 14 | 3°-5° | 3.2 | 45.8 | 30 | 48.22 |
| Φ2.2*18 | Φ2200 | 18 | 3°-5° | 3 | 50.3 | 37 | 70.43 |
| Φ2.4*20 | Φ2400 | 20 | 3°-5° | 2.83 | 78.4 | 45 | 90.43 |
| Φ2.8*24 | Φ2800 | 24 | 3°-5° | 2.59 | 97 | 75 | 147.8 |
Henan Libo Mining Machinery Co.,Ltd is a joint-stock enterprise that produces industrial forming R&D, production and sales into an integral system. Our main products are crushing plans,grinding mill machines,drying equipments and other mining machines.
