SF6 Gas Insulation HV AC Test Transformer fo High Voltage Hipot Test
US$ 20,000 - 500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
FSHV
Model Number:
YDSW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HV AC Voltage Test System With SF6 Gas Test Transformer for GIS Switchgear High Voltage TestingUS$ 20,000 - 500,000MOQ: 1 Set -
HV AC Voltage Test System With Gas Test Transformer for High Voltage Dielectric TestingUS$ 20,000 - 500,000MOQ: 1 Set
-
Encapsulated SF6 Gas Insulation Test Transformer for HV AC PD Testing Quality ChoiceUS$ 20,000 - 500,000MOQ: 1 Set
-
Encapsulated SF6 Gas Insulation AC Test Transformer Systems for GIS GIL High Voltage TestingUS$ 20,000 - 500,000MOQ: 1 Set
-
PD Free Encapsulated SF6 Gas Insulation AC Test TransformerUS$ 20,000 - 500,000MOQ: 1 Set
Place of Origin
China
Brand Name
FSHV
Model Number
YDSW
Power
Electronic
Usage
Other, HV AC Test
SF6 Gas Insulation HV AC Test Transformer fo High Voltage Hipot Test
Product Description

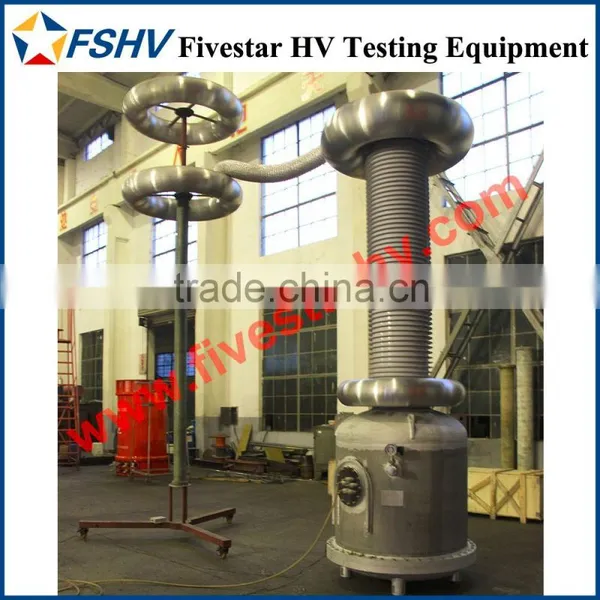

YDSW series encapsulated SF6 gas insulation AC test transformers are especially designed for factory and field test of metal-clad switchgear (GIS), and substation equipments on-site testing. These transformers can be flanged directly to GIS, they make testing of such installations possible without feeding them through an air-SF6 bushing. If equipped with output bushing, they can also be used for AC voltage test of other HV apparatus.
In the factory, these transformers allow to test sub-assemblies and components directly in the manufacturing line, thus avoiding transportation to a central test facility, and extra handling. Particularly they are suited for on-site tests of GIS after assembly.
Compared to conventional oil insulation AC test systems, they are lighter and smaller, only about 1/6 height and 1/7 weight, also the merits of encapsulation remain effective during tests which is essential for PD testing.
|
|
|
| 300kVA 300kV | 800kVA 800kV | 1250kVA 1250kV |
Application
AC test transformer systems are conventional AC high voltage test equipments, mainly designed for medium capacitance testing objects, particularly for tests requiring stable voltage even if the load changes under voltage (corona, wet & pollution tests).
Especially when the load is inductive (like inductive voltage transformers), tests need resistive current, AC test transformer systems are the only choice.
Configuration
| Essential | Optional |
| Regulating transformer | Isolation transformer |
| AC test transformer | Compensation reactor |
| Protect resistor | Power filter |
| Capacitor divider | HV filter |
| Control and measure system | Electronic fast protect device |
| Other configuration is possible upon request | |

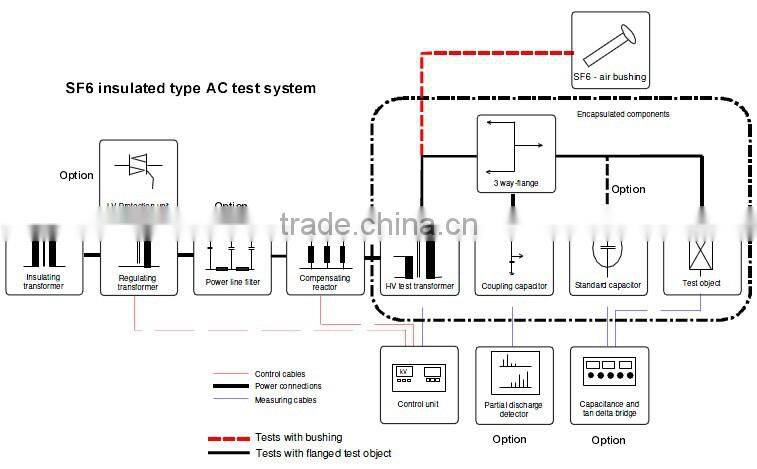

Principle
Test transformer steps up the voltage coming from the regulating transformer. The controls act on the regulating transformer to adjust precisely the input voltage of the transformer and thus the test voltage.
If needed, a compensating reactor can be connected between the regulating and the test transformers and compensates the capacitive power required for the test object. This way, the regulating transformer and power line filter ratings can be kept small, and the requirements for the power supply are reduced.
