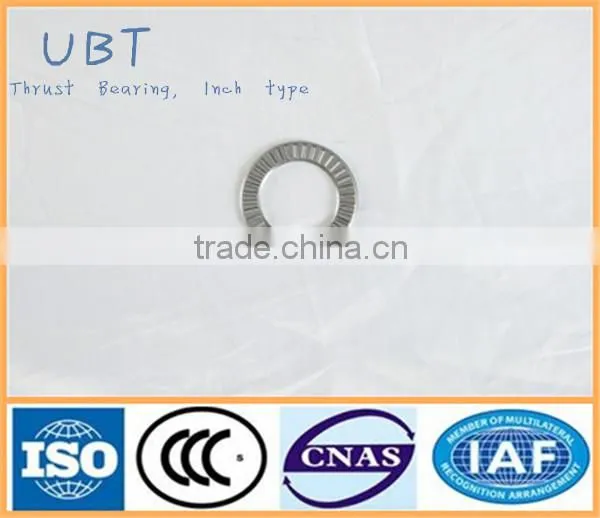

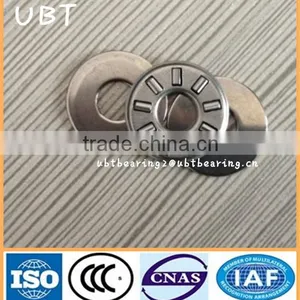

Inch size flat bearing TC815 thrust needle roller bearing
Thrust bearings, Assemblies, Washers

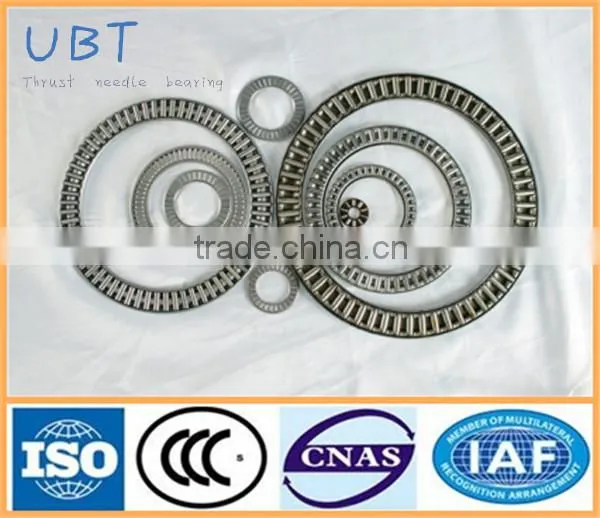

Overview: Thrust needle roller and cage assemblies are complements of small diameter needle rollers, arranged in a spoke-like configuration. Needle rollers are equally spaced by means of a cage, its web section separates the rollers and provides guidance to keep them tracking in an orbital path. The purpose of these assemblies is to transmit a thrust load between two relatively rotating objects while greatly reducing friction.

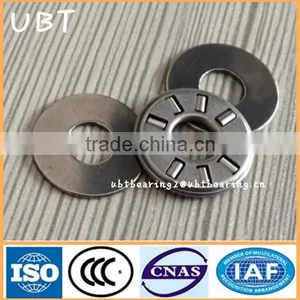

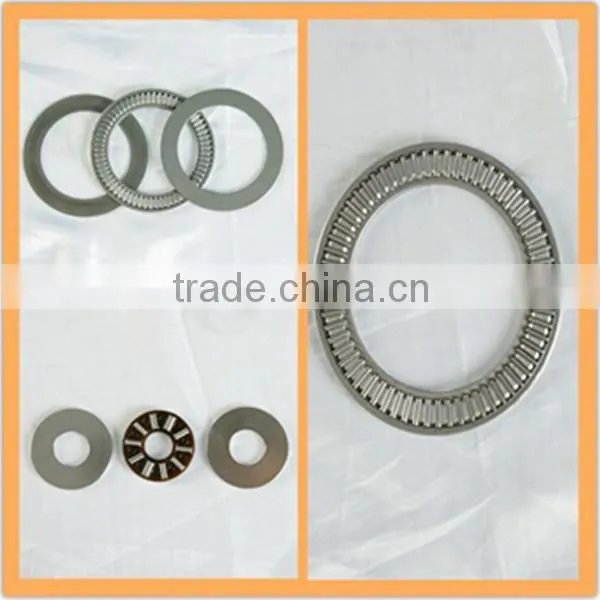

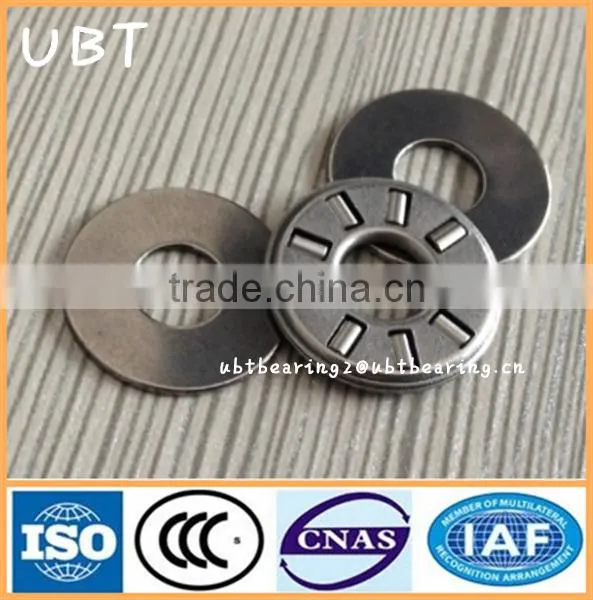

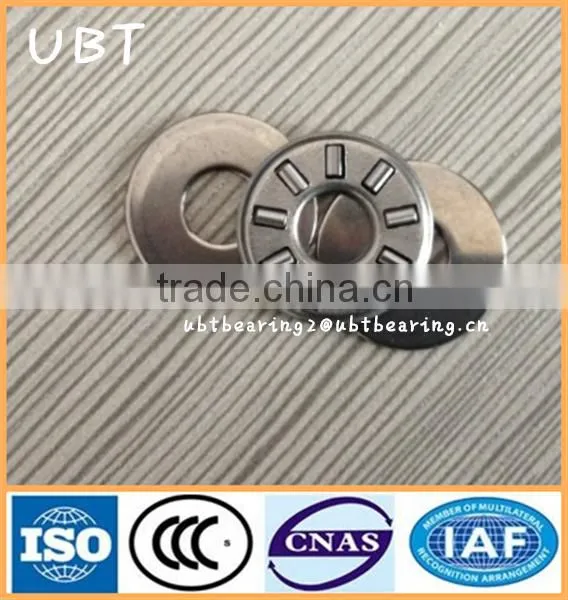

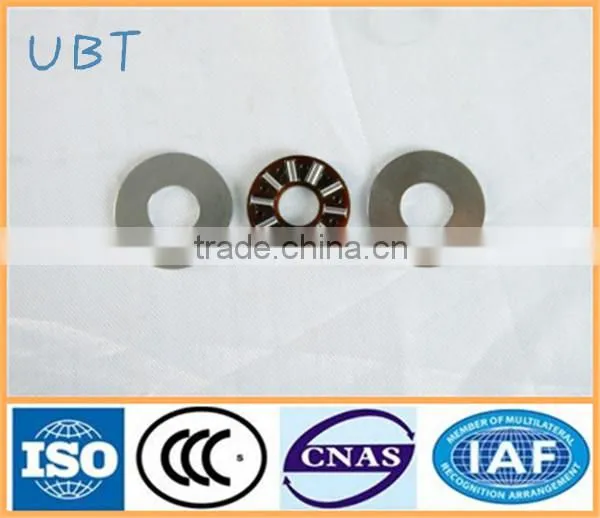

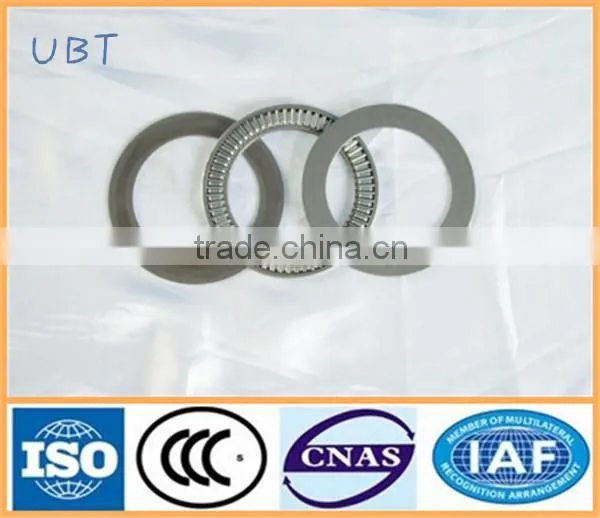

Thrust needle roller and cage assemblies also can be unitized with lipped washers to serve as raceway surface for the needle rollers. Washers can be supplied separately or can be mechanically unitized to the thrust needle roller and cage assemblies for ease of handling.
* Size: 5mm—240mm (0.1969in.—9.4488in.)
* Merkets: Automotive automatic and manual transmissions, automotive accessories (compressors, steering gears, etc.) agricultural and construction equipment
* Features: One-way fool-proof assembly features, anti-rotation locking features and lubrication flow enhancements
* Benefits: High-speed performance and application flexibility
TC815 Axial Needle Roller Bearings are fitted with a form-stable cage to reliably retain and guide a large number of needle rollers. The very small diameter deviation of the rollers within one assembly enables these bearings to accommodate heavy axial loads and shock loads. The ends of the rollers are relieved slightly to modify the line contact between the raceways and rollers. This prevents stress peaks at the roller ends to extend TC815 Axial Needle Roller Bearing service life. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Metric type thrust needle roller bearing for your reference:
| Shaft | Designation | Mass | Dimensions | Basic Load Ratings | Limiting | Thrust Washer | ||||||
| Diameter | Dc1 | D1 | D | B | B1 | Cr | Cor | Speed | AS | LS | ||
| Dynamic | Static | |||||||||||
| mm | g | min. | kN | kN | rpm | |||||||
| 10 | AXW10 | 8.5 | 10 | 14 | 27 | 3.2 | 3.0 | 9.2 | 25.5 | 6000 | AS1024 | LS 1024 |
| 12 | AXW12 | 9.0 | 12 | 16 | 29 | 3.2 | 3.0 | 9.9 | 29.0 | 5500 | AS1226 | LS 1226 |
| 15 | AXW15 | 10.0 | 15 | 21 | 31 | 3.2 | 3.5 | 11.3 | 36.0 | 4200 | AS1528 | LS 1528 |
| 17 | AXW17 | 11.0 | 17 | 23 | 33 | 3.2 | 3.5 | 11.9 | 39.5 | 3800 | AS1730 | LS 1730 |
| 20 | AXW20 | 14.0 | 20 | 26 | 38 | 3.2 | 3.5 | 13.1 | 46.5 | 3600 | AS2035 | LS 2035 |
| 25 | AXW25 | 20.0 | 25 | 32 | 45 | 3.2 | 4.0 | 14.7 | 58.0 | 3100 | AS2542 | LS 2542 |
| 30 | AXW30 | 22.0 | 30 | 37 | 50 | 3.2 | 4.0 | 16.3 | 70.0 | 2600 | AS3047 | LS 3047 |
| 35 | AXW35 | 27.0 | 35 | 42 | 55 | 3.2 | 4.0 | 17.8 | 81.0 | 2300 | AS3552 | LS 3552 |
| 40 | AXW40 | 39.0 | 40 | 47 | 63 | 4.2 | 4.0 | 28.0 | 114.0 | 1900 | AS4060 | LS 4060 |
| 45 | AXW45 | 44.0 | 45 | 52 | 68 | 4.2 | 4.0 | 30.0 | 128.0 | 1700 | AS4565 | LS 4565 |
| 50 | AXW50 | 49.0 | 50 | 58 | 73 | 4.2 | 4.5 | 32.0 | 143.0 | 1500 | AS5070 | LS 5070 |
Q: I have a urgent order , and want to find a good supplier in short time ,what should i do ?A: Please send your inquiry to me ,and tell me ,the model ,quantity ,material ,package ,precision ,you need ,i will give you a quick response.
Q: How can i get a price with a discount ?A: Discount according to orders .Bigger order ,less money every bearing will cost ,then discount will be bigger .
Q: I have a trial order ,the quantity is little ,could you manufacturing it for me ?A: Please contact me ,i will tell you the MOQ.If you also need we design the single box for you ,we could make it for you ,and the extra cost of the order will return you by next official order.
Q: I don’t know your factory before ,could you tell me which company you are cooperating now ? I want to get to know more about your factory?A: Sorry ,this is our company regulation :we should not let the information of our customer out ,in the same time ,we also keep your information confidential.If you want to know more information ,you could get some free sample from our factory or visit factory if you have the time .
Q: Does your company could accept D/P or D/A payment terms?A: The payment terms of our company is :30% deposit by T/T or West Union ,70 % balance against the copy of B/L.
Q:Now i have a important order ,the quality must be good ,and my customer will test the goods when receive it ,the quality must be good ,can i trust you ?
A:Our manufacturing factory was founded over 10 years. With so many year professional experience, if you need some certificate to show for your customer, pls inform us. We belive could help u to enlarge your market!
1.Neutral packing (neutral plastic bag+ neutral carton+ Plywood/Iron pallets)
2.Custom packing (with logo or barcode according to clients’ requirement)
