Automatic Corn Flakes Snack Food Processing Line
US$ 100,000 - 147,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Dongxuya
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Guangdong Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Cereal Breakfast Corn Flakes Making MachineUS$ 1 - 95,000MOQ: 1 Set -
Automatic Breakfast Cereal Nutritional Corn Flakes Production LineUS$ 23,500 - 24,700MOQ: 1 Set
-
Automatic Breakfast Cereal/grain Production LineUS$ 147,000 - 276,000MOQ: 1 Set
-
Breakfast Cereal/Nuritional Corn Flakes Production EquipmentUS$ 11,000 - 27,000MOQ: 1 Set
-
Hot Sale Nutritional Corn Flakes SnackFood Production LineUS$ 86,000 - 110,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
Dongxuya
Model Number
DXY 70-III, DXY 65-III, DXY 85-III
Application
Other, corn flakes
Voltage
380v(Can be adjusted)
Power(W)
90kw
Weight
3ton
Dimension(L*W*H)
35x3x2.7m
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Hot Sale Automatic Corn Flakes Processing Line
Products Profile:
1. The finished products having long lasting crispness due to the minimal damage of teh cereal's starch structure during processing.
2. The finished products exhibiting the best combination of texture, color and flavor based on the accurate control of conditioning, drying and toasting stages of the process.
3. Unlimited choice of shapes such as stars, crispies, pillows, rings, etc.Simple and fast possibility of intercombining the two mentioned lines, in order to obtain widest range of products with minimum expenses.
Technical Parameters:
| Model | Installed Power | Actual Consumption | Output | Dimension(LxWxH) |
| DXY 65-III | 70kw | 40kw | 100-150kg/h | 30000x1200x2200mm |
| DXY 70-III | 100kw | 70kw | 200-240kg/h | 40000x1500x2200mm |
| DXY 85-III | 200kw | 150kw | 300-400kg/h | 50000x3500x4300mm |

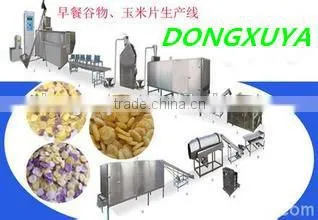

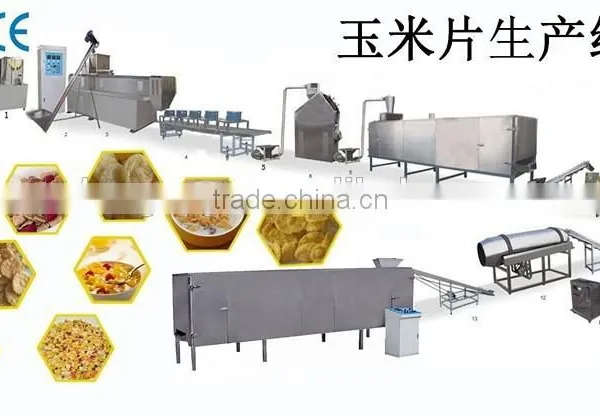

Technological process: raw material preparation - mix - delivery - extrusion- transportation - tablet -delivery- drying - air-conveying- high-temperature puffing- oil spraying-seasoning-drying-(packaging)
Device configuration: mix machine- feeding machine- extrusion machine -send wind machine- tablet press - send wind machine, multilayer oven - hot wind puffed furnace- oil spray machine- double drum-(packing machine)
Process:
a.Mix machine: add corn flour or corn residue to nutritional additives and mixing a certain proportion of water.
b.Feeding machine: the mixed raw material to the extrusion machine feeding hopper
c.Extrusion machine: the raw materials entering the extrusion system in the feed hopper, produce small spherical particles.
d. Vibrating screen: to make particles dispersed, avoid overlapping pressed together after into the tablet press.
e.The wind send machine: the particles to the tablet press.
f. Tablet press: the small spherical particles pressed into thin, is the corn flakes.
g. Tablet press: the small spherical particles pressed into thin, is the corn flakes.
h. Multilayer oven: oven for electric oven, the temperature is between 0-200 degree through the control cabinet to adjust, internal stainless steel double mesh bag, baking time can according to the speed adjustment, to remove moisture.
i. Packaging machine: will bake the particles to the crushing machine.
