Help CenterMacon Wall Mounted Home Dehumidifier 220V Use With Heat Pump
Related Products
-
Compact Air Source All in One Heat Pump Domestic Hot WaterUS$ 800 - 1,500MOQ: 1 Set -
House Heating Pump, Hot Water Conbine With Solar Water PumpUS$ 500 - 1,500MOQ: 5 Sets
-
House Heating Pump, Hot Water Conbine With Solar SytemUS$ 500 - 1,500MOQ: 5 Sets
-
House Heating Pump, Hot Water Conbine With Solar EnergyUS$ 500 - 1,500MOQ: 5 Sets
-
House Heating Pump, Hot Water Conbine With Solar LightUS$ 500 - 1,500MOQ: 5 Sets
Other high quality heat pump YOU may like:
air to water water heaters water source heat pump swimming pool heater
blister all in one heat pump multi-function air to water heat pump multi-function air to water heat pump
split type monoblock type
| Macon wall mounted home dehumidifier | ||||||
| Model A | MDH | 30C | 55C | 70C | 125C | 160C |
| Model B(built in water coil) | MDH | 30C(C) | 55C(C) | 70C(C) | 125C(C) | 160C(C) |
| Dehumidification @ 30℃/70%RH | kg/24h | 30 | 55 | 70 | 125 | 160 |
| Heat recovered to air @ 30℃/70%RH | kW | 1.8 | 2.5 | 2.8 | 5 | 7.2 |
| sound level | dB(A) | 48 | 48 | 48 | 50 | 52 |
| Circulating air volume | m³/h | 600 | 600 | 600 | 1200 | 1800 |
| power supply | V/PH/Hz | 220/1/50 | ||||
| Heat pump power consumed | kW | 0.73 | 1.02 | 1.14 | 2.00 | 2.60 |
| Heat pump rated current | Amps | 3.3 | 4.6 | 5.2 | 9.1 | 11.8 |
| Heat pump starting current | Amps | 16 | 21 | 24 | 42 | 47 |
| Hot Water Battery(Optional) | kW | 3.0 | 3.0 | 3.0 | 6.0 | 9.0 |
| Water Inlet | inch | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 |
| Water Outlet | inch | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 |
| Condensate drain size | mm OD | 16 | 16 | 16 | 16 | 16 |
| Operating temperature ranger | ℃ | 5-35 | ||||
| Compressor protection | 3 minutes delay | |||||
| Defrost mode | Automatic | |||||
| Refrigerant | R410a/R407C | |||||
| Compressor | Rotary | Rotary | Rotary | Rotary | Rotary | |
| Net weight | Kg | 44 | 48 | 50 | 59 | 68 |
| Gross weingt | Kg | 49 | 53 | 55 | 66 | 77 |
| net dimension | mm | 905*243*673 | 905*243*673 | 905*243*673 | 1288*243*673 | 1672*243*673 |
| Packaging dimension | mm | 1015*315*765 | 1015*315*765 | 1015*315*765 | 1395*315*765 | 1775*315*765 |
Production Application Drawing
MACON hot water&buffer tank MACON wall mounted dehumidifier MACON stand type fan coil
Product Projects
HOT sale and more Durable beyond your imagination .

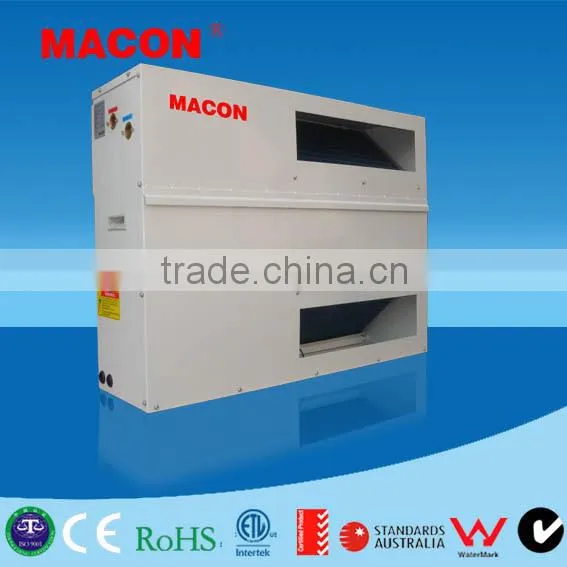

Macon wall mounted home dehumidifier
Model Selection Guide
1. Your room temperature where to use the dehumidifier?
2. Your room size?
3. Your room's relative humidity and your expeceted humidity?
4. Your power supply?
Once you are interested in our heater , Please do not hesitate to click here and contact us! :-)
