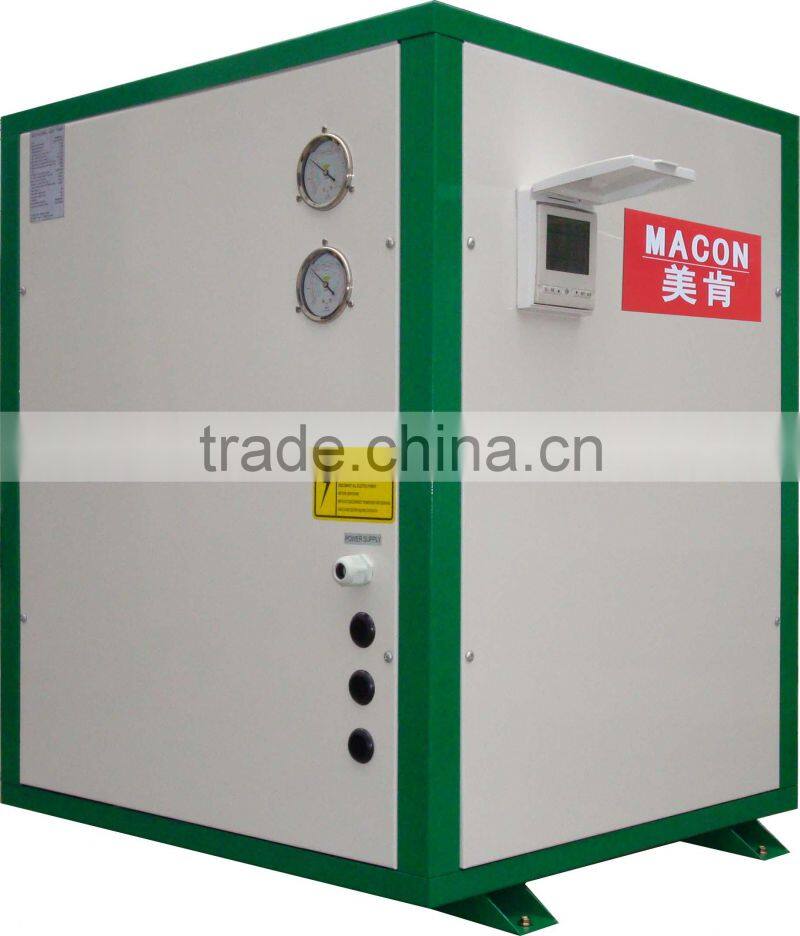

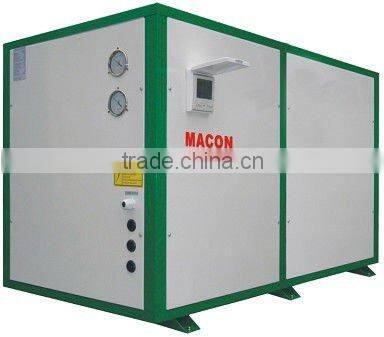

Ground Water to Water Heat Pump, Home Appliance Heat Pump

Name: Ground Water to Water Heat Pump, Home Appliance Heat Pump
Brand: Macon
SKU: 113239335
Availability: InStock

US$ 600 - 3,000 MOQ: 1 Set

Key Specifications

Type:

Water Source Heat Pump

Installation:

Freestanding

Storage / Tankless:

Instant / Tankless

Foshan Macon Cooling & Heating Energy-Saving Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shunde guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Type Water Source Heat Pump

Installation Freestanding

Storage / Tankless Instant / Tankless

Housing Material Other, plastic or stainless steel

Use Other, villa, hotels, restaurants,stadiums, hospitals,etc

Certification CB, CE, EMC, Other, UL, CE, CB, CE, EMC, RoHS, UL, ETL, CE,RoHS,ETL

Place of Origin Guangdong, China

Brand Name Macon

Model Number MWC(H)RW(S)****Z/S

Specifications

Ground heat pump, home appliance heat pump
1.water to water
2.floor heating, hotwater
3.COP:4.2
4.Heating:10--90KW

Ground water to water heat pump, home appliance heat pump

Shell: Spraying metal/stainless steel

Function: cooling/heating/hot water

Heating capacity: 5---99KW

Automatic defrost system, Scroll compressor,

Refrigerant R410a

Option for multi-function system, which can provide heating and hot water at the same time or cooling and hot water at the same time.

Model	MWCRW	030Z/(01)	040Z/(01)
Rated Output Water	L/h	190	250
Rated Cooling Capacity	KW	7.8	10.4
Rated Cooling Capacity	BUT/h	26600	35500
Rated Input Power(Cooling)	KW	1.84	2.45
Rated Input Current(Cooling)	A	8.34	11.12
Rated Heating Capacity(1)	KW	8.7	11.6
Rated Heating Capacity(1)	BTU/h	29700	39600
COP(1)	W/W	4.1	4.1
Rated Input Power(Heating)(1)	KW	2.12	2.83
Rated Input Current(Heating)(1)	A	9.65	12.86
Rated Heating Capacity(2)	KW	9.6	12.8
Rated Heating Capacity(2)	BTU/h	32800	43700
COP(2)	W/W	5.4	5.4
Rated Input Power(Heating)(2)	KW	1.78	2.37
Rated Input Current(Heating)(2)	A	8.1	10.8
Rated Temp.Of Water Output	°C	55
Max Temp.Of Water Output	°C	60
Power Supply	V/PH/Hz	220/1/50
Ground source side heat exchanger	Type	Tube in tube type
Hot water side heat exchanger	Type	Plate heat exchanger
Refrigerant Type		R410A
Compressor		Rotary	Scroll
Noise	dB(A)	52	54
Water Out let/Water In let	inch	1″	1″
Water Flow Volume	m³/h	2	2.5
Net Dimensions ( L/M/H )	mm	670/600/760	670/600/760
Shipping Dimensions ( L/M/H )	mm	720/650/860	720/650/860
Net Weight	kg	150	165
Shipping Weight	kg	160	175
Note: Cooling :Air condition side inlet/outlet :12°C/7°C,Hot source side inlet/outlet:30°C/35°C; (1)Heating:Hot water side inlet/outlet :15°C/55°C,Hot source side inlet/outlet:10°C/-; (2)Heating:Air condition side inlet/outlet :30°C/35°C,Hot source side inlet/outlet:10°C/-;
