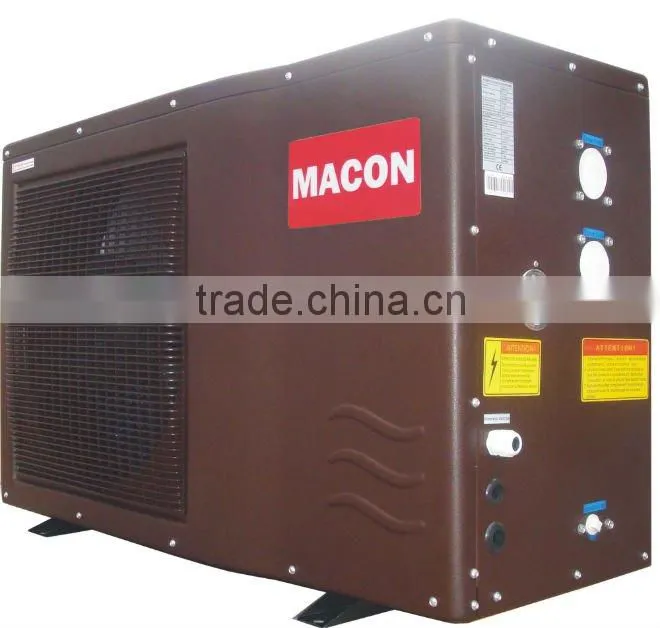

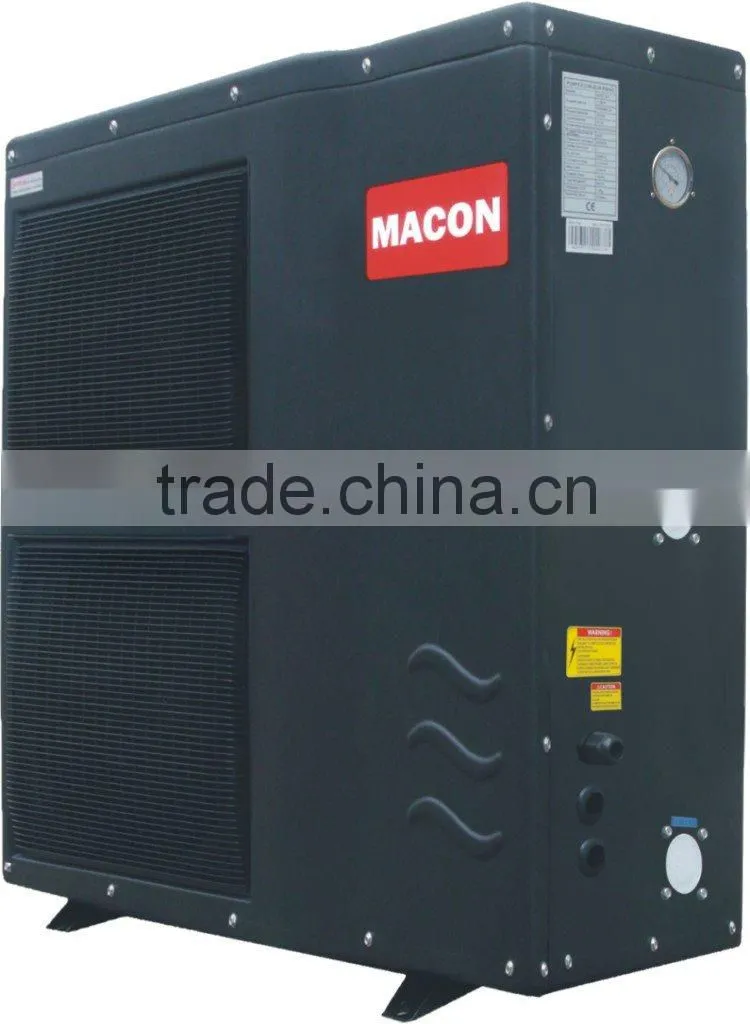

Help CenterMACON Heat Pump Water Heaters for Pool , ABS Plastic Shell Air to Water Swimming Pool Heat Pump,pool Heat Pump,R410A
Related Products
-
Macon DC Inverter Air Source Swimming Pool Heat Pump Spa Heat PumpUS$ 1,900 - 4,000MOQ: 1 Set -
Air to Water Heat Pump Plastic Shell,House Heating Heat Pump 12.3kwUS$ 300 - 9,000MOQ: 1 Unit
-
MACON Germany Swimming Pool Heating PumpUS$ 400 - 30,000MOQ: 1 Set
-
MACON Air to Water Converter(CE, CB, EC, ETL, CETL, C-TICK, WATER MARK, STANDARD MARK, UL, SABS, SANS, SAA, SASO) for AustraliaUS$ 500 - 30,000MOQ: 1 Set
-
Ground Source Pool Heater Heat Pump Cold Recovery for FranceUS$ 500 - 50,000MOQ: 1 Set
Specifications
Heat Pump Water Heaters:1.Function:cooling and heating
2.COP: 5.2
3.Patent Titanium heat exchanger
4.CE & ETL

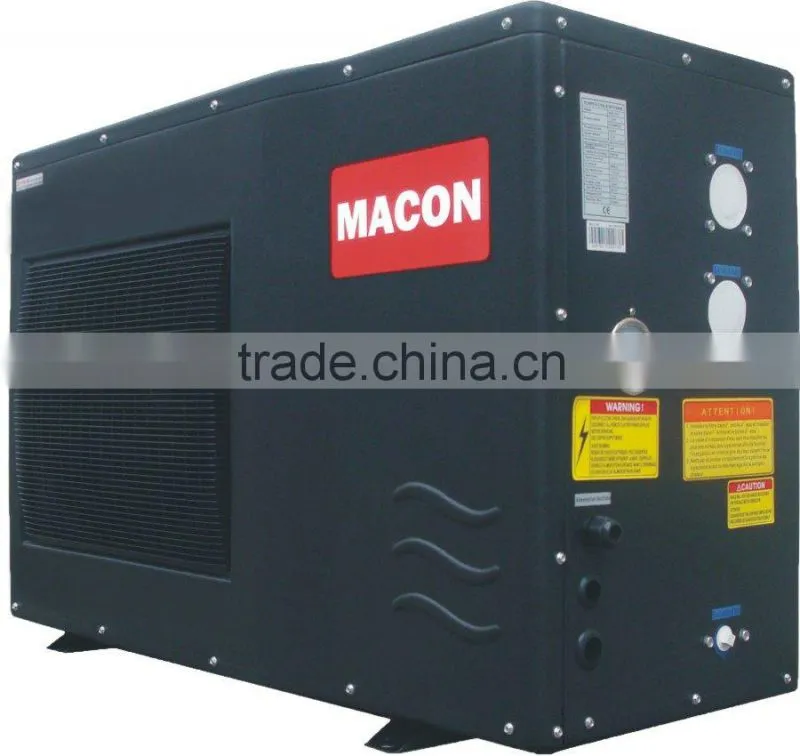

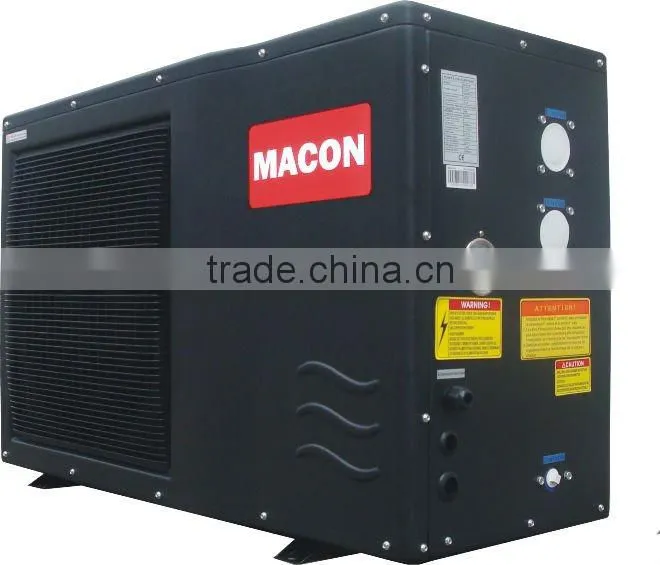

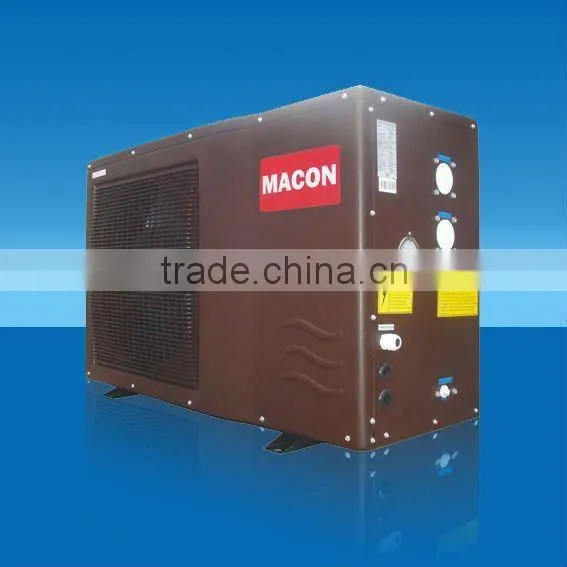

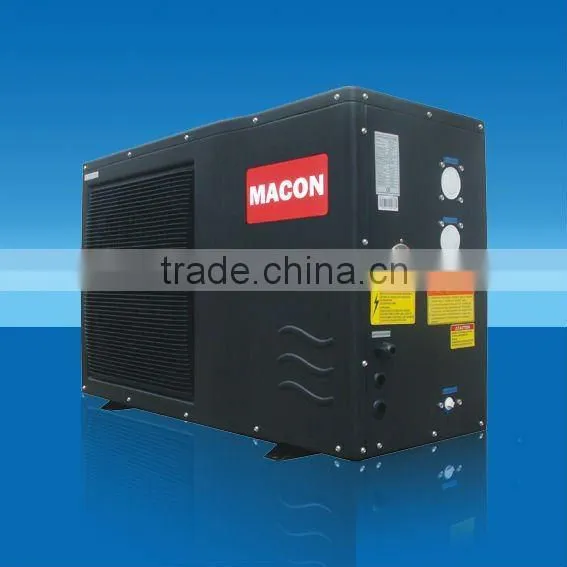

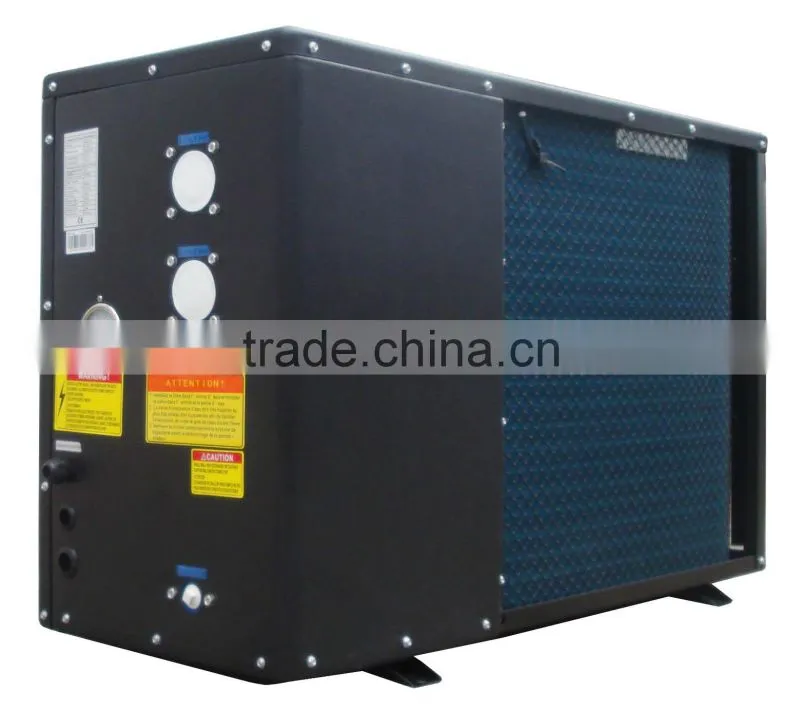

MACON heat pump water heaters for pool :
| Model(Plastic Shell) | MALCRW | 010ZA1 | 020ZA1 | 030ZA1 | 035ZA1 | 045ZA1 |
| Cooling Capacity | kW | 3.6 | 7.2 | 10.8 | 12.6 | 16.2 |
| BTU/h | 12283 | 24566 | 36850 | 42991 | 55274 | |
| Input Power | kW | 0.99 | 1.99 | 2.98 | 3.47 | 4.47 |
| Input Current | A | 4.5 | 9.0 | 13.5 | 15.8 | 20.3 |
| Heating Capacity1 | kW | 5.0 | 10.0 | 15.0 | 17.5 | 22.5 |
| BTU/h | 17060 | 34120 | 51180 | 59710 | 76770 | |
| Input Power1 | kW | 0.90 | 1.81 | 2.71 | 3.16 | 4.06 |
| Input Current1 | A | 4.1 | 8.2 | 12.3 | 14.4 | 18.5 |
| Heating Capacity2 | kW | 4.3 | 8.6 | 12.9 | 15.1 | 19.4 |
| BTU/h | 14672 | 29343 | 44015 | 51521 | 66193 | |
| Input Power2 | kW | 0.92 | 1.84 | 2.76 | 3.23 | 4.15 |
| Input Current2 | A | 4.2 | 8.4 | 12.6 | 14.7 | 18.9 |
| Power Supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 |
| Compressor | Rotary | Rotary | Rotary | Scroll | Scroll | |
| Compressor Qty | 1 | 1 | 1 | 1 | 1 | |
| Fan Qty | 1 | 1 | 1 | 1 | 1 | |
| Noise | dB(A) | 48 | 48 | 52 | 52 | 54 |
| Water Out let/Water In let | inch | 1–1/2" | 1–1/2" | 1–1/2" | 1–1/2" | 1–1/2" |
| Water Flow Volume | m3/h | 2.1 | 4.3 | 6.4 | 7.5 | 9.7 |
| Water Pressure Drop | kpa | 10 | 12 | 15 | 15 | 16 |
| Fan Direction | horizontal | horizontal | horizontal | horizontal | horizontal | |
| Refrigerant Type | R410a | |||||
| Unit Net Dimensions ( L/M/H ) | mm | 950/400/600 | 1002/460/650 | 1102/470/900 | 1102/470/900 | 1102/470/900 |
| Unit Shipping Dimensions ( L/M/H ) | mm | 1035/435/635 | 1088/495/685 | 1188/505/935 | 1188/505/935 | 1188/505/935 |
| Net Weight | kg | 35 | 55 | 75 | 95 | 110 |
| Shipping Weight | kg | 38 | 59 | 83 | 103 | 118 |
| Note: (1)1Heating:Outdoor air temp:24℃/19℃,Outlet water temp:28℃,Input water temp:26℃; (2)2Heating:Outdoor air temp:15℃/12℃,Outlet water temp:28℃,Input water temp:26℃; (3)Cooling :Outdoor air temp:43℃,Outlet water temp:32℃,Input water temp:34℃ (4) Using in ambient temperature:5℃~43℃. |
||||||
MACON swimming pool heat pump
1.Certificate
MACON swimming pool heat pump has pass ISO-9001:2000 and obtained CE,ROSH,ETL,CETL,CCC certification.
2.Durable
Using advanced titanium heat exchanger, greatly resist erosion of chlorine ion in water, solid and durable,no harm to human body,
3.Energy saving and environmental friendly
Using high-technology of heat pump, 65-80% of running cost can save compared with other heating machines(such as the fuel gas boiler, electric boilers, etc).Absolutely no air pollution,
4.environmental friendly.
Sharp design, convenient installation
Integral design and compact look, small occupation area.
5.Advanced control and easy operation
Micro computer control, LCD display, super power failure memory and timing on/off function,
5.Multi-protec
Flow switch built-in, automatic defrost, antifreeze protection function.
7.Safety use
Hydropower isolation, no leakage, safety.

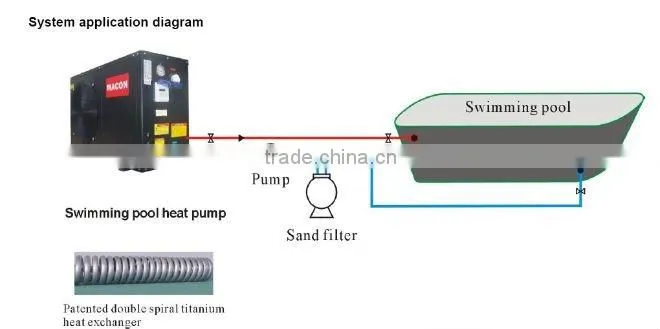

8.patent heat exchanger
Using patent technology double titanium heat exchanger coil,more stable performance, higher COP value.what's more, the heat exchanger is high pressure-bearing, can bear 21 kg water pressure.
