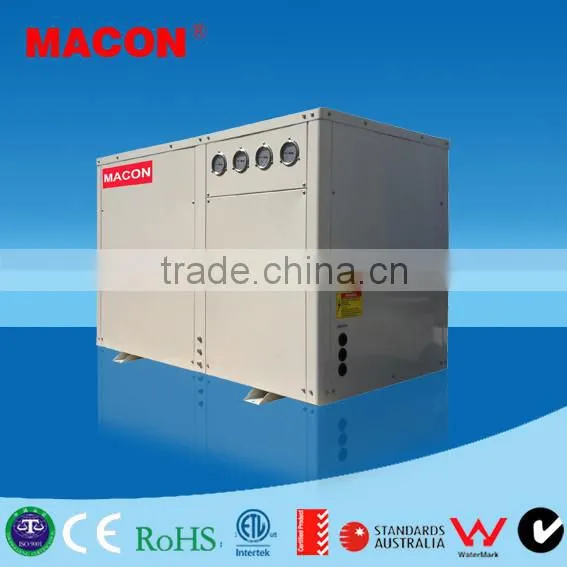

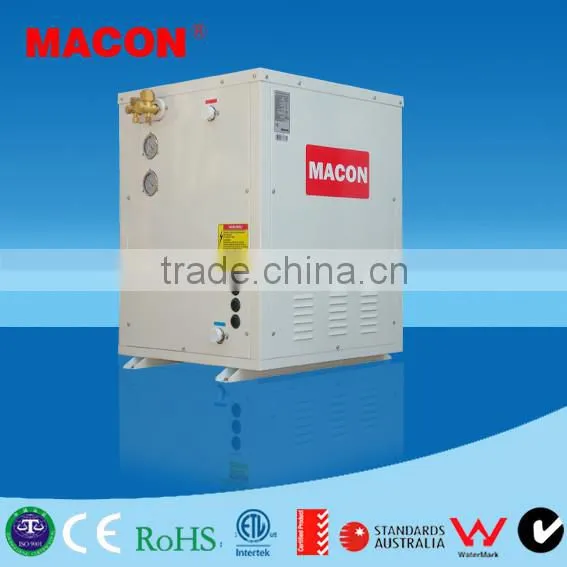

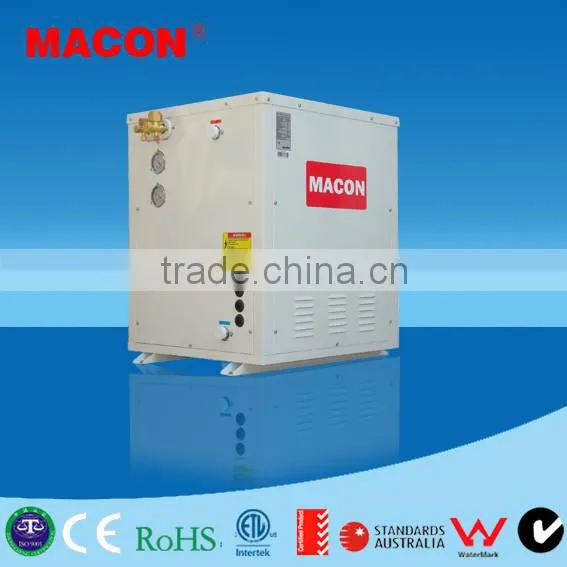

Help CenterMacon Hot Sell Multifunctional Geothermal Heat Pump Water to Water From China
Related Products
-
Ground Source Multi-function Heat PumpUS$ 600 - 3,000MOQ: 1 Set -
Ground Source Water to Water Central Air Coditioning & Hot Water Heat PumpUS$ 600 - 3,000MOQ: 1 Set
-
Geothermal Heat PumpUS$ 650 - 3,000MOQ: 1 Set
-
Ground Source Water Source Water to Water Geothermal Low Temperature -25degree Heat PumpUS$ 600 - 3,000MOQ: 1 Set
-
EVI DC Inverter Split Type Air Source Heat Pump (Cooling + Heating + Domestic Hot Water)US$ 600 - 5,000MOQ: 1 Set
Specifications
1.7 year's global distributor/supplier
2.OEM & Customized service
3.CE,ISO,CCC,RoHS,MCS certificates
4.Energy-saving,Hotsale

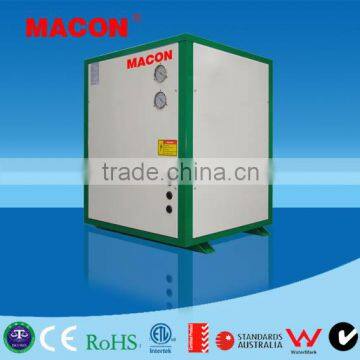

Type:Ground source heat pump
Cooling capacity: 37532BUT/h ~716520BUT/h
COP: 3.9~4.5(even to6)
Certification: CE,CCC
Refrigerant: 407c, 410a, R22

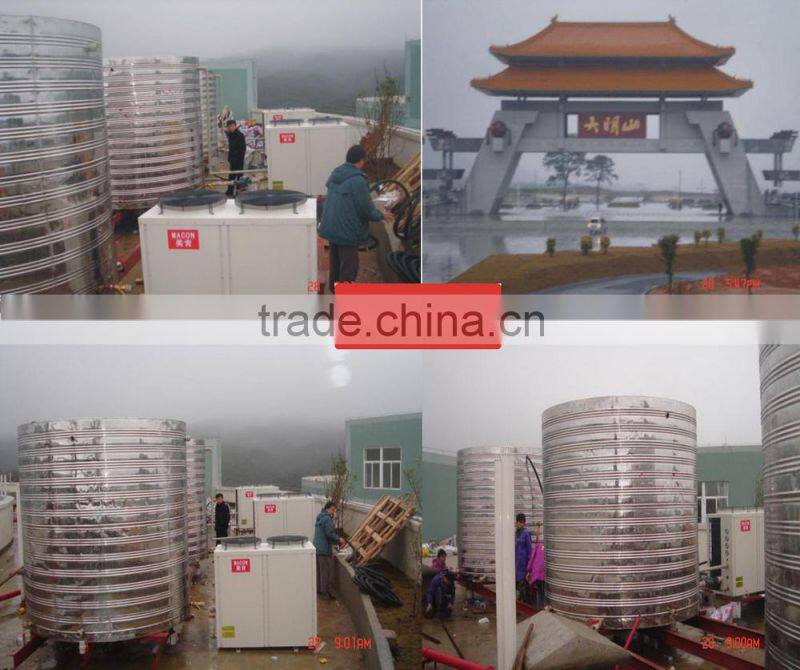

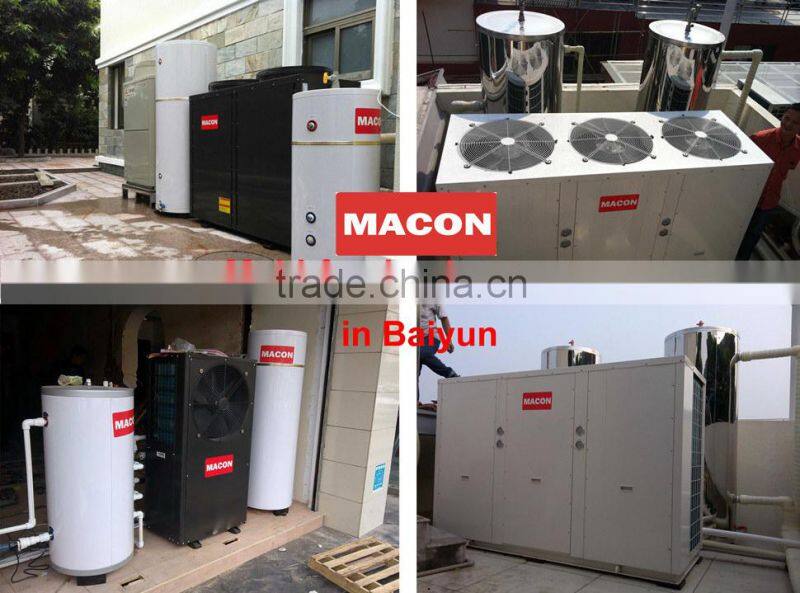

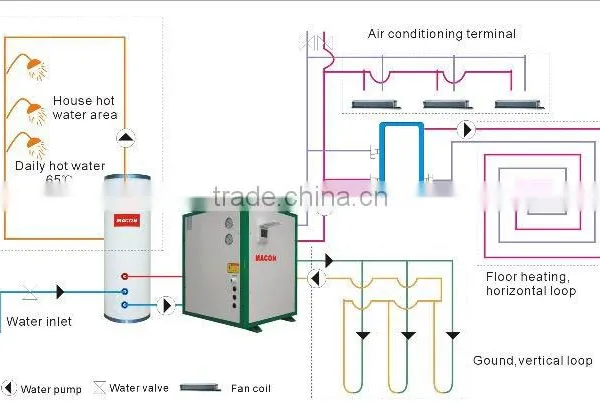

1.Wide application
Widely used in hotels,restaurants,apartment houses, villas, factories and schools, sauna, bathroom, SPA association, beauty salon,fitness center,swimming pool, aquaculture, etc to applicate with various terminal equipment (fan coil, floor heating, radiators, temperature-holder tank etc.), combining indoor luxury decoration, maximizing satisfy user's requirements and comfortable. The modular structure is suitable for various sizes of engineering, office buildings, hotels, restaurants, cinema, shopping plaza, gymnasium, hospital etc., as the best choice of various public places.
2.five modes
Cooling, heating, hot water ,cooling and hot water,heating and hot water.
3.High efficiency and energy saving
Using energy efficient scroll compressors, 316 stainless steel material welded plate heat exchanger. Comprehensive energy consumption is only65% of the solar energy water heater,25% of electric water heater. When it is hot water and cold water, the COP will be more than 6.
4.Flexible configuration
The unit and tank flexible configuration.A different water tank to choose, pressure or open type connected to meet the different demands of clients.
5.Flexible installation position
Host appearance, compact tank to small occupation space for installation, conduit length of flexible connection.
6.Hot water circulation heat straight
55 degrees hot water heated one-time and got directly to use, improve comfort of water using and stable of unit. When stop to use water in a long time and the water temperature drops, unit will heat cyclely and automaticly.
7.Dual-core design
Heat pump, electric auxiliary heat integration together, super energy-saving and hot water in all-weather.
8.The advanced control technology of water
WILO water pump built-in, with water flow protection, automatic filling and water level control, automatic water pressure test, hydrating pressurization control and Automatic constant temperature adjustment.
9.Integrated design, multi-protect and reliable
Integration design, system sealed welding completely, just conduit connections, without refrigerant pipe connections, simple and reliable connection installed. built-in protections of hot water flow and air flow, compressor exhaust temperature, high and low pressure compressor, compressors flow and power fault phase, power supply fault and lack of phase ,freeze protection, automatic defrost and automatic load adjusting etc built-in. Multiple protections.
10.Environment Friendly
Using refrigerant 410A, no damage, environment friendly.
11.Multi-source design
Air source , ground source, solar and electric auxiliary heat integrated together (optional), super energy, which can meet all-weather hot water supply.
12.Simple operation
Intelligent design, LCD display, simple operation, free setting during 8 ° c - 60° c and cycle timing set on/off freely.
13.Quiet running
Using efficient, low-noise rotary, closed scroll compressors and low-noise fan, ensure quiet running
14. Multi-protection
Unit with phase sequence, water flow, freezing, high, low voltage and over-temperature, over current of compress or protection and so on.
15. multi-purpose, complete function
With function of refrigerating, heating and hot water, provide hot water freely under the refrigeration condition.
Working environment:-20°C~45°C.

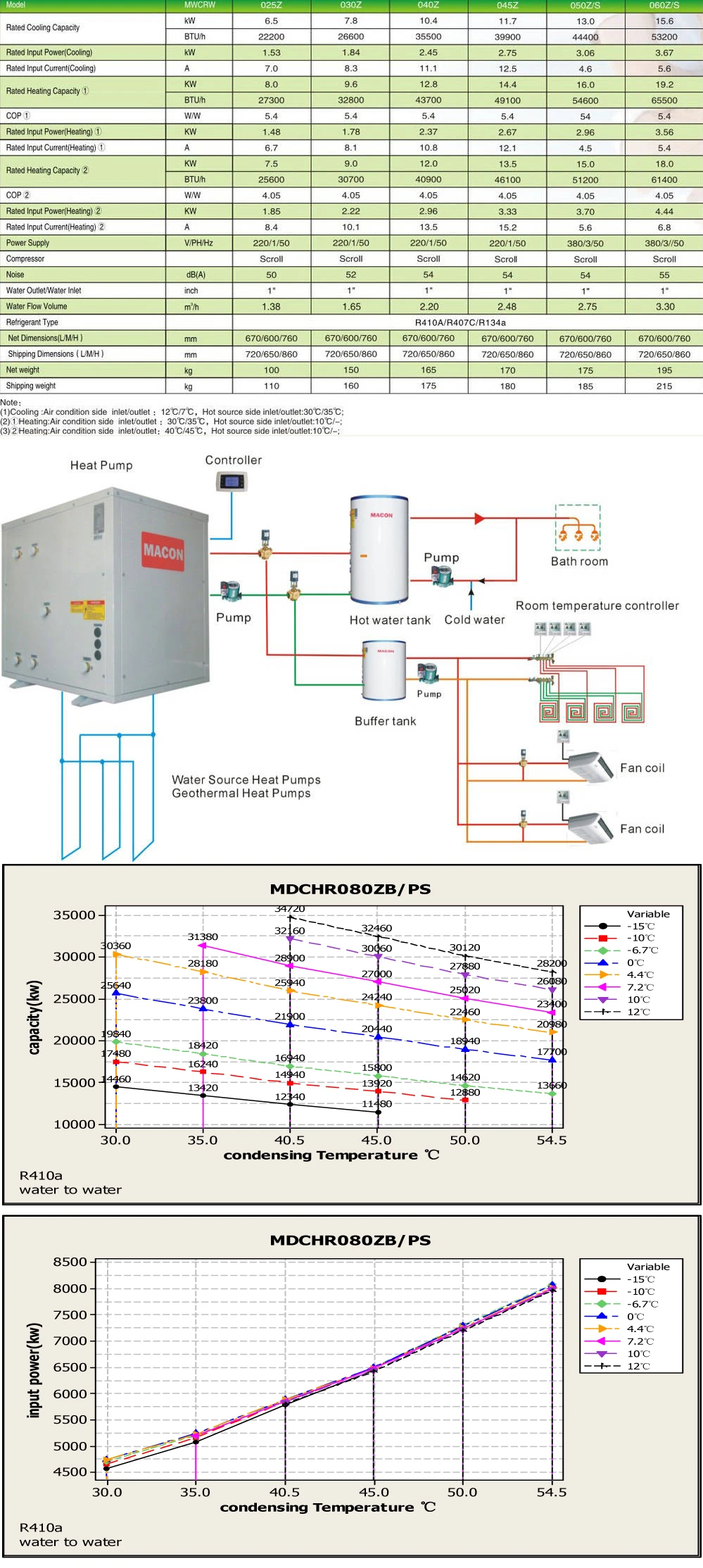

Parameter of Ground source heat pump
| Model | MWCHRW(S) | 040Z/(02) | 040Z/S(02) | 045Z/S(02) | 050Z/S(02) | 060Z/S(02) |
| Rated Output Water | L/h | 250 | 250 | 270 | 300 | 380 |
| Rated Cooling Capacity | KW | 10.4 | 10.4 | 11.7 | 13 | 15.6 |
| BUT/h | 35500 | 35500 | 39900 | 44400 | 53200 | |
| Rated Input Power(Cooling) | KW | 2.45 | 2.45 | 2.75 | 3.06 | 3.67 |
| Rated Input Current(Cooling) | A | 11.1 | 3.7 | 4.2 | 4.6 | 5.6 |
| Rated Heating Capacity1 | KW | 11.6 | 11.6 | 13.1 | 14.5 | 17.4 |
| BTU/h | 39600 | 39600 | 44700 | 49500 | 59400 | |
| COP1 | W/W | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 |
| Rated Input Power(Heating)1 | KW | 2.83 | 2.83 | 3.20 | 3.54 | 4.24 |
| Rated Input Current(Heating)1 | A | 12.9 | 4.3 | 4.9 | 5.4 | 6.4 |
| Rated Heating Capacity2 | KW | 12.8 | 12.8 | 14.4 | 16.0 | 19.2 |
| BTU/h | 43700 | 43700 | 49200 | 54600 | 65600 | |
| COP2 | W/W | 5.4 | 5.4 | 5.4 | 5.4 | 5.4 |
| Rated Input Power(Heating)2 | KW | 2.37 | 2.37 | 2.67 | 2.96 | 3.56 |
| Rated Input Current(Heating)2 | A | 10.8 | 3.6 | 4.1 | 4.5 | 5.4 |
| Rated Heating Capacity3 | KW | 12.0 | 12.0 | 13.5 | 15.0 | 18.0 |
| BTU/h | 41000 | 41000 | 46100 | 51200 | 61500 | |
| COP3 | W/W | 4.05 | 4.05 | 4.05 | 4.05 | 4.05 |
| Rated Input Power(Heating)3 | KW | 2.96 | 2.96 | 3.33 | 3.70 | 4.44 |
| Rated Input Current(Heating)3 | A | 13.5 | 4.5 | 5.1 | 5.6 | 6.8 |
| Power Supply | V/PH/Hz | 220/1/5 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| Compressor | Scroll | Scroll | Scroll | Scroll | Scroll | |
| Noise | dB(A) | 54 | 54 | 54 | 54 | 55 |
| Hot water side | ||||||
| Water Out let/Water In let | inch | 1″ | 1″ | 1″ | 1″ | 1″ |
| Water Flow Volume | m³/h | 1.99 | 1.99 | 2.25 | 2.49 | 2.99 |
| Air condition side | ||||||
| Water Out let/Water In let | inch | 1″ | 1″ | 1″ | 1″ | 1″ |
| Water Flow Volume | m³/h | 2.20 | 2.20 | 2.48 | 2.75 | 3.30 |
| Hot source side | ||||||
| Water Out let/Water In let | inch | 1″ | 1″ | 1″ | 1″ | 1″ |
| Water Flow Volume | m³/h | 2.20 | 2.20 | 2.48 | 2.75 | 3.30 |
| Refrigerant Type | R410A | |||||
| Net Dimensions ( L/M/H ) | mm | 780/670/765 | 780/670/765 | 780/670/765 | 780/670/765 | 780/670/765 |
| Shipping Dimensions ( L/M/H ) | mm | 830/720/865 | 830/720/865 | 830/720/865 | 830/720/865 | 830/720/865 |
| Net Weight | kg | 165 | 165 | 170 | 175 | 195 |
| Shipping Weight | kg | 175 | 175 | 180 | 185 | 215 |
| Note: (1)Cooling :Air condition side inlet/outlet :12℃/7℃,Hot source side inlet/outlet:30℃/35℃; (2)1Heating:Hot water side inlet/outlet :15℃/55℃,Hot source side inlet/outlet:10℃/-; (3)2Heating:Air condition side inlet/outlet :30℃/35℃,Hot source side inlet/outlet:10℃/-; (4)3Heating:Air condition side inlet/outlet:40℃/45℃,Hot source side inlet/outlet:10℃/-; | ||||||
Our services
- 1% FREE accessories
- 1 year warranty period
- 24 hour Technical support
- OEM
- Customization

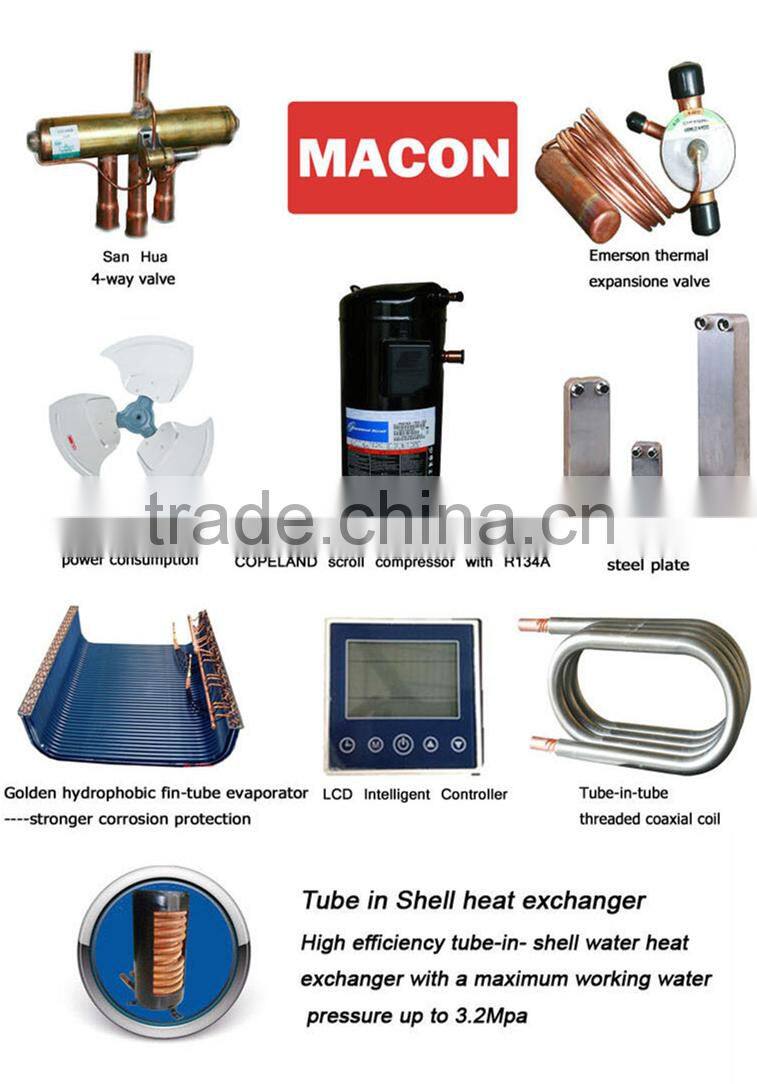

We use best components to make sure the good quality of heat pump.
Quality Management
1.Has more than 7 years of ISO9001:2000 quality management system operation and
management experience.
2.Owns export quality certification and product technical experience for 76 countries
and regions in the world.
3.Has rich experience in production management team of professionals;
4.With perfect product process design and process management process control
management;
5.Has a perfect staff training management mechanism, online production workers assemble
skills training, strict examination, rich experience;
6.Each heat pump product line is with strict professional testing, packaging;
7.Products from design, trial production and small batch production to batch production has
strict quality management process control.
8.Each product has a barcode tracking management, each a product in the factory have been
set up a original files to track the quality of product management.
Cetificate
ETL,CE,RoHS,SAA,WATER MARK,C-TICK,ISO-9001,CCC.ect

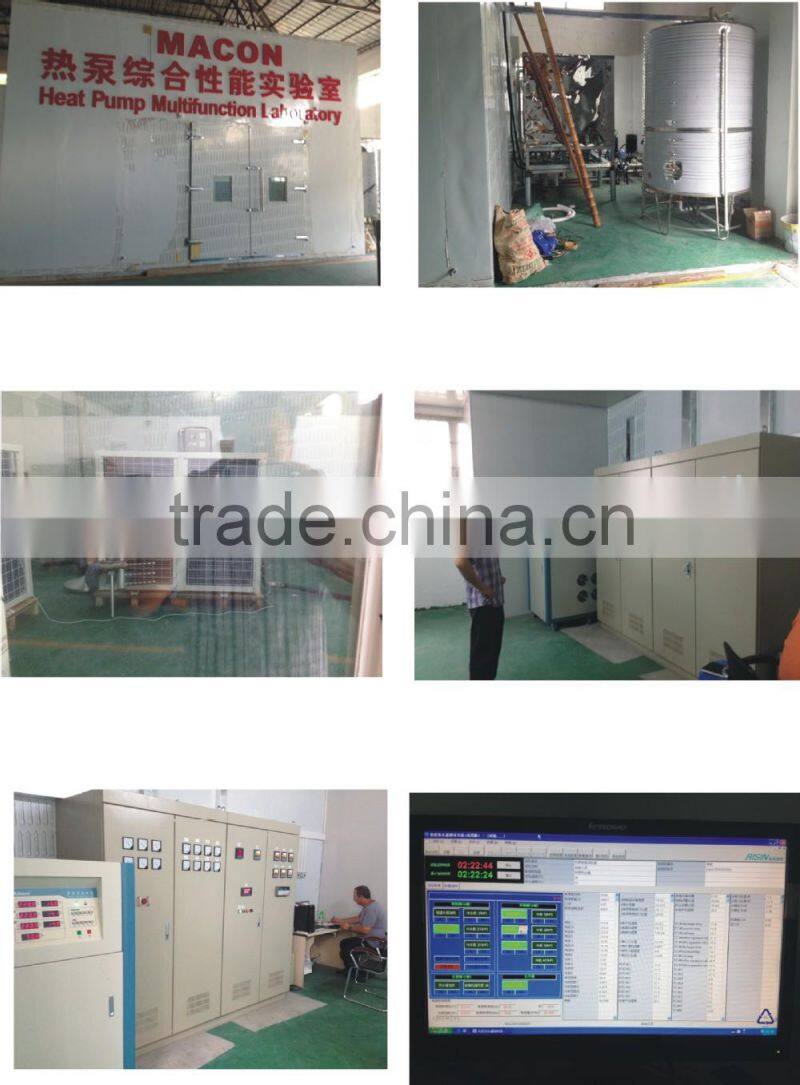

Our Laboratory

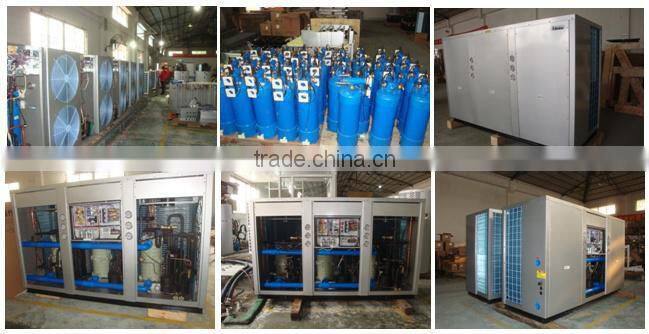

Our Factory
Shipping & Packaging
Strong Packaging,thick Honeycomb carton,high quality Plywood case
Exihibition
FAQ Frequently Asked Questions
1. Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers.
2. Can you do special product for us?
Yes. We have professional engineers having rich experience in heat pump design and manufacturing.Just
tell us your ideas or provide the drawing,we can help to carry out your ideas into real products.
3. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.
4. What is your terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
5. What is your payment terms?
-For sample order: T/T 100%
-For container order: T/T 30% deposit, T/T 70% before shipment
6. What about warranty?
We usually provide 1% free spare parts according to your order quantity.
§:Get more details please contact me or visit our Website and factory.
