Home > Consumer Electronics > Water Heater & Components > Heat Pump Water Heater > Air Source Air Cooled Commercial Air Conditioning Water Chiller

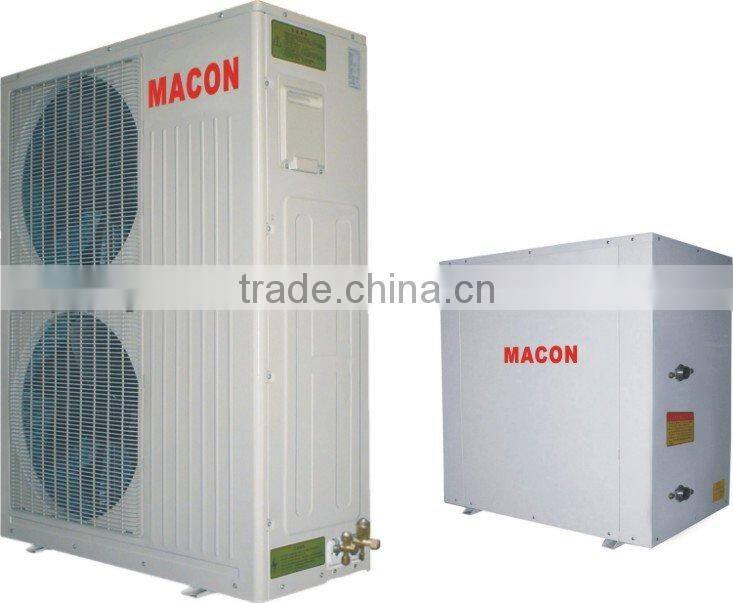

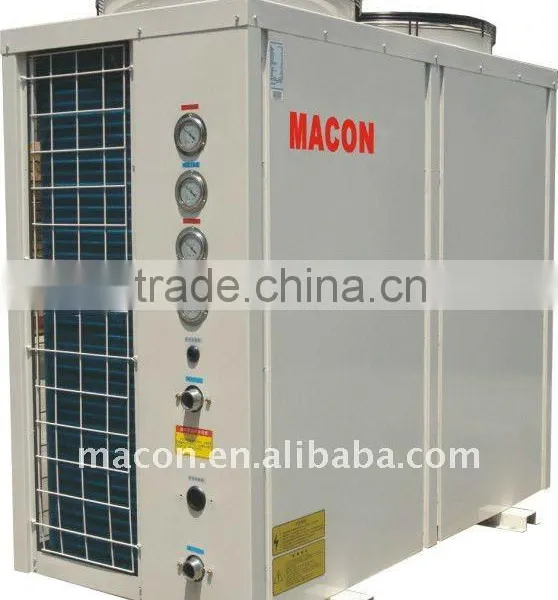

Air Source Air Cooled Commercial Air Conditioning Water Chiller

Name: Air Source Air Cooled Commercial Air Conditioning Water Chiller
Brand: MACON
SKU: 113237347
Availability: InStock

Air Source Air Cooled Commercial Air Conditioning Water Chiller thumbnail-1

Air Source Air Cooled Commercial Air Conditioning Water Chiller photo-1

US$ 600 - 2,100 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Other, Air Source Heat Pump, air source floor heating heat hump

Installation:

Freestanding

Storage / Tankless:

Instant / Tankless

Contact Supplier Request Quote Chat Now

Foshan Macon Cooling & Heating Energy-Saving Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHUNDE GUANGZHOU

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Other, Air Source Heat Pump, air source floor heating heat hump

Installation Freestanding

Storage / Tankless Instant / Tankless

Housing Material Other, plastic or stainless steel

Use Bathroom

Certification CB, CE, EMC, Other, UL, CE, EMC, CB, CE, EMC, RoHS, UL, CE,EMC,CCC,ISO9001

Place of Origin Guangdong, China

Brand Name MACON

Model Number MACRW***ZA

Specifications

air source heat pump for chiller and heating
1.Durable,Economical
2.High efficient heat exchanger
3.-15~45DC
4.ce approved

air source heat pump water chiller and floor heating Parameters

Model	MACRW	025ZA/(P)	030ZA/(P)	035ZA/(P)	040ZA/(P)	045ZA/(P)S	050ZA/(P)S	060ZA/(P)S
Rated Cooling Capacity	kW	6.5	7.5	9.0	10.0	11.5	12.5	15.0
Rated Cooling Capacity	BTU/h	22200	25600	30800	34200	39300	42700	51200
Rated Input Power(Cooling)	kW	2.10	2.40	2.90	3.20	3.60	4.00	4.70
Rated Input Current(Cooling)	A	9.5	10.9	13.2	14.5	6.3	7.0	8.2
Rated Heating Capacity	kW	7.5	9.0	10.5	12.0	13.5	15.0	18.0
Rated Heating Capacity	BTU/h	25600	30800	35900	41000	46100	51200	61500
Rated Input Power(Heating)	kW	2.30	2.70	3.10	3.60	4.00	4.50	5.30
Rated Input Current(Heating)	A	10.5	12.3	14.1	16.4	7.0	7.9	9.3
Power Supply	V/PH/Hz	220/1/50	220/1/50	220/1/50	220/1/50	380/3/50	380/3/50	380/3/50
Compressor		Rotary	Rotary	Rotary	Scroll	Scroll	Scroll	Scroll
Noise	dB(A)	55	55	55	55	55	57	57
Water Connection	inch	1	1	1	1	1	1	1
Water Flow Volume	m³/h	2-3	2-3	2-3	3-4	3-4	3-4	4-5
Fan Direction		horizontal	horizontal	horizontal	horizontal	horizontal	horizontal	horizontal
Refrigerant Gas Type		R410a
Main Unit Net Dimensions(L/M/H)	mm	1115/470/700	1115/470/700	1115/470/700	1115/470/945	1115/470/945	1115/470/1250	1115/470/1250
Main Unit Shipping Dimensions(L/M/H)	mm	1205/525/725	1205/525/725	1205/525/725	1205/525/975	1205/525/975	1205/525/1280	1205/525/1280
Net Weight	kg	90	98	105	120	130	145	150
Shipping Weight	kg	105	113	120	140	150	165	170

Note:Cooling:Outdoor air temp:35/24,Outlet water temp:7,Inlet water temp:12

Heating: Outdoor air temp:7/6,Outlet water temp:45,Inlet water temp:40

Energy call back for hot water as option

Product characteristics:

1.Wide application

The modular structure is the best choice and suitable for various sizes of engineering, office buildings, hotels, restaurants, cinema, shopping plaza, gymnasium, various public hospital ect.

2.Multistage energy regulation

According to different load flexible use of multistage energy regulation.

3.High efficiency and energy saving

Using high-efficient compressor rotary or scroll and heat exchanger, small volume,strong heat enchange capacity, up 10% than the same old units.

4.Multi-protect and reliable

Unit protection against freezing, compressor high-pressure compressor, high and low voltage protection, compressor overtemperature, compressors flow, power supply phase sequence,ensure unit works in hash environment.

5.Seamless combination

according to actual engineering requirements seamless combination of 2 ~ 5 units, host installation area reduce by 30%, installation reduced by 20%

6.Super heat recovery function(option)

Heat recovery equipment built-in to supply free daily water while cooling.

7.Spray cooling(option)

Unit starts the additional spray cooling system automaticly when the ambient temperature is above 35°C,ensuring working under harsh environment.

8.Optional for integral type and split type, and easy to installation

Built in WILO pumps, flow switches, easy to install pipe connections, especially in split type design, take water system entirely in indoor, completely solved the problem of the water system freezing in cold weather,, particularly suitable for cold areas.
