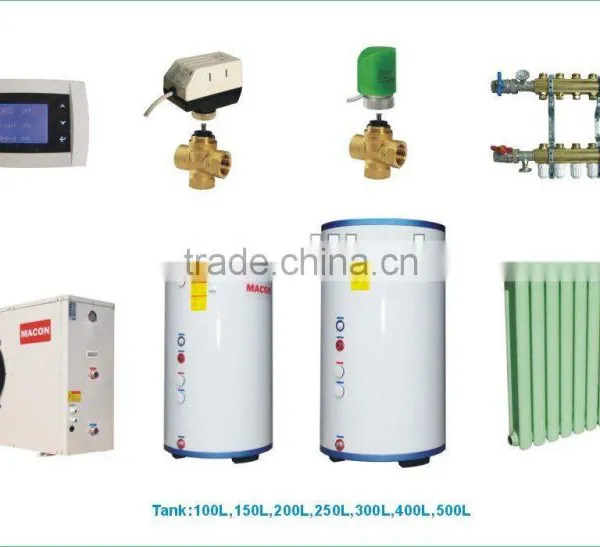

Air To Water House Heating and Domestic Hot Water Heat Pump
US$ 600 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, Air Source Heat Pump, air source swimming pool heat hump
Installation:
Freestanding
Storage / Tankless:
Instant / Tankless
Payment & Shipping
Payment Methods:
Port of Shipment:
SHUNDE GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Air Source Heat PumpNegotiableMOQ: 5 Pieces -
Air to Water Multi-function Heat PumpUS$ 650 - 3,000MOQ: 5 Sets
-
R410a CE 15KW Domestic Household Floor Heating Cooling Air Conditioning Heat Pump Water HeaterUS$ 600 - 10,000MOQ: 1 Set
-
Air to Water Heat PumpNegotiableMOQ: 5 Pieces
-
7kw or 9kw Low Temperature Multifunction Air Source Heat PumpUS$ 600 - 3,000MOQ: 1 Set
Type
Other, Air Source Heat Pump, air source swimming pool heat hump
Installation
Freestanding
Storage / Tankless
Instant / Tankless
Housing Material
Other, plastic or stainless steel
Use
Bathroom
Certification
CB, CE, EMC, Other, UL, CE, EMC, CB, CE, EMC, RoHS, UL, CE,EMC,CCC,ISO9001
Place of Origin
Guangdong, China
Brand Name
MACON
Model Number
MAHRW***ZA
Specifications
heat pump water heater1. -20 DC low temp. use
2.floor heating,radiation, hot water
3. COP4.5, R410a
4. CE approve
| Model | MAHRW | 010WAB/P | 015WAB/P | 020WAB/P | 025WAB/P | 030WAB/P | 035WAB/P | 040WAB/P | 040WAB/PS | 045WAB/PS | 050WAB/P | 050WAB/PS | 060WAB/PS |
| Rated Output Water | L/h | 80 | 105 | 140 | 175 | 205 | 230 | 270 | 270 | 355 | 380 | 380 | 445 |
| Rated Heating Capacity | kW | 3.7 | 4.8 | 6.5 | 8.0 | 9.5 | 10.5 | 12.5 | 12.5 | 16.5 | 17.5 | 17.5 | 20.5 |
| BTU/h | 12700 | 16400 | 22200 | 27300 | 32500 | 35900 | 42700 | 42700 | 56300 | 59800 | 59800 | 70000 | |
| Rated Input Power | kW | 1.00 | 1.30 | 1.80 | 2.20 | 2.65 | 2.90 | 3.45 | 3.45 | 4.55 | 4.85 | 4.85 | 5.70 |
| Rated Input Current | A | 4.5 | 5.9 | 8.2 | 10.0 | 12.0 | 13.2 | 15.7 | 6.1 | 8.0 | 22.0 | 8.5 | 10.0 |
| Rated Temp.Of Water Output | °C | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Max.Temp.Of Water Output | °C | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Power Supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 380/3/50 | 380/3/50 | 220/3/50 | 380/3/50 | 380/3/50 |
| Noise | dB(A) | 48 | 48 | 48 | 48 | 50 | 54 | 54 | 54 | 54 | 54 | 54 | 54 |
| Compressor | Rotary | Rotary | Rotary | Rotary | Rotary | Rotary | Rotary | Scroll | Scroll | Scroll | Scroll | Scroll | |
| Compressor Qty | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Fan Qty | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| Working Temp.Range | °C | -15~45 | -15~45 | -15~45 | -15~45 | -15~45 | -15~45 | -15~45 | -15~45 | -15~45 | -15~45 | -15~45 | -15~45 |
| Fan Direction | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | horizontal | |
| Refrigerant Gas Type | R410a | ||||||||||||
| Water Flow Volume | m3/h | 3 | 3 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 6 |
| Circulating Water Out/inlet | inch | 3/4 | 3/4 | 3/4 | 3/4 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Recyching Water Inlet | inch | / | / | / | / | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 |
| Main Unit Net Dimensions(L/M/H) | mm | 930/350/550 | 930/350/550 | 1005/360/620 | 1005/360/620 | 1115/470/700 | 1115/470/700 | 1115/470/945 | 1115/470/945 | 1115/470/945 | 1115/470/1250 | 1115/470/1250 | 1115/470/1250 |
| Main Unit Shipping Dimensions(L/M/H) | mm | 1035/395/585 | 1035/395/585 | 1095/405/650 | 1095/405/650 | 1205/525/725 | 1205/525/725 | 1205/525/975 | 1205/525/975 | 1205/525/975 | 1205/525/1280 | 1205/525/1280 | 1205/525/1280 |
| Net Weight | kg | 30 | 35 | 41 | 50 | 65 | 70 | 85 | 85 | 90 | 112 | 112 | 115 |
| Shipping Weight | kg | 35 | 38 | 44 | 55 | 80 | 85 | 100 | 100 | 105 | 127 | 127 | 130 |
