Specifications
all in one heat pump for Multi-functions1.-15 DC low temp. use
2.R417a or R134A, COP: 4.5
3.Three-core design
4.CE approved
air source all in one heat pump Parameters
| Model | MAHRW(S) | 010ZCA-150 | 010ZCA-250 | 015ZCA-200 | 015ZCA-300 |
| Application Nuber | 2-4 | 2-7 | 2-6 | 2-8 | |
| Water Volume | L | 150 | 250 | 200 | 300 |
| Rated Output Water | L/h | 75 | 75 | 100 | 100 |
| *Solar Specification | φ58×1800×15 | φ58×1800×25 | φ58×1800×20 | φ58×1800×30 | |
| *The Specification Of Solar Coil | m | φ22×15 | φ22×20 | φ22×20 | φ22×20 |
| Rated Heating Capacity | kW | 3.5 | 3.5 | 4.5 | 4.5 |
| BTU/h | 11900 | 11900 | 15400 | 15400 | |
| Rated Input Power | kW | 0.95 | 0.95 | 1.25 | 1.25 |
| Rated Input Current | A | 4.3 | 4.3 | 5.7 | 5.7 |
| Auxiliary Electric Heater | kW | 1.5 | 1.5 | 1.5 | 1.5 |
| Rated Temp.Of Water Output | °C | 55 | 55 | 55 | 55 |
| Max.Temp.Of Water Output | °C | 60 | 60 | 60 | 60 |
| Power Supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 |
| Compressor | Rotary | Rotary | Rotary | Rotary | |
| Compressor Qty | 1 | 1 | 1 | 1 | |
| Fan Qty | 1 | 1 | 1 | 1 | |
| Noise | dB(A) | 48 | 48 | 48 | 48 |
| PTR valve | inch | 1/2″ | 1/2″ | 1/2″ | 1/2″ |
| Hot Water Outlet | inch | 3/4″ | 3/4″ | 3/4″ | 3/4″ |
| Water Inlet | inch | 3/4″ | 3/4″ | 3/4″ | 3/4″ |
| Working Temp.Range | °C | -15~45 | -15~45 | -15~45 | -15~45 |
| Fan Direction | vertical | vertical | vertical | vertical | |
| Refrigerant Gas Type | R134a | ||||
| Max. Working Pressure Tank | MPa | 0.7 | 0.7 | 0.7 | 0.7 |
| Main Unit Net Dimensions(φ×H) | mm | φ570×1600 | φ700×1620 | φ570×1880 | φ700×1750 |
| Main Unit Shipping Dimensions(L/M/H) | mm | 650×650×1700 | 790×790×1720 | 650×650×1980 | 790×790×1850 |
| Net Weight | kg | 58 | 78 | 65 | 86 |
| Shipping Weight | kg | 60 | 83 | 72 | 95 |
Note:
(1)The manual is a technical parameters measured in the following conditions:outdoor dry temperature is 20°C and wet buib temperature is 15°C ,the temperature of water inflow is 15°C and of water outflow is 55°C
(2)Using in ambient temperature:-15°C~45°C
(3)*the solar auxiliary electric heating effective.
Advantages:
Aesthetically appearance
Adopts streamline appearance,combined with indoor decoration,more high-grade,long-life.
Economic and practical
Using energy efficient compressors, low operating cost. Comprehensive power consumption is only 65% of the solar energy water heater, 25% of electric water heaters.
Environment Friendly
Using environmentally friendly refrigerants for domestic water heating, no-pollution, no emissions of exhaust residue.
Safe and reliable
Separation from water and electricity, no produce exhaust,no combustion emissions to prevent leakage and gas poisoning. Integration design, fully welded closed refrigeration system,without refrigerant pipe connections, more simple and reliable installation.

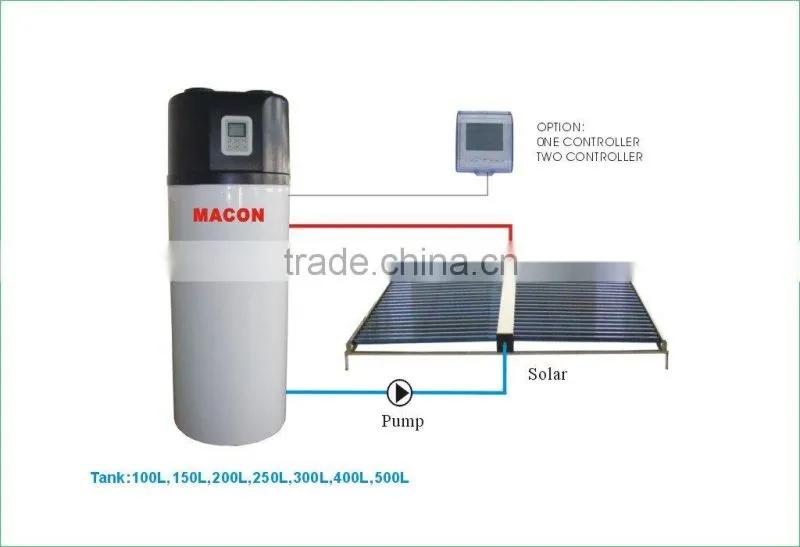

Three-core design(Combination with three heat sources)
Heat pump, electric auxiliary heat and solar integrated together (optional). When sunny, heat pump does not work, otherwise, pump start-up.Super energy-saving and supply hot water in all-weather.
Simple operation
Intelligent design, large-screen LCD display, easy operation, 30 ° c - 60° c free setting, cycle timing can be set on/off,with power failure momery function, automatic high-temperature sterilization (optional).

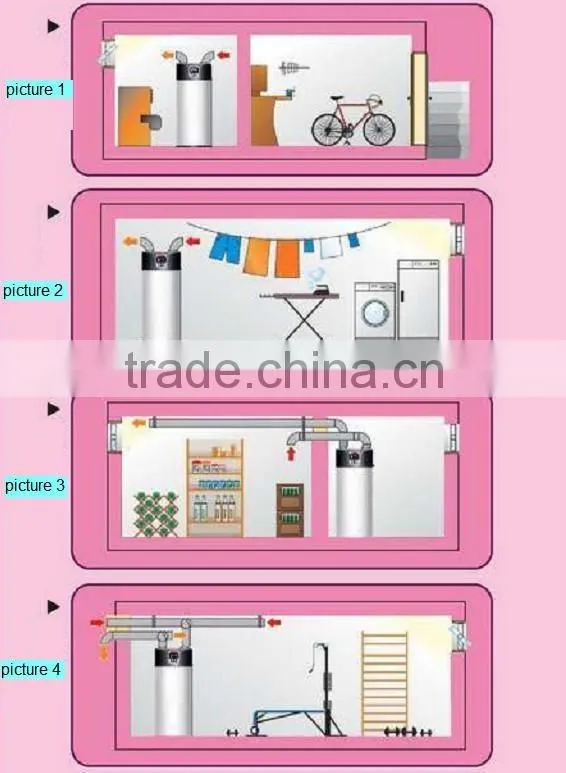

Multi-functions
Except heating function,the unit also can be used indoor waste heat recovery, partial dehumidification, storage room cooling, ventilation.
