Specifications
Heating pump with hot water, air cooler1.High efficient
2.Scroll compressor
3.Anti-freeze protection
4.CE,Rohs

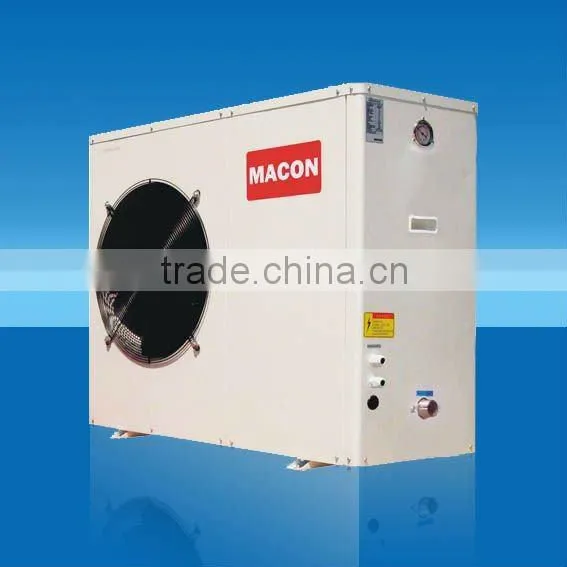

Home heating pump with hot water, air cooler
Shell material: Spraying metal
Function: heating and hot water
Heating capacity: 3-94KW
Output water temp: 60 degree
LCD display controller or Dot matrix controller
| Model | MAHRW | 030ZA/(01) |
| Rated Output Water | L/h | 225 |
| Cooling Capacity | kW | 7.5 |
| BTU/h | 25600 | |
| Input Power | kW | 2.63 |
| Input Current | A | 12.0 |
| Heating Capacity (1) | kW | 10.5 |
| BTU/h | 35900 | |
| COP (1) | W/W | 3.6 |
| Input Power (1) | kW | 2.92 |
| Input Current (1) | A | 13.3 |
| Heating Capacity (2) | kW | 9.0 |
| BTU/h | 30800 | |
| COP (2) | W/W | 3.26 |
| Input Power (2) | kW | 2.76 |
| Input Current (2) | A | 12.5 |
| Heating Capacity (3) | kW | 9.6 |
| BTU/h | 32800 | |
| COP (3) | W/W | 4.12 |
| Input Power (3) | kW | 2.33 |
| Input Current (3) | A | 10.6 |
| Rated Temp.Of Water Output | °C | 55 |
| Max Temp.Of Water Output | °C | 60 |
| Power Supply | V/PH/Hz | 220/1/50 |
| Air source heat exchanger (Evaporator) | Type | Finned heat exchanger |
| Fan | Axial flow fan | |
| Hot water side heat exchanger (Condenser) | Type | Plate heat exchanger |
| Refrigerant Type | R410a | |
| Compressor | Rotary | |
| Compressor Qty | 1 | |
| Noise | dB(A) | 52 |
| Fan Qty | 1 | |
| Fan Direction | Horizontal | |
| Water Flow Volume | m3/h | 2 |
| Water Out let/Water In let | inch | 1" |
| Unit Net Dimensions ( L/M/H ) | mm | 1115/470/700 |
| Unit Shipping Dimensions ( L/M/H ) | mm | 1205/525/725 |
| Net Weight | kg | 65 |
| Shipping Weight | kg | 80 |
|
Note: Cooling:Outdoor air temp:DB35°C/WB24°C,Outlet water temp: 12°C, Input water temp: 7°C; (1)Heating:Outdoor air temp:DB20°C/WB15°C,water tank water temperature from15°C heating to 55°C; (2)Heating:Outdoor air temp:DB7°C/WB6°C,Outlet water temp:45°C,Input water temp:40°C; (3)Heating:Outdoor air temp:DB7°C/WB6°C,Outlet water temp:35°C,Input water temp:30°C; Using in ambient temperature:-15°C~43°C; | ||
Wide application
Apply to hotel , apartments , household , villa , factory , school , foot massage , sauna , bath house , SPA Center , beauty salon , fitness center , swimming pool , aquaculture etc , places which need cold and hot water . Can configure different types of end-equipmnet which running by water , such as fan coil , floor heating , heat radiation , insulation tank . The modular construction is apply to all kinds of projects , really the best choice for the office building , hotels , hospital etc .
high efficiency and energy saving
Using high efficient scroll compressor and heat exchanger, its heat transfer ability is improve 10% energy efficiency, compared to the old products.
dual-core design super heating
Can combine EVI heat pump technology (optional) and auxiliary electric heating, freedom of choice, all-weather, can meet different area’s user demand .
water spray condensing (optional
When Cooling operation, the environment temperature above 35 °C, automatic open additional spraying water cooling system, ensure the unit provide cooling in extremely high temperature.
solar water pump solar water pump solar water pump solar water pump
Integrated design ,Multi-protection, Safe and reliable
Heat pump system is fully-welded, built-in cold and hot water flow protection,compressor air discharge temperature protection,high and low pressure protection,compressor over-current and power supply fault phase protection,anti-freeze protection water system, automatic defrost, automatic load regulation, automatic parameters memory protection, etc.
