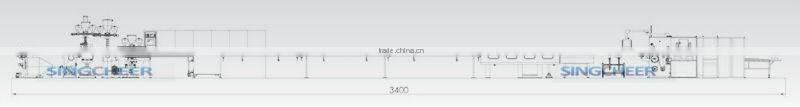

Automotive Wire Line with Double Coiler High Speed Insulation Line
Friendly operation interface
Continuous production for whole line
Max line speed: 1000-1200m/min
Various packaging machines:

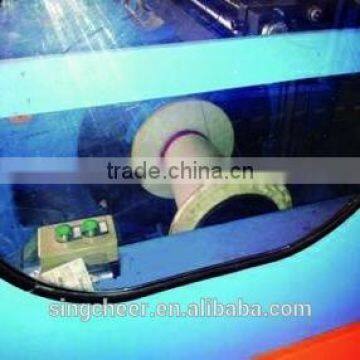

SPS spooler for conical spool
Dual coiler

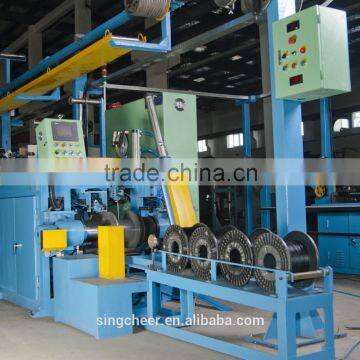

Barrel Coiling Machine
300 single reeler
400 Semi auto dual take up for conical spool
630 Semi auto dual take up for cylinder spool
Item |
Equipment |
65/30 HS Insulation Line |
65/30/30 HS Insulation Line |
1 |
Pay-off |
630 flyer pay-off (SUS or Casting iron) |
|
2 |
Tension Unit |
315 hystereis brake |
|
3 |
Preheater |
Proton HF preheater |
|
4 |
65mm Extruder
|
200KG/h 150rpm 45KW |
|
5 |
35mm Sub-extruder
|
50KG/h 200rpm 15KW |
|
6 |

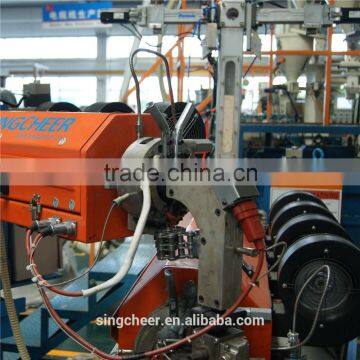

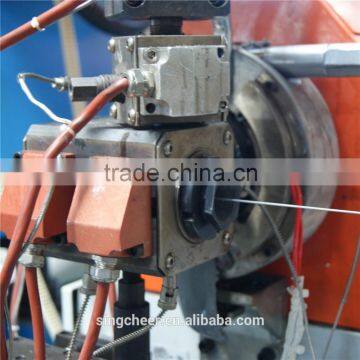

Crosshead |
S7 fix center Crosshead |
SQ7 automatic QCC system |
7 |
65mm Material Mix
|
300KG material mixing system |
|
8 |
30mm Material Mix
|
60KG material mixing system |
|
9 |
Vacuum Hopper |
300KG vacuum hopper
|
|
10 |
Pressure Gauge |
0-100Mpa |
|
11 |

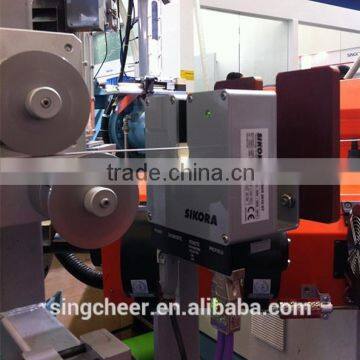

Laser Controller |
Sikora 2100XY laser control |
|
12 |
First Cooling |
4M telescope cooling trough |
|
13 |
Pass or Printing |
3.5M pass trough/drying machine+HS printer |
|
14 |
Second Cooling |
8M sprayed cooling trough |
|
15 |
Capstan&Multi-pass |
318 multi-pass sprayed cooling trough(100-150m) |
|
16 |
Drying System |
700 drying trough+160 water drying machine |
|
17 |
Packing System |
dual coiler/cone reel take-up/ barrel coiling machine |
|
18 |
Quality Control |
laser contro/Lump test/Spark tester |
|
21 |
Control System |
IPC, WinCC + Profibuss / 10”touch screen |
|
22 |
Drive |
380V 50HZ AC inverter motor |
|
