High Speed Extrusion Line Application:
The extrusion line is one of the cable machine systems, for single color, skin, single/double stripe extrusion. With more than 15 years experience in automotive wire and cable field, Singcheer can supply best equipment with high quality and excellent performance.

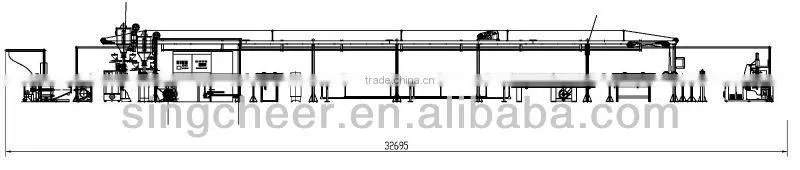

Layout_65+35 Automotive Wire Line(auto coiler)_Wire Packing Machine
Insulation Line Features:
- Automatic and continuous production
- Intellect interface
- Synchronous acceleration or deceleration
- Electrics and bearings with international famous brand
Insulation Line Full View:
Insulation Line Composition:
Item |
Equipment |
65/30 HS Insulation Line |
65/30/30 HS Insulation Line |
1 |
Pay-off |
630 flyer pay-off (SUS or Casting iron) |
|
2 |
Tension Unit |
315 tension controller |
|
3 |
Preheater |
Proton HF preheater |
|
4 |
65mm PVC Extruder
|
200KG/h 150rpm 45KW |
|
5 |
30mm Sub-extruder
|
50KG/h 200rpm 15KW |
|
6 |
Crosshead |
S7 fix center Crosshead |
SQ7 automatic QCC system |
7 |
65mm Material Mix
|
300KG material mixing system |
|
8 |
30mm Material Mix
|
60KG material mixing system |
|
9 |
Vacuum Hopper |
300KG vacuum hopper
|
|
10 |
Pressure Gauge |
0-100Mpa |
|
11 |
Laser Controller |
Sikora 2100XY laser control |
|
12 |
First Cooling |
4M telescope cooling trough |
|
13 |
Pass or Printing |
3.5M pass trough/drying machine+HS printer |
|
14 |
Second Cooling |
8M sprayed cooling trough |
|
15 |
Capstan&Multi-pass |
318 multi-pass sprayed cooling trough(100-150m) |
|
16 |
Drying System |
700 drying trough+160 water drying machine |
|
17 |
Packing System |
dual coiler/cone reel take-up/ barrel coiling machine |
|
18 |
Quality Control |
laser contro/Lump test/Spark tester |
|
21 |
Control System |
IPC, WinCC + Profibuss / 10”touch screen |
|
22 |
Drive |
380V 50HZ AC inverter motor |
|

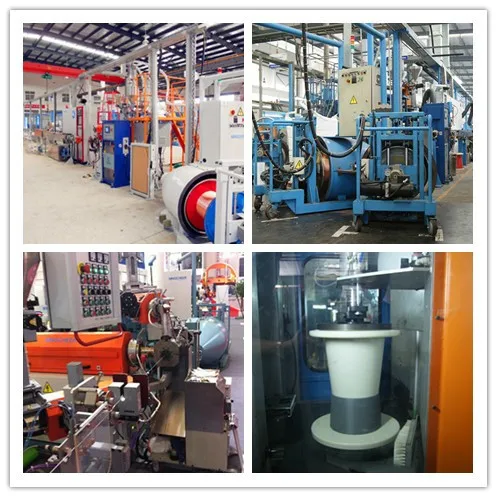

Reference:
Certification:
