Fengine S3800-28T 24 Port Fiber Optic Network Switch
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
16
Transmission Rate:
10/100Mbps
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Good Flatness FTTH Optical Receiver SupplierNegotiableMOQ: 1 Set -
Mini Type FTTH Catv Optical ReceiverNegotiableMOQ: 1 Set
-
FiberHome GTN300 Series Packet Access Products Networking EquipmentNegotiableMOQ: 1 Unit
-
FiberHome F-engine AN5006-11 EOCNegotiableMOQ: 1 Unit
-
FiberHome Fengine B2161-2E14TX ConverterNegotiableMOQ: 1 Unit
Products Status
Stock
Ports
16
Transmission Rate
10/100Mbps
Function
LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode
Full-Duplex
Certification
CE,FCC,RoHS
Switch Capacity
12.8G
Brand Name
Fiberhome
Model Number
Fengine S3800-28
Place of Origin
Hubei, China

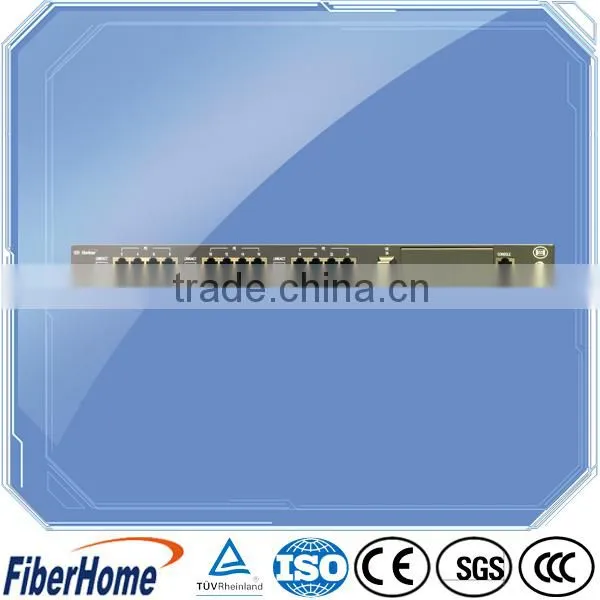

Fengine S3800-28T 24 port Fiber Optic Network Switch
Fengine S3800 series switches (S3800) are next-generation Fast Ethernet devices developed by FiberHome to provide high-performance access and aggregation to campus networks. The S3800 series switches offer Layer 2/3 wire-speed switching capability for all ports and offer 4 GE ports to meet the requirement of multiple Gigabit uplink. It delivers premium levels of intelligent and resilient performance, security and reliability for robust switching. The customers can deploy network-wide intelligent services, such as advanced quality of service(QoS),rate limiting, access control lists(ACLs), multicast management and high performance IP routing while maintaining the simplicity of legacy LAN switching.

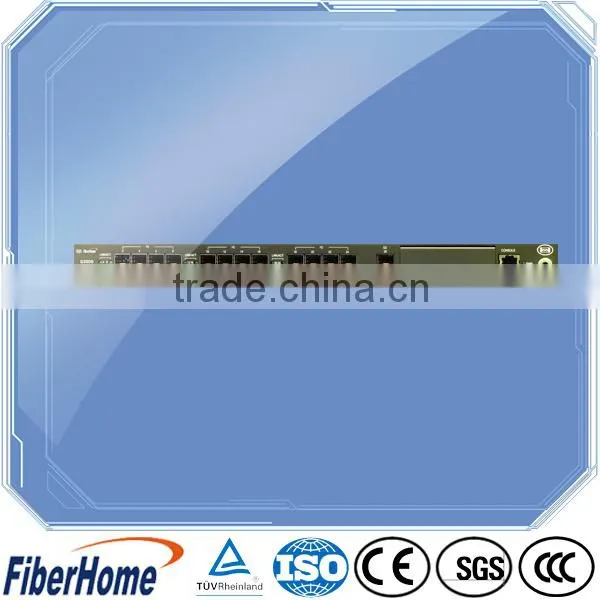

| Features | S3800-28T-FS | S3800-28F-FS |
| Ports | 24*10/100Base-Tx 1 extended slot 2*1000Base-X SFP |
24*100Base-Fx SFP 2*1000Base-X SFP 1 extended slot |
| Optional subcards | 2 GE combo ports subcard 2 GE optical ports subcard |
|
| Throughput | 9.6 Mpps | |
| Switching capacity | 12.8 Gbps | |
| MAC address table | 16K | |
| VLAN | 4K VLANs 1:1 & N:1 VLAN Mapping QinQ, selective QinQ |
|
| Trunk | LACP 8 aggregation groups at most, up to 8 FE ports or 4 GE ports in each group |
|
| IP routing | Static routing, RIP, OSPF | |
| Multicast | IGMP snooping, IGMP filter and IGMP fast leave Multicast replication between VLANs |
|
| Reliability | STP(IEEE 802.1d), RSTP(IEEE 802.1w), MSTP(IEEE 802.1s) ERPS(G.8032) R-Link protection VRRP |
|
| QoS/ACL | Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type and VLAN ID Time range ACL Storm control Rate limiting with granularity at 64Kbps Flexible scheduling algorithms, including SP/PQ,RR,WRR,DRR,SP/PQ+WRR,SP/PQ+DRR 8 queues on each port WRED 802.1p priority and DSCP priority |
|
| Security | User privilege management and password protection Protection against DoS attack, ARP attack; IP source guard Preventing unauthorized access by binding of the IP address, MAC address, interface Port isolation Blackhole MAC address entries Limit on number of learned MAC addresses 802.1x authentication, RADIUS authentication SSH v2.0 CPU protection |
|
| Energy saving | Dynamic fan speed adjusting | |
| Management & maintenance | Port mirroring and RSPAN(remote port mirroring) Configuration via CLI, Telnet, Console port SNMP v1/v2/v3, RMON Fengine Wview GUI management platform based on SNMP Upgrade via FTP,TFTP,Zmodem 802.3ah Port loopback detection |
|
| Operating environment | Operation temperature: 0℃ to 50℃ Relative humidity:10%-90% (non-condensing) |
|
| Input voltage | AC: Rated voltage range:100V to 240V AC, 50/60Hz Maximum voltage range:90V to 264V AC, 50/60Hz DC: Rated voltage range: -48V to -60V DC Max voltage range: -36V to -72V DC |
|
| Dimensions(W×D×H)mm | 440×260×44 | |
| Power consumption | <30 W | <50 W |
| Weight | <2.5 kg | <2.5 kg |
