S2200ME 10/100M Network Switch

S2200ME 10/100M Network Switch thumbnail-1
S2200ME 10/100M Network Switch photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, 8/16/24
Transmission Rate:
10/100Mbps
Contact Supplier Request Quote Chat Now
Wuhan Fiberhome International Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, 8/16/24
Transmission Rate 10/100Mbps
Function POE, QoS, SNMP, VLAN Support
Communication Mode Other, Full-Duplex & Half-Duplex
Certification CE,FCC,RoHS
Switch Capacity 8.8Gbps
Brand Name FiberHome
Model Number S2200ME-PAF series
Place of Origin Hubei, China

S2200ME 10/100M Smart Fiber Network Switch



Product Description



FiberHome S2200ME-PAF series products are newly-released carrier Ethernet PoE (Power over Ethernet) switches. Including 8/16/24 electrical ports(10/100M) with PoE function and 2 combo ports (SFP or 1000M electrical port). Besides wire-speed forwarding, QinQ, VLAN-based service control, ACL, multicast, QoS functions, the S2200ME-PAF also support IEEE802.3af and IEEE802.3at PoE standards, it supplies power to IP telephones, wireless LAN Access Points, webcams and other connected appliances via LAN cabling as well as data. With visualized graphical interface management system, enables cluster management, and flexible PoE strategy, the S2200ME-PAF

series PoE switches address various access requirements in broadband network.





Item S2208ME-PAF S2216ME-PAF S2224ME-PAF
Interface   user port

8× 10/100BASE-TX PoE port + 2 × 1000M combo port

16× 10/100BASE-TX PoE port + 2 × 1000M combo port

24× 10/100BASE-TX PoE port + 2 × 1000M combo port
console port RJ-45 connector
Performance

Interface  capacity

5.6Gbps

 7.2Gbps  8.8Gbps

Packet forwarding rate

 4.17Mpps 5.36Mpps 6.55Mpps

MAC address  table capacity

 16K

MAC address learning  rate

 Wire-speed

MAC address  table function

Manually add/delete MAC address table;

MAC address  aging time configurable;

MAC based load balancing on port/trunk group.
Layer2 Function

VLAN

Support port-based VLAN, IEEE802.1Q VLAN, maximal concurrent VLAN

number is up  to 4K;

Support multicast VLAN; Support QinQ;

Support PVLAN

Support VLAN mapping(1:1,N:1)



Trunk

Link aggregation, compliance with IEEE802.3ad;

Support maximal 14 groups with each group containing 8 ports;

Aggregation efficiency 100%

Broadcast control

Support broadcast contro l, multicast control,

DLF packet control

Spanning tree protocol

Support STP/RSTP/MSTP

Ethernet ring protection

Support ESR, 200ms protection

Jumbo frame

2048 bytes
Port

Port characteristics

Port rate auto-negotiation;

IEEE802.3x flow control(full duplex)/back pressure flow control(half duplex);

MDI/MDIX;

Port-based loop -back testing

Port mirroring

Support port- based 1:1  or n:1  mirroring;

Support  MAC-based mirroring

Port rate limiting

Support port-based rate limiting,-bidirectional 64Kbps

Multicast

Layer2 multicast protocol: IGMP Snooping;

Max. Multicast group items: 1024;

Support inte-r VLAN multicast duplication
Qos/ACL



Support traffic flow classification based on  MAC

address/VLAN ID/802.1p;

Support max. 1024 ACL items;

Support 802.1p pr iority based on  4 queues;

Support SP/WRR/SP+WRR scheduling algorithm;

Support flow-based priority tagging;

Support QoS priority remapping
PoE characteristics

Support IEEE802.3af/IEEE802.3at;

Power supply statistics. On each PoE port  and the whole

equipment enabled;

The priority of PoE port configurable;

The max. output power of PoE port configurable;

In the  case of the  power of powered device overload, auto/

manual mode enabled to proceed PoE port management;
Networking management


 Mode

Telnet, CLI, Web, SNMP v1/v2/v3
Type

In-band
Function

Remote function testing & trouble shooting;

Support SNMP/web/telnet/console based network management;

Configuration auto download enabled;

Support cluster network management, max. 128 sets management

enabled;

Support TFTP software upgrade.
Product description



 Power supply

AC: 100~ 240V;

DC: -36 ~ -72V

Working environment

Working  temperature:-5 ~ 550C;

Storage  temperature:-20 ~ 850C;

Working humidity: 10~ 90%( indoor, non-condensing)

Antightning



Power: more than 6KV;



Port: more than 2KV

Max. power consumption (full

load)

150W

 400W 400W

Power( PoE)

124W

 370W 370W

physical demension

(W*D*H)

300*240*44mm

  440*340*44mm  440*340*44mm

Weight

2.24kg

 3.66kg
 4.82kg

Heat dissipation

Thermal Fan





  • Rich service support capability
  • Powerful control capability for user access
  • Profound multicast duplication functionablity
  • High reliability
  • Advanced QoS strategy and safety machanism
  • Perfect Management & Maintenance



Rich service suppor t capability



     S2200ME-PAF series Ethernet switches support PoE(Power over Ethernet) technology, allow IP telephones, wireless LAN Access Points, webcams and many other connected appliances to receive power as well as data over existing LAN cabling, without needing to use the additional power supply that facilitate the network deployment and management.

     The S2200ME-PAF complies with both IEEE802.3af and IEEE802.3at international standards, enable supplying power with network terminals which 15.4W power per port, and 30W power in maximum.



Powerful control ability for user access



     The S2200ME-PAF supports 802.1x, which requests identification authentication when subscriber accesses network and offers remote function testing and trouble-shooting. It enables the user

access limitation via MAC address number, support MAC address and port-based binding, maximally ensure the validity of user access.

     The S2200ME-PAF enables port/VLAN based rate limiting function, support rate control over ingress/egress port with the minimal granularity of 64Kbps, which contribute to prevent malicious action from occupying network bandwidth.

     The S2200ME-PAF provides 4K active 802.1Q VLANs, support SVLAN, PVLAN, together with traffic flow based priority tagging, QoS priority re-mapping based on user requirement, which greatly

guarantee the user experience to IPTV/VoIP etc. delay sensitive services.





Profound multicast duplication functionality



     The S2200ME-PAF supports 1K multicast group and versatile layer2 multicast protocols, such as single VLAN, multi-VLAN based IGMP Snooping, IGMP Filter, IGMPFast-Leave, etc.

    The S2200ME-PAF supports inter-VLAN multicast duplication, port-based multicast rate limiting & flow  traffic statistics, which fully meet the operation requirement for IPTV/VOD service.





High reliability



     The S2200ME-PAF supports STP/RSTP protocols, and also introduce innovative technologies including ESR Ethernet ring protection that make assure 200ms recovery. It enables service operator to protect multi-type network topology more flexibly, and ensures the reliable operation over entire

network as well.



Advanced QoS strate g y and safety mechanism



     The S2200ME-PAF supports 4 queues based priority scheduling, enable service differentiation, flow classification, flow-based strategy, port-based/flow-based mirroring function, which ensures both wire-speed forwarding over every port under any combined condition and high-quality access for NGN/IPTV/broadband access services.

     The S2200ME-PAF providesARP anti-attack function, CPU protection, and user safety, etc. They support 1K ACL items, MAC table item control, port based separation, and packet filtering, etc. technologies that make operator's network more intelligent and safety.



Perfect maintenance & manageability



The S2200ME-PAF is easy for use and deployment, support versatile maintenance and management mode, realize wholly network running monitor. It supports SNMP v1/v2/v3, blog record, VLAN/port based traffic flow statistics, CLI, Web, graphical management mode. The S2200ME-PAF also features perfect operation & maintenance functionalities, which enables operator to manage

network in easy way thus decrease maintenance cost while great advance product

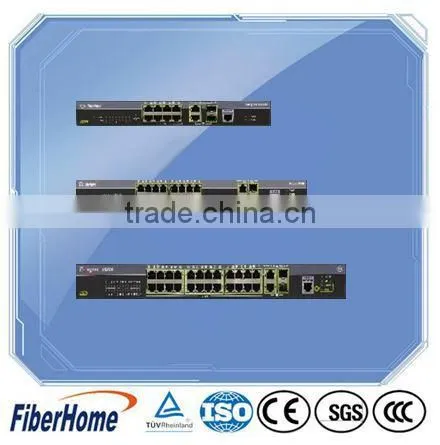

Fengine S2200ME-PAF Series configurations listed as below:

S2200ME 10/100M Network Switch



S2200ME 10/100M Network Switch



S2200ME 10/100M Network Switch
