High efficiency 250W mono solar panel with TUV,CE,CEC
1.What is 100% TUV standard flash test
Flash test machine with TUV standard reference solar panel,all Propsolar Panel is tested with 100% TUV standard or standard higher than TUV standard
2.Risun Solar Panel Descprition
RSM60-156M Series solar panel is connected in series by 60 pieces of 156mm×156mm Mono Crystalline silicon cells. Includes 220W, 230W, 240W, 250W.
3.Risun Solar Panel Characteristics
1)Manufactured according to international quality and Environment Management
System (ISO9001, ISO14001)
2)High efficiency crystalline silicon solar cells
3)High transmission Iow iron tempered glass, strong mechanical resistance
4)Anti-ageing EVA and excellent anti-climate back sheet
5)Anodized aluminum frame improves load resistance capabilities for heavy wind loads.
6)Standard waterproof junction box
7)High endurance to different weather
8)Good and friendly package with less transportation and storage space.
4.Risun Solar Panel Advantages
1. Reliability with guaranteed +/-3% output power tolerance.
2. High conversion efficiency, excellent performance in weak light.
3. High transmission low-iron tempered glass.
4. Rugged design to withstand high wind pressure and snow load, and extreme temperature variations.
5. Rigorous quality control meeting the highest international standards ISO9001 quality management system.
5.Recommended applications
1. Residential roof top systems
2. On-grid utility systems
3. commercial or industrial systems
Warranty
5years product warranty
90% power output 10 years
80% power output 25 years
250W mono Electrical Characteristics | |||||
(Values at Standard Test ConditionsAM1.5 Irradiance:1000W/ m² T:25°C) | |||||
ITEM NO. |
RSM-230M |
RSM-235M |
RSM-240M |
RSM-245M |
RSM-250M |
Maximum Power (W) |
230M |
235 |
240 |
245 |
250 |
Optimum Power Voltage (V mp) |
30.12 |
30.16 |
30.2 |
30.25 |
30.96 |
Optimum Operating Current (I mp): |
7.64 |
7.80 |
7.95 |
8.10 |
8.08 |
Open Circuit Voltage (Voc) |
36.0 |
36.2 |
36.3 |
36.5 |
37.92 |
Short Circuit Current (ISC) |
8.18 |
8.34 |
8.50 |
8.66 |
8.62 |
Cell Efficiency (%) |
16.4% |
16.7% |
17.1% |
17.4% |
17.8% |
Module Efficiency (%) |
14.1% |
14.4% |
14.7% |
15.0% |
15.3% |
Silicon Type |
Mono(156) |
Mono(156) |
Mono(156) |
Poly(156) |
Mono(156) |
Size of Module (mm) |
11650*990*40 |
1650*990*40 |
1950*990*40 |
1650*990*40 |
1650*990*40 |
Number of Cell (PCS) |
60(6X10) |
60(6X10) |
60(6X10) |
60(6X10) |
72(6X12) |
Weight (KG) |
19.5 |
19.5 |
19.5 |
19.5 |
19.5 |
Series Fuse Rating (A) |
15 |
15 |
15 |
15 |
15 |
Quality assurance testing:
Thermal cycling test
Thermal shock test
Thermal/Freezing and high humidity cycling test
Electrical isolation test
Hail impact test
Mechanical, wind and twist loading test
Salt mist test
Light and water-exposure test
Moist carbon dioxide/sulphur dioxide

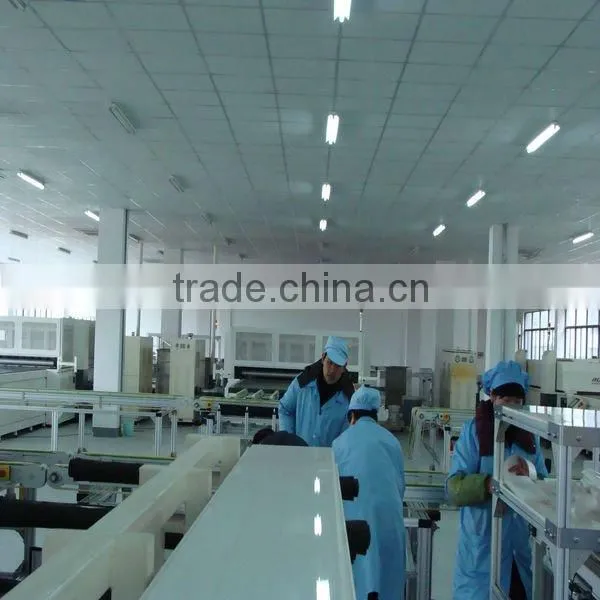

Factory Picture Show

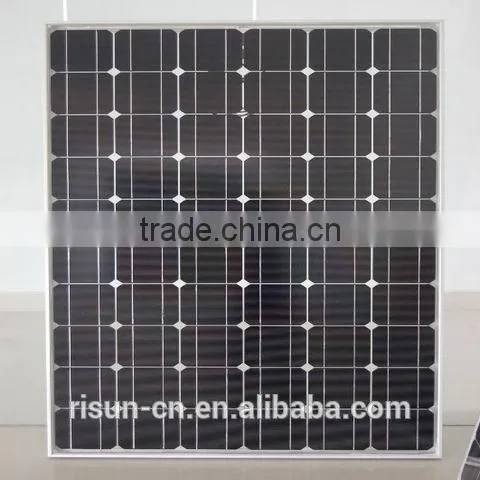

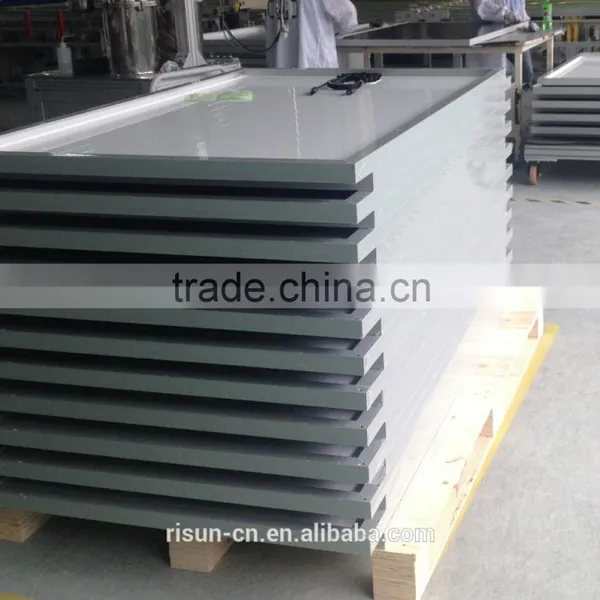

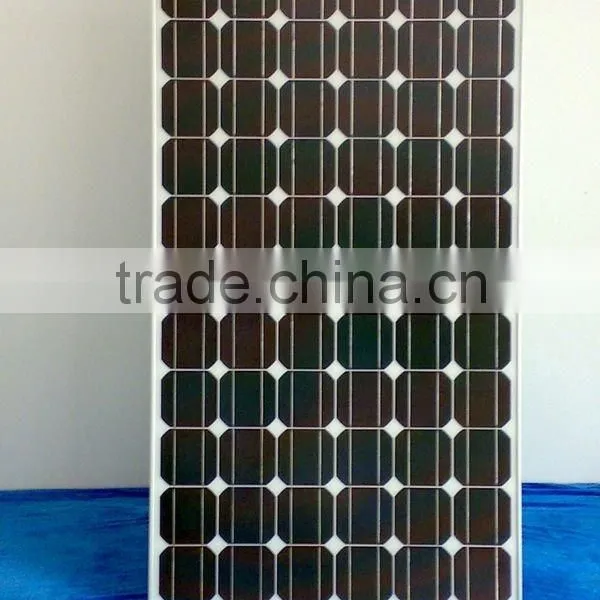

Solar Panel Pictures show

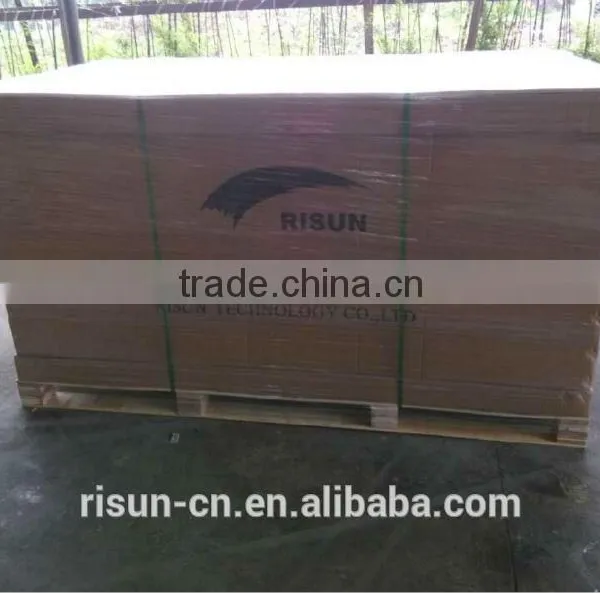

Packing Picture of solar panel Show
Certification of solar panel Show Picture
shipping time and package safety
Shipping date: 5-7days after we received deposit by the first available vessel to your country.
We will do our best to take care of you and if you have any questions please do not hesitate and feel free to contact us skype: huxiaoxia88
