Specifications
A Quality 250W Mono Solar Panel With TUV,CE,CEC Certification1.Quality A
2.Offer OEM
3.Efficiency is above 17.0%
4.CE,CEC
A quality 250W mono solar panel with TUV,CE,CEC Certification
1.What Is 100% Mono Solar Panel TUV Standard Flash Test
Flash test machine with TUV standard reference solar panel,all Propsolar Panel is tested with 100% TUV standard or standard higher than TUV standard
2.Risun Mono Solar Panel Descprition
RSM60-156M Series solar panel is connected in series by 60 pieces of 156mm×156mm Mono Crystalline silicon cells. Includes 220W, 230W, 240W, 250W.
3.Risun Mono Solar Panel Characteristics
1)Manufactured according to international quality and Environment Management
System (ISO9001, ISO14001)
2)High efficiency crystalline silicon solar cells
3)High transmission Iow iron tempered glass, strong mechanical resistance
4)Anti-ageing EVA and excellent anti-climate back sheet
5)Anodized aluminum frame improves load resistance capabilities for heavy wind loads.
6)Standard waterproof junction box
7)High endurance to different weather
8)Good and friendly package with less transportation and storage space.
4.Risun Solar Panel Advantages
1. Reliability with guaranteed +/-3% output power tolerance.
2. High conversion efficiency, excellent performance in weak light.
3. High transmission low-iron tempered glass.
4. Rugged design to withstand high wind pressure and snow load, and extreme temperature variations.
5. Rigorous quality control meeting the highest international standards ISO9001 quality management system.
5.Recommended applications of solar panel
1. Residential roof top systems
2. On-grid utility systems
3. commercial or industrial systems
6.250W mono Solar Panel Electrical Characteristics | |||||
(Values at Standard Test ConditionsAM1.5 Irradiance:1000W/ m² T:25°C) | |||||
ITEM NO. |
RSM60-156M/230W |
RSM60-156M/235W |
RSM60-156M/240W |
RSM60-156M/245W |
RSM60-156M/250W |
Maximum Power (W) |
230M |
235 |
240 |
245 |
250 |
Optimum Power Voltage (V mp) |
30.12 |
30.16 |
30.2 |
30.25 |
30.96 |
Optimum Operating Current (I mp): |
7.64 |
7.80 |
7.95 |
8.10 |
8.08 |
Open Circuit Voltage (Voc) |
36.0 |
36.2 |
36.3 |
36.5 |
37.92 |
Short Circuit Current (ISC) |
8.18 |
8.34 |
8.50 |
8.66 |
8.62 |
Cell Efficiency (%) |
16.4% |
16.7% |
17.1% |
17.4% |
17.8% |
Module Efficiency (%) |
14.1% |
14.4% |
14.7% |
15.0% |
15.3% |
Silicon Type |
Mono(156) |
Mono(156) |
Mono(156) |
Poly(156) |
Mono(156) |
Size of Module (mm) |
11650*990*40 |
1650*990*40 |
1950*990*40 |
1650*990*40 |
1650*990*40 |
Number of Cell (PCS) |
60(6X10) |
60(6X10) |
60(6X10) |
60(6X10) |
72(6X12) |
Weight (KG) |
19.5 |
19.5 |
19.5 |
19.5 |
19.5 |
Series Fuse Rating (A) |
15 |
15 |
15 |
15 |
15 |

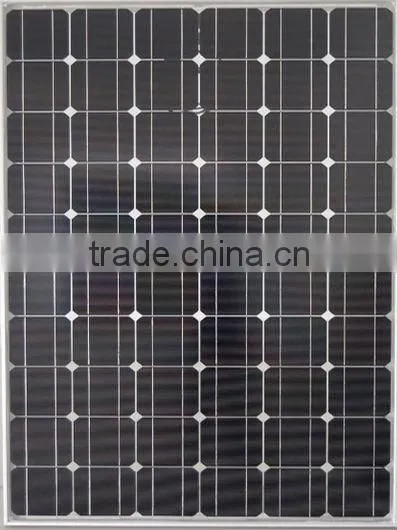

Risun Mono Solar Panel Pictures show
Risun Mono Solar Panel Factory Picture Show

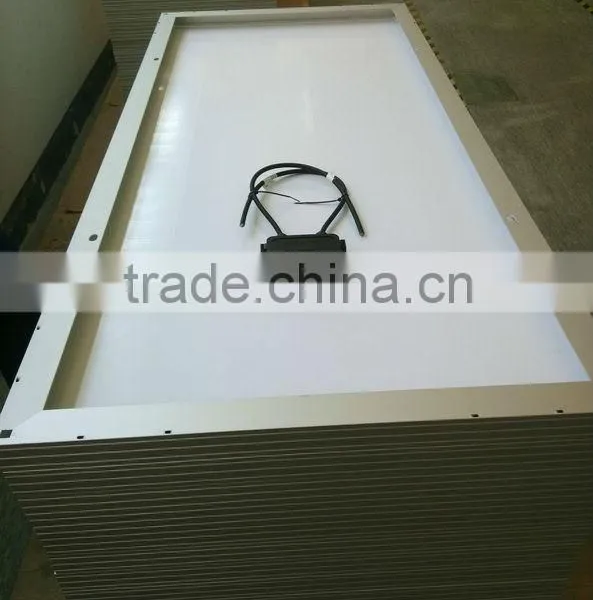

Risun Packing Picture of Mono Solar Panel Show
Certification of mono solar panel Show Picture
Risun Mono Solar Panel Exhibition Show
shipping time and package safety
Shipping date: 5-15 days after we received deposit by the first available vessel to your country.
We will do our best to take care of you and if you have any questions please do not hesitate and feel free to contact us 86-13806207509.
