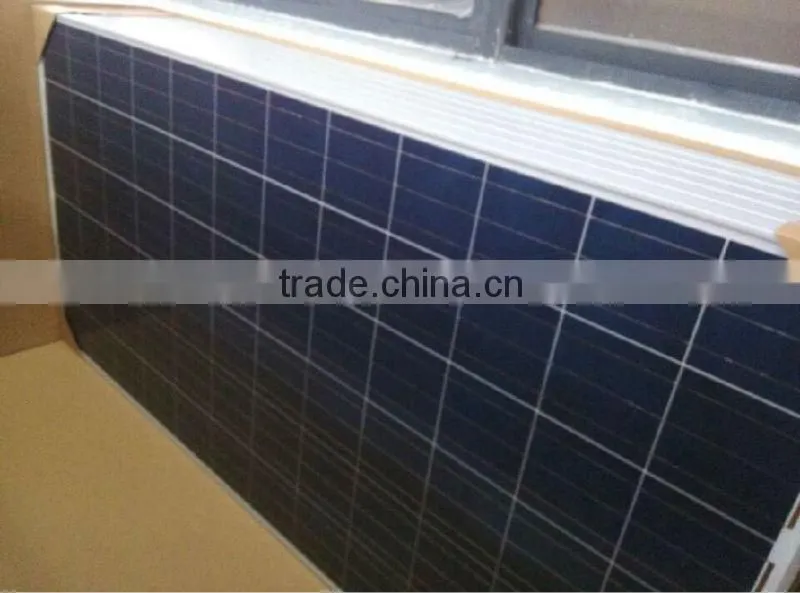

Poly Solar Panel 280W Free Shipping

Name: Poly Solar Panel 280W Free Shipping
Brand: RISUN
SKU: 113214843

US$ 0.5 - 0.63 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

RISUN

Model Number:

RSM72-156P/280W

Risun Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name RISUN

Model Number RSM72-156P/280W

Material Polycrystalline Silicon

Size 1950*990*50mm

Number of Cells 72

Max. Power 280w

Specifications

Poly Solar Panel 280W free shipping
-Tolerance 3%
-offer OEM
-Plug/Play Connectors
-High Transmission

Poly Solar Panel 280W free shipping

Technical Specs:
-Tolerance 3%
-3 Bus Bar Configuration
-Plug/Play Connectors
-High Transmission,Low Iron Tempered

Max-Power Pm (W)	270	275	280	285
Power Tolerance (%)	0/+3	0/+3	0/+3	0/+3
Max-Power Voltage-Vm (V)	35.52	35.85	36.01	36.25
Max-Power Current-Im (A)	7.60	7.68	7.78	7.86
Open-Circuit-Voc (V)	44.34	44.40	44.44	44.50
Short-Circuit-Isc (A)	8.29	8.39	8.45	8.49
Cell Efficiency η c (%)	15.41	15.69	15.98	16.27
Module Efficiency η m (%)	13.92	14.17	14.43	14.69
STD Conditions(AM1.5,1000W/mm,Cell temperature 25°C)

Full information

Number, Type and Arrangement of Cells	72pcs, Polycrystalline Silicon (6*10)
Cell Size	156×156mm
No. of Bypass Diodes	3pcs
Max Series Fuse	15A
Pm Temperature Coefficient	-0.45%/°C
Isc Temperature Coefficient	0.05%/°C
Voc Temperature Coefficient	-0.35%/°C
NOCT-Nominal Operating Cell Temperature	47°C(±2°C)
MECHANICAL PROPERTIES
Cable Type, Diameter and Length	4mm²,1000mm
Dimension ABC	1950×992×50mm
Weight	22kg
No. of Draining Holes in Frame	8
Glass Type and Thickness	High Transmit, Low Iron, Tempered Glass 3.2mm
