Specifications
High efficiency 150W poly solar panel1) high efficency
2) easy to install
3) stand heavy rain and snow
4) lower price
150w poly Solar Panel with high efficiency
Specifications
1.high quality
2.Easy maintenance
3.25 years warranty
4.Quick delivery
CE approved high effiency poly 150W Solar Panel
Electrical Characteristics RSM60-156P/150W
Maximum power at STC (Pmax) 280W |
Optimum operating voltage (Vmp) 23.1V |
Optimum operating current (Imp ) 6.53A |
Open-circuit voltage (Voc ) 29.2V |
Short-circuit current (Isc ) 7.61A |
Short-circuit current temperature coefficient ( 0.065±0.015)%/°c |
Open-circuit voltage temperature coefficient -(80±10)mV/°c |
Peak power temperature coefficient -(0.5±0.05)%/°c |
NOCT (Air 20°c; Sun 0.8kW/m wind 1m/s) 47±2°c |
Operating temperature -40°c to 85°c |
Maximum system voltage 1000V DC |
Power tolerance ±3% |
STC: lrradiance 1000W/m2,Module temperature 25,AM=1.5
Advantages:
1. Reliability with guaranteed +/-3% output power tolerance.
2. High conversion efficiency, excellent performance in weak light.
3. High transmission low-iron tempered glass.
4. Rugged design to withstand high wind pressure and snow load, and extreme temperature variations.
5. Rigorous quality control meeting the highest international standards ISO9001 quality management system.
Recommended applications:
1. Residential roof top systems
2. On-grid utility systems
3. commercial or industrial systems
Warranty
5years product warranty
90% power output 10 years
80% power output 25 years

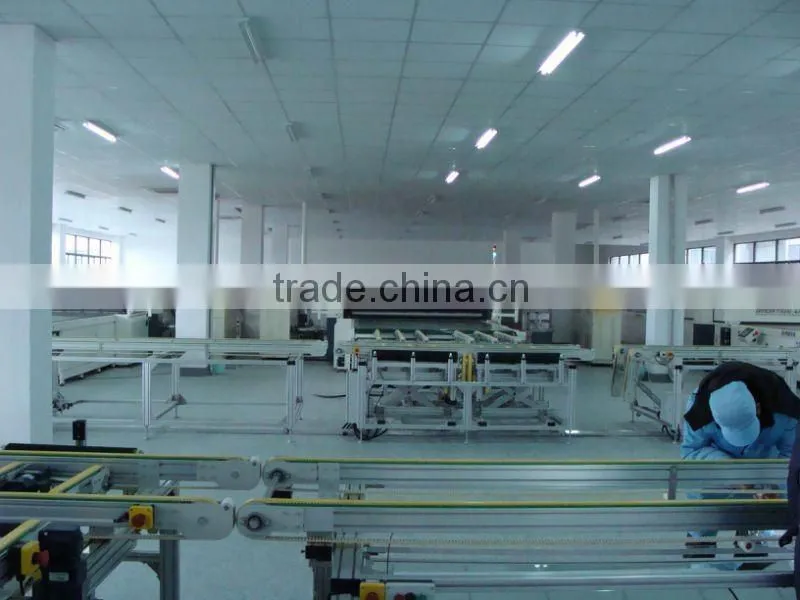

Factorry Picture Show

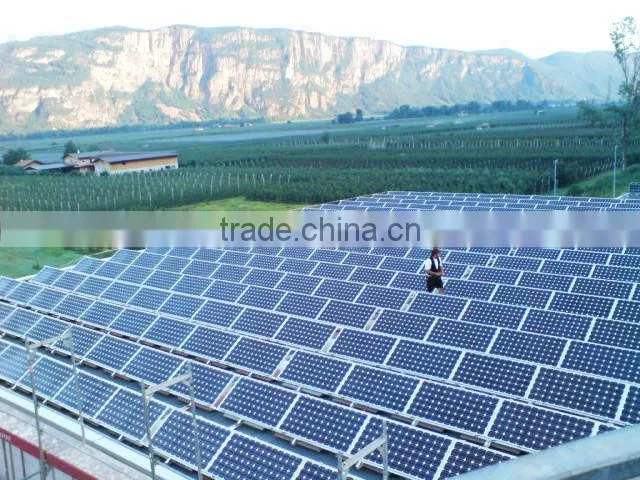

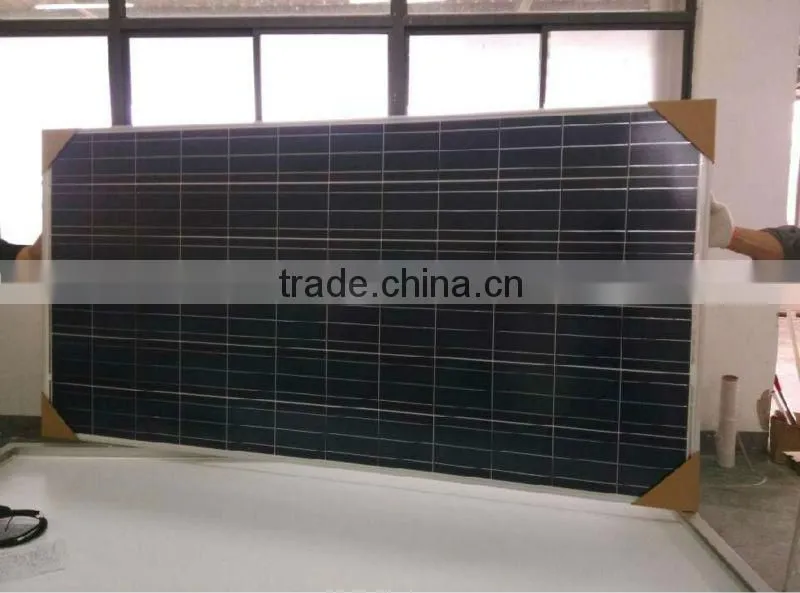

Products Picture Show
Packing Picture Show:
