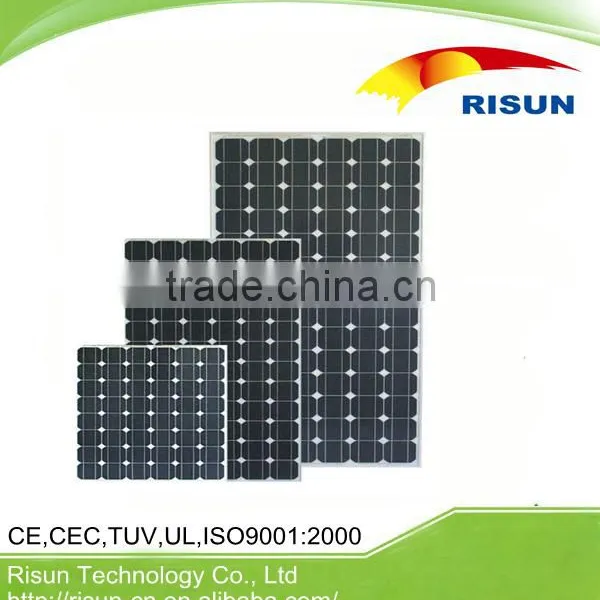

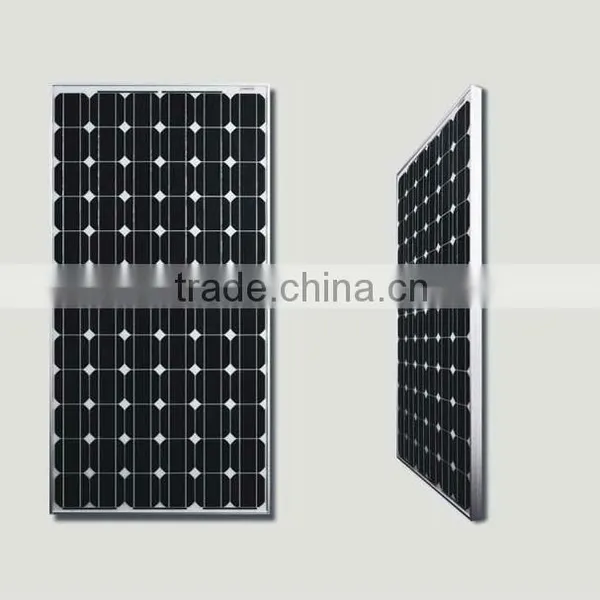

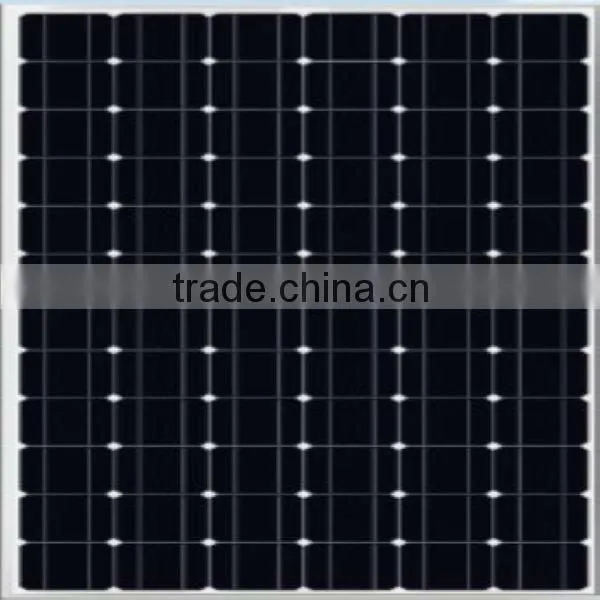

Help Center300W Mono PV Solar Panel With IEC,TUV,CE,CEC Quality Choice
Related Products
-
310W Mono Solar Panel With CE,TUV,ISO CertificationsUS$ 0.48 - 0.58MOQ: 310 Watts -
290W Poly Solar Panel With Good PriceUS$ 0.3 - 0.5MOQ: 1 Piece
-
Poly Solar Panel 280W Free ShippingUS$ 0.3 - 0.5MOQ: 1 Piece
-
270W Poly Solar Panel With TUV/CE/IECUS$ 0.48 - 0.58MOQ: 1 Piece
-
Hot Sell Solar Panel 280W Poly Solar Panel With TUV,CE CertificateUS$ 0.48 - 0.58MOQ: 1 Piece
Type |
300W |
|
Mono-crystalline silicon | ||
Maximum Power (Pmax) |
W |
175 |
Power Tolerance |
|
±5% |
Maximum Power voltage (Vmp) |
V |
35.27 |
Maximum Power current (Imp) |
A |
8.50 |
Open circuit voltage (Voc) |
V |
45.22 |
Short circuit current (Isc) |
A |
8.60 |
Size of module (Length and Width) |
1950*990*50 |
|
Frame (type, material and thickness) |
Anodized Alu. alloy frame, 46 mm thickness |
|
Quantity of cells |
72 pcs (6x12) |
|
Cell Size |
125 x 125 mm |
|
Weight |
15.0 Kg |
|
Type of junction box |
IP65 |
|
Cable type |
2 PfG 1169, 4mm² |
|
Maximum system voltage |
1000V |
|
Temperature coefficient of Isc |
+0.05%/ |
|
Temperature coefficient of Voc |
-0.34%/ |
|
Temperature coefficient of power |
-0.5%/ |
|
NOCT (Nominal operating cell temperature) |
47(+2) |
|
Insulation |
>=100MOhm |
|
Voltage Standoff |
AC2000V, DC3000V |
|
Wind Bearing |
60m/s(200kg/sq.m) |
|
Impact Resistance Hail Impact Test |
227g steel ball fall down from 1m height |
|
Glass |
high transmission, low iron, tempered glass 3.2 mm |
|
Cell Efficiency |
16.33% |
|
Module Efficiency |
13.71% |
|
Characteristics:
1) Manufactured according to international quality and Environment Management
System (ISO9001, ISO14001)
2) High efficiency crystalline silicon solar cells
3) High transmission Low iron tempered glass, strong mechanical resistance
4) Anti-ageing EVA and excellent anti-climate back sheet
5) Anodized aluminum frame improves load resistance capabilities for heavy wind loads.
6) Standard waterproof junction box
7) High endurance to different weather
8) Good and friendly package with less transportation and storage space.
Warranty :
1)10 years limited manufacturing warranty
2)12 years for 90% of warranted minimum power
3)25 years for 80% of warranted minimum power
Product name: mono solar panel 300w
300M-72 mono solar panel 300w
1. Mono-Crystalline Module
2. Mono 156 cell, 72pcs
3. Power range 260Wp-310Wp
To Know More about mono solar panel 300w? Feel easy and free to Contact Us:
24 hours, 7 days at service through: trade manager: cn1514612826ujvh , skype: huxiaoxia88,Wechat: 15162402520
