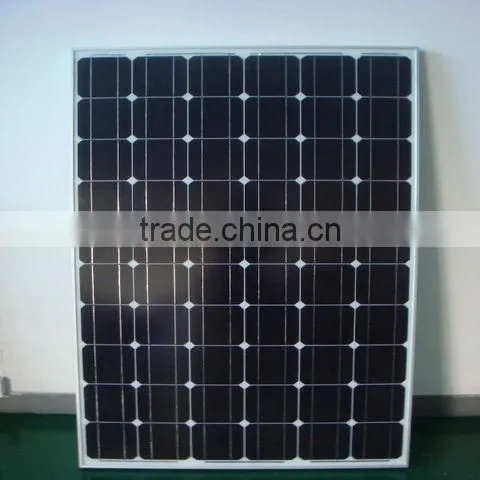

230W Mono Solar Module / Solar Panel / Solar Panel Technical Data:
| 230W Mono solar panel Electrical Data | |||
| Model number | RSM60-156M/230W | ||
| Nominal peak power(Pmax) | 230W | ||
| Open circuit voltage(Voc) | 36.93V | ||
| Short-circuit current(Isc) | 8.44A | ||
| Maximum power voltage(Vmp) | 30.16A | ||
| Maximum power current(Imp) | 7.63V | ||
| Maximum series fuse rating | 10A | ||
| Power tolerance: | ±3% | ||
| Temperature and Coefficients | |||
| NOCT | 47°C±2°C | ||
| Temperature Coefficient of Pmax(%/°C) | -0.46 | ||
| Temperature Coefficient of Voc(%/°C) | -0.348 | ||
| Temperature Coefficient of Isc(%/°C) | 0.031 | ||
| NOCT:Nominal Operation Cell Temperature | |||
| Additional Data | |||
| Number of cells | 96 | ||
| Dimensions(mm) | 1650*990*40 | ||
| Weight(kg) | 21.5 | ||
| Glass | 3.2mm tempered glass | ||
| Frame | Anodized aluminiun alloy | ||
| Junction Box | lp65 rated | ||
| Warranted Tolerance: ±5% | 25 year:80% of its nominal power rating | ||
| Certificates | IEC,TUV,CE,ISO | ||
APPLICATIONS
Solar power stations
Rural electrification, Small home power systems
Power supply for traffic, security, gas industry
12V and 24V battery charging system
Other industrial and commercial applications
Benefits
•20-year warranty on power output
•10-year warranty on materials and workmanship
•Local warehousing
•Enhanced design for easy installation and long term reliability
Features
•High module conversion efficiency through superior manufacturing technology
•+0% to +3% W positive tolerance for mainstream products
•Excellent performance under low light environment
•Anodized aluminum is mainly for improving corrosion resistance
•Highly transparent low iron tempered glass
• Certified to withstand high wind loads and snow loads (5400pa)
Warranty:We gurantee that Power output will be at least 90% after ten years and more than 80% after twenty-five years. We ensure that our panels' life is 25years or more, and our warranty is 5 years
