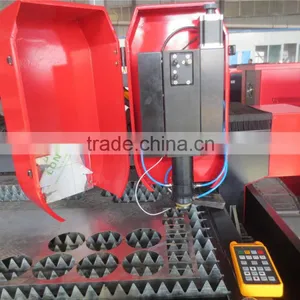

laser cutting machine meatl laser cutter
Technical structure of laser cutting machine meatl laser cutter:
1 The product adopts YAG solidstate laser optical system. The optical mode is scientific and stable. Anyway, the cut kerfs are very small and precision.
2 It adopts dual rails positioning system and ball screw driven system. The machine has the advantages of fast speed, high precision, moving smoothly, dynamic performance and long life.
3 Xaxis and Yaxis are both equipped with limited switches that used to prevent the crash caused by the over travel. Anyway, there are polyurethane anticollision blocks on the machine in case of the failure of the limited switches. The limited switches and the blocks guaranteed the operating security.
4.With the automatic programming system, the graphic files can be changed into job program directly

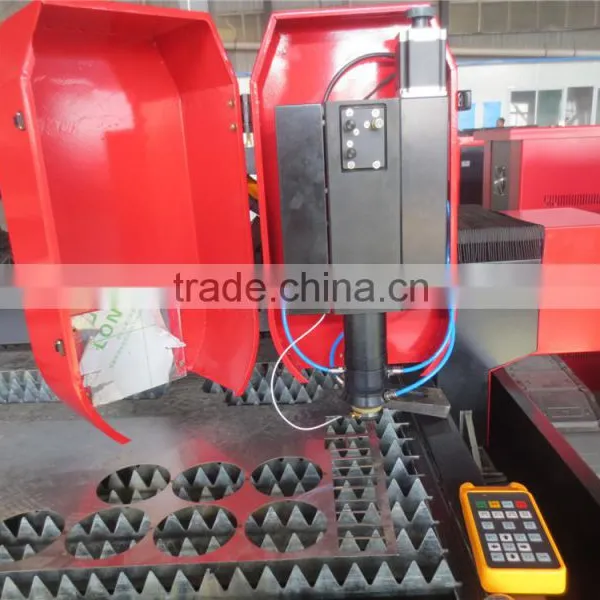

5 This equipment adopts mechanical following cutting head. Make use of the photoelectric autofcous, adjusting the focus distance, raising to process the precise degree, keeping the material surface from row wound/ damage.
Guarantee:
The machine has one year s guarantee. If it breaks down, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
How is the packing of laser cutting machine meatl laser cutter
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading.
Technical Parameters of laser cutting machine meatl laser cutter
NO. |
Model |
laser yag machine |
2 |
Laser medium |
YAG |
3 |
Laser power |
500/600w |
4 |
Laser wave length |
1064nm |
5 |
Laser pulse frequency |
0.1-500Hz |
6 |
Width of pulse |
0.2- 20ms |
7 |
Min line width |
≤0.15mm |
8 |
Positon accuracy |
0.03mm/m |
9 |
Repetition accuracy |
0.02mm/m |
10 |
Focus method |
Following and automatic adjust focus |
11 |
Guide rail |
Hiwin from Taiwan |
12 |
Transmission method |
Ball screw from Germany |
13 |
Drive system |
Servo motor and drivers |
14 |
Cooling system |
7p water chiller |
15 |
Control system |
Motion control card+PC |
16 |
Control software |
Software of RF Laser |
17 |
Graphic format support |
BMP,HPGL,PLT,DST and AL,etc |
18 |
Working environment |
Temperature:0-45°C, |
19 |
Equipment power |
0-20kw |
20 |
Power supply |
380v/50Hz |
21 |
Packaging size |
2300x2100x1500mm |
Cutting samples of laser cutting machine meatl laser cutter
