You are here Home > Product Categories > LED Chip > original Bridgelux 45mil led chip 10w high power led 12v with DOW Corning silicon
original Bridgelux 45mil led chip 10w high power led 12v
with DOW Corning silicon
10w led chip high power led 12v Parameters
Optical Characteristics
|
|
|
|
|
|
|
Absolute Maximum Rating
|
|
|
|
|
|
|
|
|
|
Note:
1. Tolerance of measurement of luminous flux is ±10%.
2. Tolerance of measurement of Vf is ±0.1V.
3. The product will be packaged in Anti-Static vacuum.
4. Please refer to High Power LED RELIABILITY TEST STANDARD for reliability test conditions.
5. Use alcohol-based cleaning solvents such as isopropyl alcohol to clean the LED Chip if necessary.

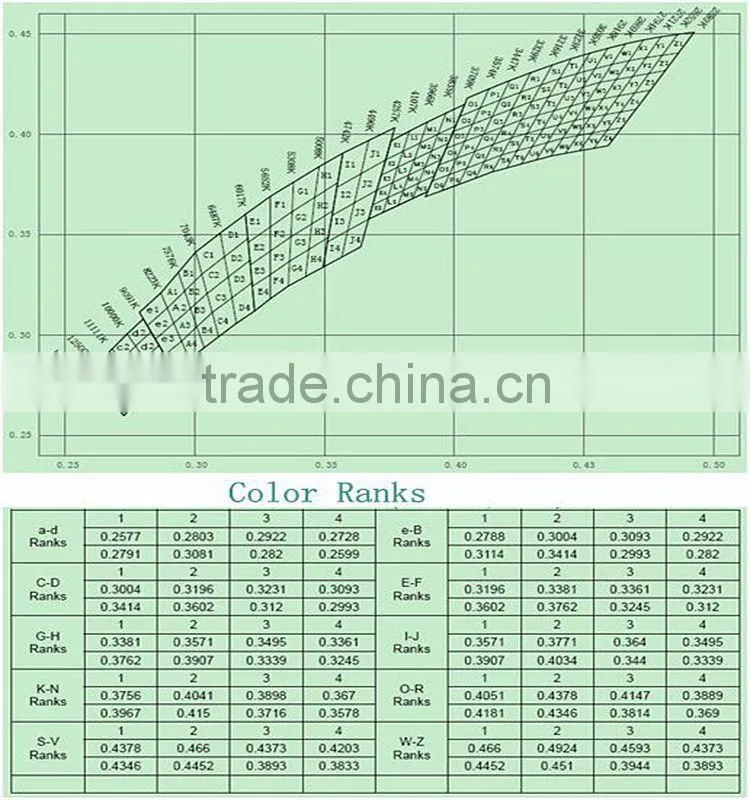

CIE Specifications
Measurement uncertainty of the color coordinates: ±0.015
More high power LED Chips
| Model | Wattage | Voltage | Chip | Lumens | CCT | CRI | Current | Angle |
| STC-010A | 10W | 27-31V | Bridgelux | 1300-1400lm/w | 2700-6500K | Ra>80 | 350mA | 120° |
| STC-020A | 20W | 30-34V | Bridgelux | 2600-2800lm/w | 2700-6500K | Ra>80 | 700mA | 120° |
| STC-030A | 30W | 30-34V | Bridgelux | 3900-4200lm/w | 2700-6500K | Ra>80 | 1050mA | 120° |
| STC-050A | 50W | 30-34V | Bridgelux | 6500-7000lm/w | 2700-6500K | Ra>80 | 1750mA | 120° |
| STC-060A | 60W | 30-34V | Bridgelux | 7800-8400lm/w | 2700-6500K | Ra>80 | 2100mA | 120° |
| STC-080A | 80W | 30-34V | Bridgelux | 10400-11200lm/w | 2700-6500K | Ra>80 | 2800mA | 120° |
| STC-100A | 100W | 30-34V | Bridgelux | 13000-14000lm/w | 2700-6500K | Ra>80 | 3500mA | 120° |
| STC-120A | 120W | 30-34V | Bridgelux | 15600-16800lm/w | 2700-6500K | Ra>80 | 4200mA | 120° |
| STC-150A | 150W | 30-34V | Bridgelux | 19500-21000lm/w | 2700-6500K | Ra>80 | 3500mA | 120° |
| STC-180A | 180W | 54-61V | Bridgelux | 23400-25200lm/w | 2700-6500K | Ra>80 | 3500mA | 120° |
| STC-200A | 200W | 64-68V | Bridgelux | 26000-28000lm/w | 2700-6500K | Ra>80 | 3500mA | 120° |
| STC-300A | 300W | 45-51V | Bridgelux | 39000-42000lm/w | 2700-6500K | Ra>80 | 7000mA | 120° |
LED Chip Advantages
- Low power consumption, high lumen with 130-140lm/w LED Luminous Efficiency.
- Original Bridgelux 45mil high power led chip with high quality and brightness.
- Low light degradation: only 5%. after3 years
- Long life span time: 50,000 hours.
- Efficient heat dissipation design.
- RoHS, CE and FCC approved.
- Warranty: 5 years.
10w led chip high power led 12v Details
high power LED Chip Application
Lighting has singnificant impact on the happiness and health of a family.
Light truly creates the ambiance and utility of a home. Superior lighting accentuates architectural features, adds mood to a dining room or bedroom, and creates visual interest above kitchen counters. Highly efficiency lights make a hallway or staircase brighter and safer.
Our Bridgelux 10w led chip high power led 12v comes in a great variety of color temperatures, allowing home owners to select their choice of lighting color. Our directional design is perfect for task and reading lights, whether it's for working in the room office or helping with homework in the family room. They add safety, save money, and make the home a happier place.
The efficient operation of a logistics facility depends on bright, reliable lighting
Storage, manufacturing and processing facilities are key enablers of modern trade and commerce. A critical element in their operation is proper illumination inside the building.
High Ceilings must be brightly and uniformly lit, with no variation in light and dark areas, to ensure safety and reduce accidents. High-performance light improves the work environment, boosts productivity and even increases employee well-being.
The fully test optical, thermal and mechanical properties of our 10w led chips high power led 12v ensure stable, predictable performance. Their efficacy and long lifetime reduces maintenance costs such as relamping.
High-quality lights made a street safe and well-traveled.
Roadway lighting provides crucial safety and vision for drivers, pedestrians and cyclists. Streets taht are bright and welcoming have a proven ability to reduce accident, incease safety and even improve commerce.
Our 10w led chip high power led 12v dramatically reduces energy and maintenance costs while optimizing uniform illumination. We deliver the required lighting levels yet consume less than half the wattage of conventional high -pressure sodium lights and last up to 30 times longer.
Packing
The moisture proof package is used to keep Moisture to a minium in the package for the reason that moisture could cause exfoliation of the contacts and damage to the optical characteristics of the 10w led chip high power led 12v..
Shipping
| Delivery | 1) Ship by express |
| 2) Ship by air | |
| 3) Ship by sea | |
| Delivery Time | 1) Sample order: 2-3 days |
| 2) Mass purchase: 7-14 days |
Payment
| Payment Method | 1) T/T: 30% in advance, balance before shipment |
| 2) PayPal and T/T are preferred | |
| 3) Cash, western union and L/C are accepted |
Our Sincerely Services
- We can provide high quality LED Chip.
- We make sure to give the most competitive prices.
- We provide 250 days warranty. During this period, you can enjoy free replacement once the LED Chip fails under proper operation.
- We have long-term cooperation with our forwarders, so we can offer you the lowest freight and the fastest services.
- We can do OEM.
- Quickly response on your inquiry.
Attention
The LED Chip is device which is meterialized by combining Blue LED Chip and special phoshyors. Consequency the color of the LED Chip is charged a little by an operating current. Care should be taken after due consideration when using LED Chip.
1. The LED Chip should be kept at 30℃ or less and 60%RH or less.
2. The LED Chip should be used within a year.
3. The LED Chip should be soldered within 168 hours (7 days) after opening the package. If unused LED Chip remains they should be stored in moisture proof packages.
4. It is recommended that a wrist band or an anti-electrostatic glove be used when handing the LED Chip.
If you need any help, just give us a call or send us an email. We'll appreciate that.
Ever Zhang Skype: sltsales10 Tel: +(86)150-7103-5762
