4 channel network car video recorder hdmi input

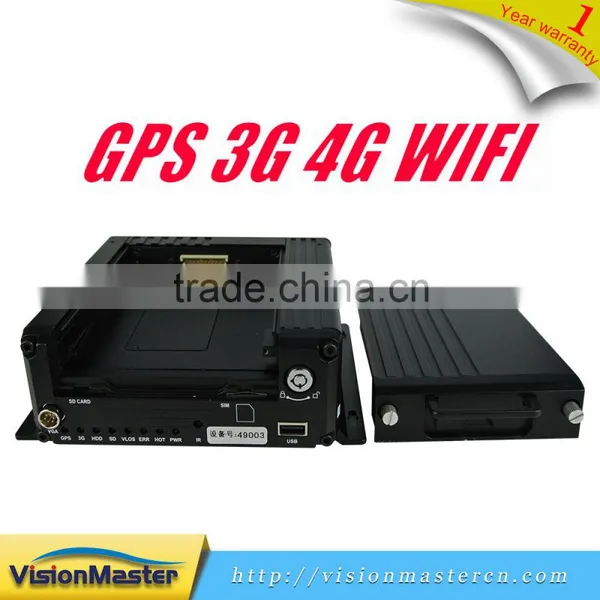

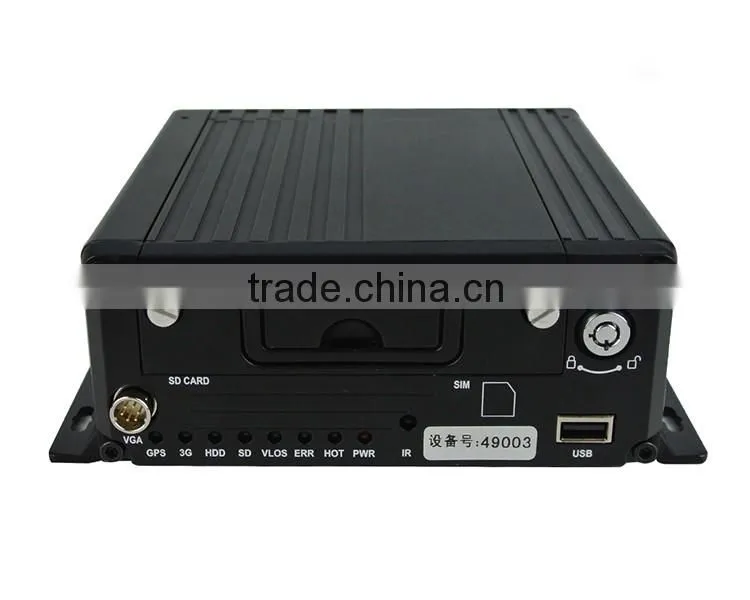

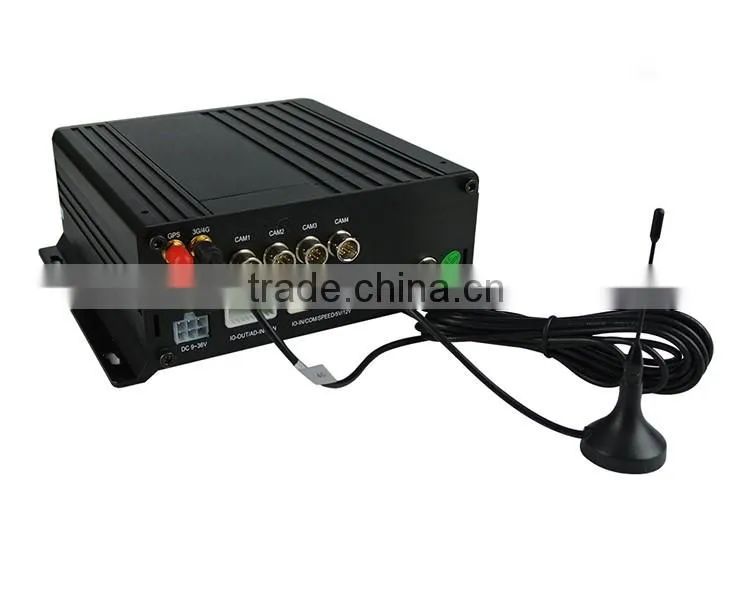

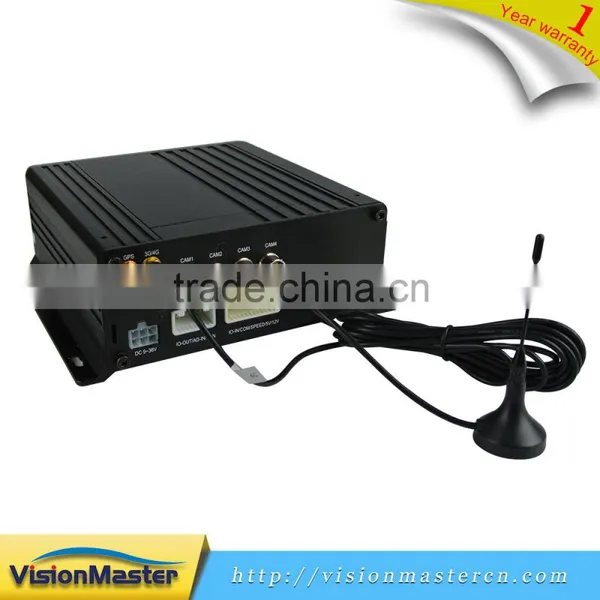

VM4004-NVR ,HIS Solution,H.264 Compression,support 4CH Networking 1080P or 4CH networking 720P HD surveillance video recording and play back.
Main Features:

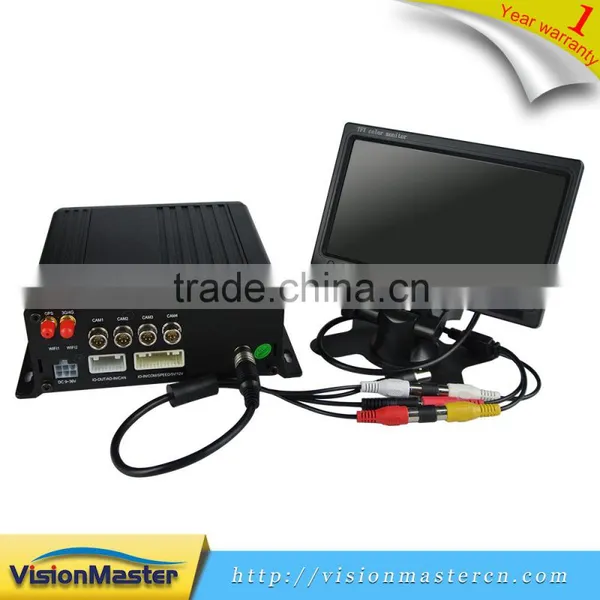

1.2CH video output (1CH CVBS video output, 1CH VGA output )
2.Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment
ensure date stablyand completely.
3. 8-38V wide voltage with low power consumption.Support Reverse Protection, over-voltage/over-current
protection.support 12V & 5V peripheral equipment power supply. Ultra low power design; Unique UPS
Technology ensures the integrity of record when power failure occurs,even can for 8-10s.

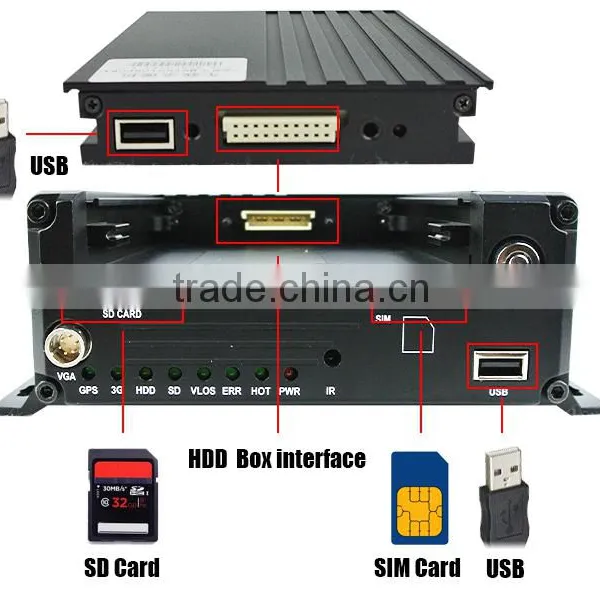

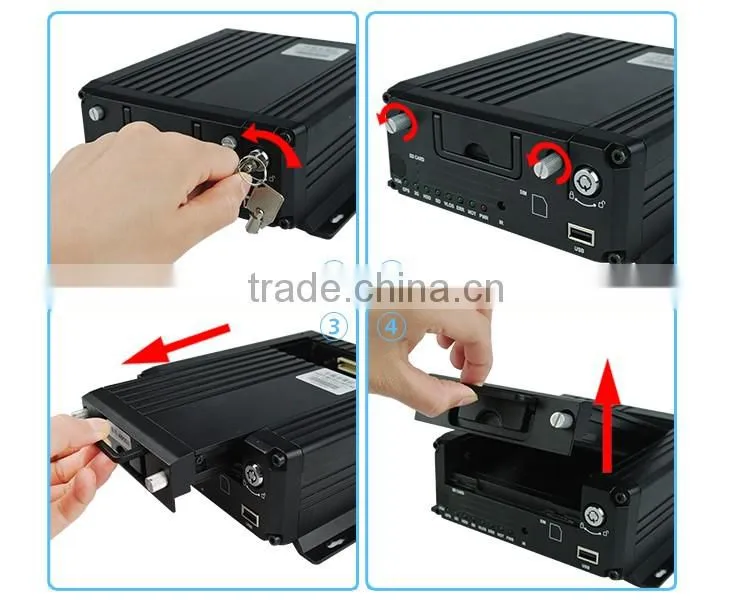

4.HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card)
5.Support 2 USB ports for backup data and DVR upgrading;
6.Support 10CH alarm input (2CH analog input + 8CH IO alarm input ),2CH independent alarm output.
7.Support 2 CAN interface Support HDD heating functions,can work in cold environment.
8.Support GPS/BD/G-Sensor Extension module;
9.Realize real-time monitor through 3G/4G; Support SMS remote configuration/control DVR; Support
Broadcast/Intercom/Text sent etc;can add oil sensor/temperature
10. Support GPS/BD,3G/4G Module Optional,WIFI extend
| Item | Parameter | |
| OS | Linux | |
| Language | Chinese/English/Others (can be customized) | |
| Video Compression | H.264 Compression Mode | |
| OSD | Overlays information such as date time and vehicle ID | |
| GUI | Graphical User Interface | Setup system parameters with the remote control. |
| Video Record System | Video Input | 4CH 720P AHD input/4CH SD input/2CH HD + 2CH SD mixed input , aviation connector, 1.0Vp-p, 75Ω |
| Video Output | 1 CVBS + VGA output for optional , 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screens | |
| Preview | Support 1 channel and 4 channels preview, Support Manual/Alarm Trigger full screen preview | |
| Resolution | 720P/D1/HD1/CIF, MAX:4 channels 720P | |
| Video Quality | 0-7 levels, 0 is the highest level, 7 is the lowest level. | |
| Video Standard | P/N/CIF/HD1/D1/720P | |
| Record Mode | The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. | |
| Audio | Audio Input | 4CH ,Aviation Plug |
| Audio Output | 1CH,Aviation Plug,The output level: 1V - 2V | |
| Alarm Input | 4Ch Alarm Input | |
| Alarm Output | 1CH Relay Alarm Output | |
| Communication Interface | 1CH RS232 or 1CH RS485 | |
| Wireless transfer | Support Built-in 3G/4G network, WCDMA,CDMA2000,TDD-LTE,FDD-LTE... | |
| Support Built-in/External WIFI,Compatible with GPRS,EDGE | ||
| Position | Support Built GPS/BD Module, can make playback analysis of vehicle routing | |
| G-Sensor | Support G-sensor | |
| Voltage & Power Consumption | Voltage Input | DC:+8V ~ +36V |
| Voltage Output | +12V/2.5A,+5V/2.5A | |
| Power-off Protection | UPS Technology,All video information can be saved automatically when the power is cut off, and make sure that all the files can not be damaged. | |
| Power Consumption | Normal Working <14W Stand-by Status <0.5W | |

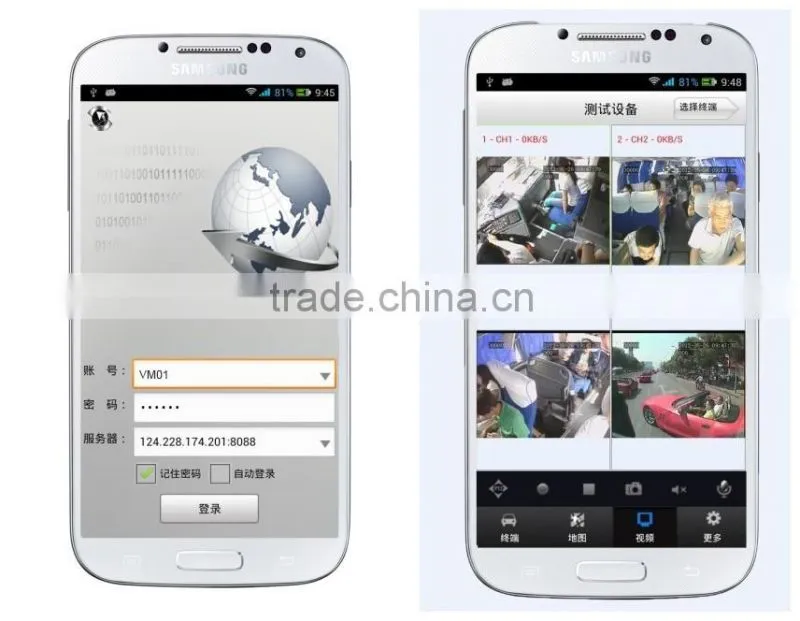

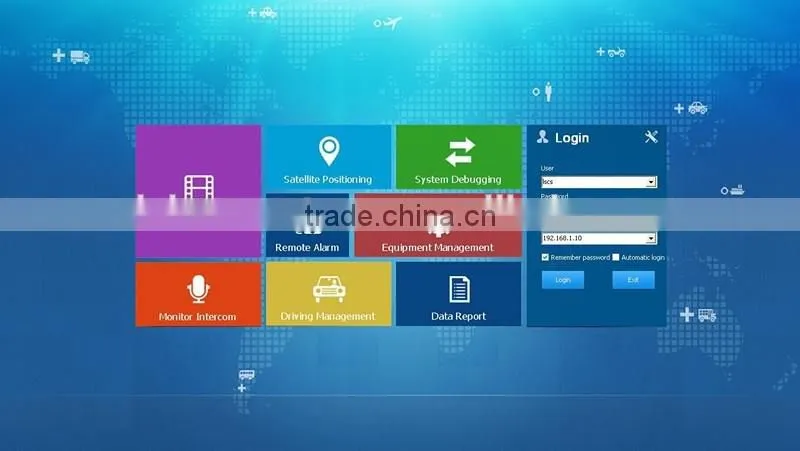

The client software :CMS/RMS

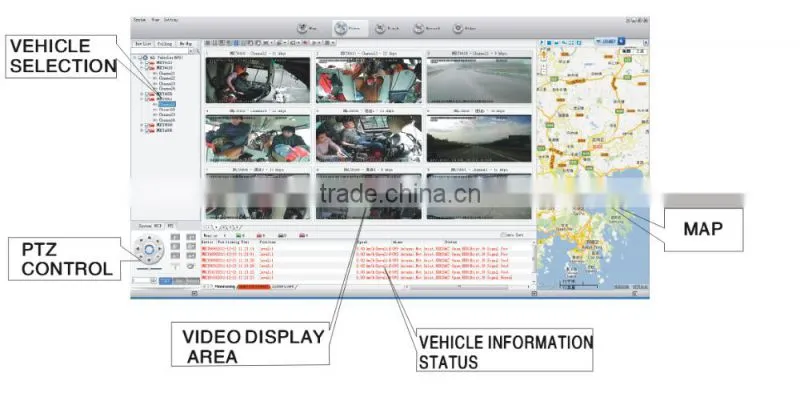

Interface on comoputer

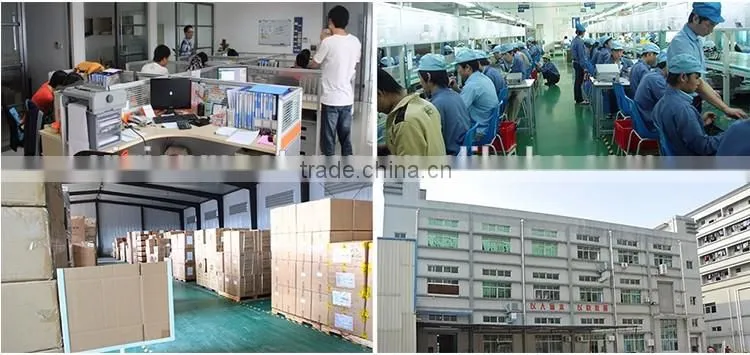

Visionmaster Industrial Co., Ltd. is a leading video surveillance solution provider with global perspective. Before we got this new company name(Visionmaster), we have been in the field for 8years. Our team has been steadily growing from the initial 3 founders up to more than 100 employees. Through our dedication to customer-centric innovation and strong partnerships, we are creating maximum value for international distributors, installers by committing end user competitive mobile surveillance and DVR solutions. Our solutions have been deployed worldwide among various applications including public transportation, school bus, law enforcement, private fleet, logistics management, railway and metro, mobile media operation, etc. We continue to enjoy rapid and steady growth and would like to invite you to be part of our global success.
