Home > Products > Mobile NVR > On Sale 4ch 2TH HDD 1080p H.264 Video Compression GPS WIFI Mobile NVR

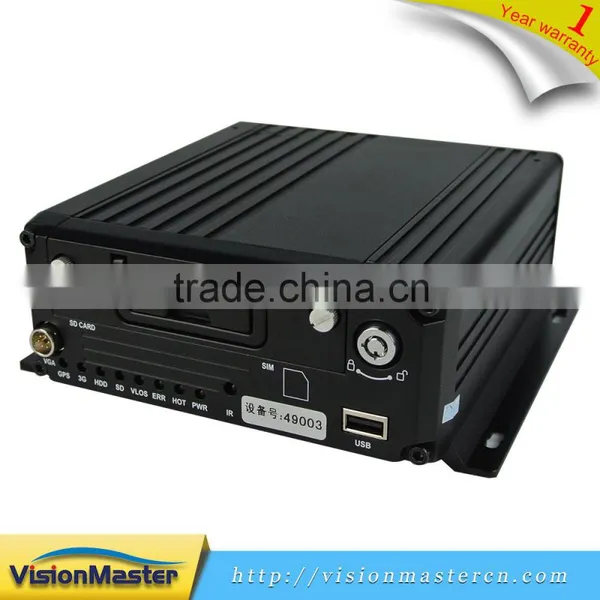

On Sale 4ch 2TH HDD 1080p H.264 Video Compression GPS WIFI Mobile NVR
- 5000 Set / Sets per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- Supply of Sodimax financial escort vehicle in-vehicle wireless 4G monitoring solution
- Supply school student delivery vehicle 4G wireless video real-time surveillance video recorder
- 4-channel 1080P single SD truck-mounted video recorder supports 4G network GPS full real-time monitoring
- SD Card 1080P HD Car Video Recorder H.264 Car Video Surveillance Solution
- 1080P HD MDVR Wifi GPS 3G Digital Video Recorder for School Bus CCTV System
- SD Card 720P HD Vehicle DVR H.264 Car Alarm Monitoring Solution
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM/Visionmaster | Model Number: | VM-4004-NVR |
Product Description
On Sale 4ch 2TH HDD 1080p H.264 Video Compression GPS WIFI Mobile NVR
Main Features:
HIS Solution,H.264 Compression,support 4CH Networking 1080P or 4CH networking 720P HD surveillance video recording and play back;
2CH video output (1CH CVBS video output, 1CH VGA output )
Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stably and completely.
8-38V wide voltage with low power consumption.Support Reverse Protection, over-voltage/over-current protection.Output max to 8Amps current, support 12V & 5V peripheral equipment power supply. Ultra low power design;
Unique UPS Technology ensures the integrity of record when power failure occurs,even can for 8-10s.

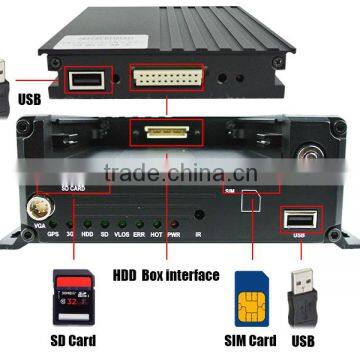

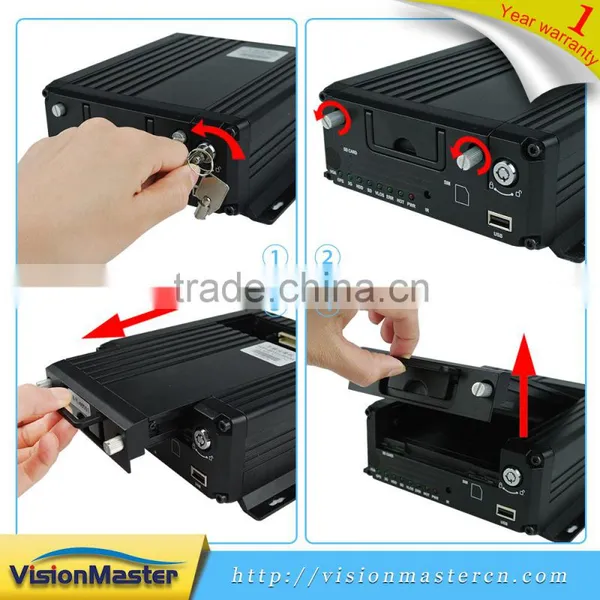

HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock &
Dust damage;support USB port data backup and device update; Support 2 USB ports for backup data and DVR upgrading;
Support 10CH alarm input (2CH analog input + 8CH IO alarm input ),2CH independent alarm output.
Support 2 CAN interface
Support HDD heating functions,can work in cold environment. Support GPS/BD/G-Sensor Extension module;
Realize real-time monitor through 3G/4G; Support SMS remote configuration/control DVR;
Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
Support voice call function. Can communicate with mobile phone or device number. Support OTG device upgrade automatically, , device can automatically upgrade version update, maintenance is more convenient
Support IOS/Android smart phone remote monitor
High reliability aviation connectors, high cost performance, stable and reliable.
Item | Parameter | |
OS | Linux | |
Language | Chinese/English/Customized | |
Video Compression | H.264 Compression Mode | |
OSD | Overlays information such as date time and vehicle ID | |
GUI | Graphical User Interface | Setup system parameters with the remote control. |
Video Record System | Video Input | 4CH Networking 1080P Networking camera input,aviation connector, 1.0Vp-p, 75Ω |
Video Output | 1CH CVBS video output + 1CH VGA outpuT,1.0Vp-p, 75Ω | |
Preview | Support 1 channel and 4 channels preview | |
Resolution | 1080P/720P/D1/HD1/CIF, MAX:4 channels 1080P | |
Video Quality | 0-7 levels, 0 is the highest level, 7 is the lowest level. | |
Video Standard | PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multiple levels video quality optional 1080P: 4Mbps-8Mbps, multiple levels video quality optional | |
Record Mode | The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. | |
Audio | Audio Input | 4CH/8CH Aviation Connectors |
Audio Output | 1CH | |
Compression | G.726 Audio Compression, 8KB/s speed | |
Alarm Input | 8CH IO Alarm Input, 2CH Analog input, impulse speed input; Support alarm linkage function | |
Alarm Output | 2CH Alarm Output, Support Light/Sound alarm sensor,Oil/Power cut | |
Communication Interface | 3CH RS232,POS/Fuel Sensor/LED Adversitement Connection | |
2CH 485 interface, can connect PTZ,etc. | ||
Wireless | Support Built-in 3G network, WCDMA,CDMA2000,TD-SCDMA compatible with GPRS,EDGE; Support Built-in 4G network,TDD-LTE,FDD-LTE | |
Position | Support Built GPS/BD Module,can make playback analysis of vehicle routing | |
GPS | Support GPS | |
Video Storage | Storage | 2.5’’ HDD+ SD Card,each max 2TB HDD + 128GB SD Card mirror recording keep data safety |
Upgrade | Support USB flash disk updating,SD card upgrade , OTA remote upgrade automatically | |
File Format | .264 General video format | |
File System | Special FAT32 File System | |
USB | USB Interface on front panel for data back up by U Disk/Hard Disk | |
Video Playback | Video Search | Search video by Record Time/Record Type etc |
Playback | Max support 8CH Replay /Stop/Fast Forward/Fast Reverse at same time | |
Support x 2,x4,x8,x16. fast forward or fast backward play | ||
Voltage & Power Consumption | Power Management | Adaptive wide power input, support Wide Voltage,Reverse Protection..Support Time Setting/Delay power off |
Voltage Input | DC:+8V ~ +38V | |
Voltage Output | +12V/2.5A,+5V/2.5A | |
Power Consumption | Working <5W | |
Working Environment | Temperature | -20℃ to +70℃ |
Humidity | 20% to 80% | |
others | Size | 200(L) x187(W) x62(H) mm |
Net Weight | 1.95kg |
Free PC CMSV6 Remote Client software:
Free Phone CMSV6 Remote Client software:
CMSV6 In Mobile Phone
Have all in the palm of your hand
Real-time monitoring via Mobile Phone
Support iPhone, Android, iPad system
Video & Audio Monitoring Online Vehicle GPS Satellite Map Video Storage
PTZ control Tracking Display PictureSnapshot Voice intercom
On Sale 4ch 2TH HDD 1080p H.264 Video Compression GPS WIFI Mobile NVR
VM-4004GWF-NVR Standard Packing List:
Neutraql Package:
We support various mode of transportation for shipment :
By sea:15~40 days arrive
By air :2~5 days arrive
By express:3~7 days arrive
By air -mail :15~70 days arrive
Visionmaster Industrial Co., Ltd. is a leading video surveillance solution provider with global perspective. Before we got this new company name(Visionmaster), we have been in the field for 8years. Our team has been steadily growing from the initial 3 founders up to more than 100 employees. Through our dedication to customer-centric innovation and strong partnerships, we are creating maximum value for international distributors, installers by committing end user competitive mobile surveillance and DVR solutions. Our solutions have been deployed worldwide among various applications including public transportation, school bus, law enforcement, private fleet, logistics management, railway and metro, mobile media operation, etc. We continue to enjoy rapid and steady growth and would like to invite you to be part of our global success.
