MY510 Fuse Terminal Connector Block, Electrical Termninal Strip
US$ 0.01 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
MY510
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NING BO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pitch 5.0mm PCB White Spring Terminal Block ConnectorsUS$ 0.01 - 1MOQ: 1 Pack -
5 Pin Spring Terminal Block Pitch 7.62mmUS$ 0.01 - 1MOQ: 1 Pack
-
Brass PCB Spring Terminal Block Pitch 7.62mmUS$ 0.04 - 1MOQ: 1 Pack
-
Stainless Steel PCB Spring Terminal Block Pitch 5.0mmUS$ 0.01 - 1MOQ: 1 Pack
-
Pin Header PCB Spring Terminal Block Pitch 5.0mmUS$ 0.01 - 1MOQ: 1 Pack
Place of Origin
Zhejiang, China
Brand Name
OEM
Model Number
MY510
Type
Other, feed through
Specifications
ce, rohs certificateseco-freindly material
MY510 Fused Terminal Connector block, Electrical Termninal Strip
Detailed Product Description
| Product | Terminal Strip | |
| Pitch | 10.0mm | |
| Material | ||
| Screws | M3.0 Steel Zinc Plated | |
| Clamp | Phosphor Bronze, Ni Plated | |
| Wire Guard | Brass Ni plated | |
| Housing: | PA66 UL94V-0 | |
| Electrical | ||
| Standard: | UL | IEC |
| Rated voltage: | 300V | 250V |
| Rated current: | 6.3A | 6.3A |
| Contact Resistance: | 20MΩ | |
| Insulation resistance: | 500MΩ/1000V | |
| Withstanding voltage : | AC 2000v/ 1 Min | |
| Wire Range | 18~14AWG 2.5mm2 | |
| Mechanical | ||
| Temp. Range: | -40°C~+105 °C | |
| Strip Length: | 4.5~5mm | |
| Torque: 0.4Nm(3.6lb.in) |
PRODUCT PICTURE

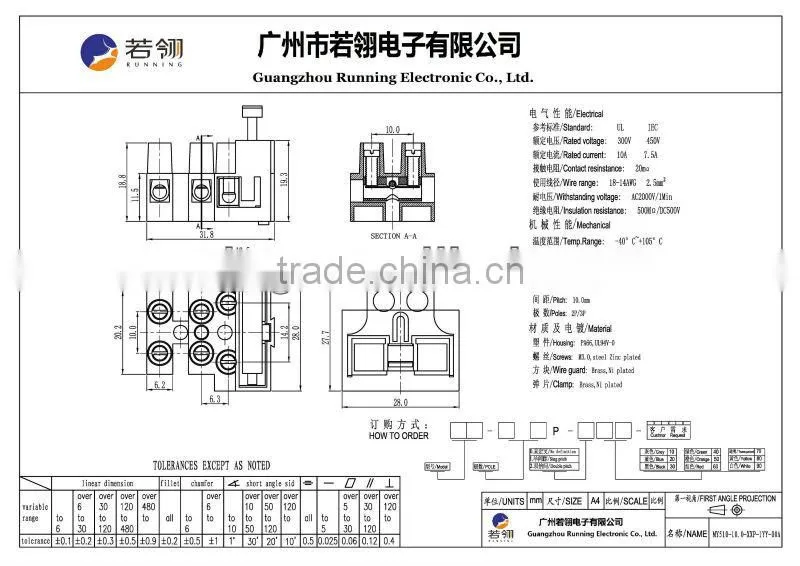

PRODUCT DRAWING
