Specifications
SMT Type Pin Header 1.0mmce, rohs certificates
eco-freindly material
Hiah quality Fast delivery
Free Sample
Double Row SMT Type Pin Header Pitch:1.0mm H=1.5
Advantage
1. We are professional supplier. |
2. We work with dozens of factories to ensure competitive price |
3. Inspections:100% test before delivery. |
4. Free samples for your test |
| 5. OEM and ODM are acceptable |
| 6. Fast door to door delivery service |
| 7. Trail order and small order are acceptable |
Product Specification
| Double Row SMT Type Pin Header 1.0mm |
| Material: |
| Housing: 30% Glass filled PBT UL94V-0 |
| Contacts: Brass or Phosphor Bronze |
| Plating: Gold plated: 0.8u" over 50u" nickel |
| Electrical Characteristics: |
| Current Rating: 0.75AMP |
| Insulator Resistance: 1000mΩ min |
Withstanding Voltage: 500V AC/DC |
| Contact Resistance: 30mΩ max. |
| Operating Temperature: -45ºC~+105ºC |
| MOQ:Small order for Double Row SMT Type Pin Header 1.0mm |
| Delivery:Fast delivery for Double Row SMT Type Pin Header 1.0mm |
Product Pictures

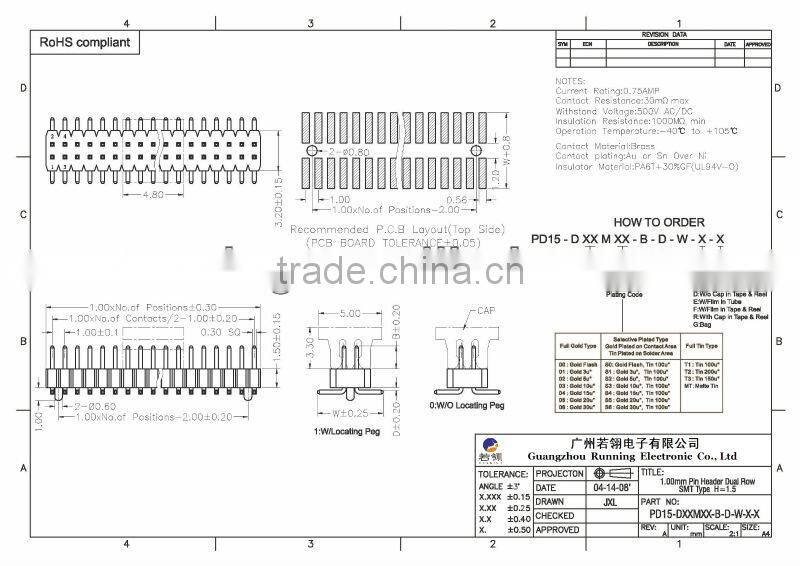

Product Technical Drawing
