Home > Products > CONNECTORS > Height 0.9mm Pitch 0.5mm SMT Pin FFC/FPC Connector With Hinged-Lock Type
Height 0.9mm Pitch 0.5mm SMT Pin FFC/FPC Connector With Hinged-Lock Type
- 100000 Piece / Pieces per Month
- Shanghai/Ningbo
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Running FFC/FPC Connector | Model Number: | FFC/FPC Connector 1-242G |
Type: | Other, FFC/FPC Connector, Hinged-Lock type | Application: | FPC | Gender: | Male |
Product Description
Specifications
Height 0.9mm Pitch 0.5mm SMT Pin FFC/FPC Connector With Hinged-Lock Typegood quality
fast delivery
best service
Height 0.9mm Pitch 0.5mm SMT Pin FFC/FPC Connector With Hinged-Lock Type
Advantage
1. We are professional supplier. |
2. We work with dozens of factories to ensure competitive price |
3. Inspections:100% test before delivery. |
4. Free samples for your test |
5. OEM and ODM are acceptable |
6. Fast door to door delivery service |
7. Trail order and small order are acceptable |
Product Specification
0.5mm Pitch FFC/FPC Connector With Hinged-Lock Type 04~6 pin |
Material: |
Housing: Nylon 46 UL94V-0 |
Contact: Phosphor Bronze |
Plating: Tin Plated Over Nickel |
Electrical Characteristics: |
Voltage rating: 50 VAC |
Current rating: 0.4 AMP |
Dielectric Withstandingf Voltage: 500 VAC R.M.S. |
Insulation resistance: 500m ohm Min |
Contact resistance: 30m ohm. max. |
Temperature range: -40°C To +105°C |
Free Sample |

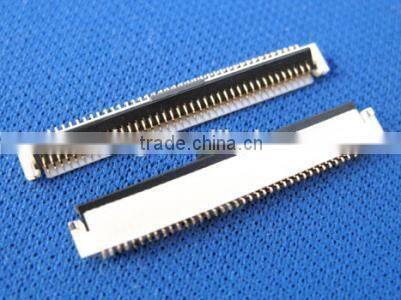

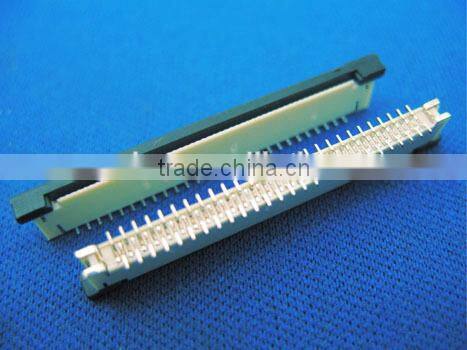

Product Pictures
Product Technical Drawing
Related Product
Certificates
Factory Show
About US
Guangzhou Running Electronic Co., Ltd. is a professional supplier of electronic components, such as
pluggable/barrier/screw/feed through terminal blocks, solderless breadboards, pin header, etc. With highquality
products, excellent services and a good reputation, we have wongreat support from customers around the world.
Thus, our company scale has expanded. At present, we export products to the USA, Brazil, Italy,etc. We have
established longterm, stable and good business relationships with many manufacturers and wholesalers around the
world. Currently, we are looking forward to even greater cooperation with overseas customers based on mutual
benefits. Please feel free to contact us for more details.
|
