Specifications

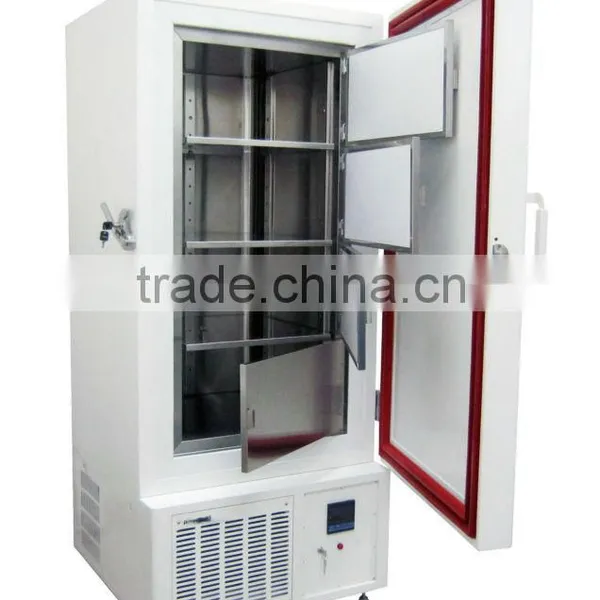

Used for low temperature scientific experiments, preservation of plasma, biomaterial, vaccine, biomedical product.340L -86°C Series Ultra-low Temperature Freezer(TH-86-340-LA)
Used for low temperature scientific experiments, preservation of plasma, biomaterial, vaccine, biomedical product.
Usage: The TH -86°C Series Ultra-low Temperature Freezer offers a wide variety of research and storage applications, such as low temperature scientific experiments, preservation of plasma, biomaterial, vaccine, biomedical product and testing low-temperature-resistant properties of military products. It is suitable for research institutes, electronic industries, chemical engineering industries, hospital, sanitation and anti-epidemic stations, university laboratories, and military industries.
Refrigeration principle: double-compressor auto cascade
Inner Temperature: -90°C
Capacity : 340L
Temperature Adjustment Range: -10- -90°C
Noise : 57db
Power: 1200W
AMPS: 7A
Voltage: 220V 50HZ
Exterior Dimensions (H*W*D): 1890*810*810(mm)
Interior Dimensions (H*W*D):1140*540*550(mm)
Case Material: cold-rolled steel with spraying plastics
Chamber Material: stainless steel
Compressor: DANFOSS
Fan: Germany EBM 29W
Sensor: PT100
Temperature controller: Japan RKC
Pressure Relay: DANFOSS
Time Relay: Japan OMRON
Auxiliary Relay: Japan OMRON
Oil Separator: Taiwan GUANYA
Refrigerant ( High stage): R134A, R404A
Refrigerant ( Low stage): R508B
Weight: 270KG
Main Features:
1. Unique refrigerating technique with both fan and natural convection, protecting
condenser fans against dust build-up
2. Environment-friendly, fluorine-free refrigerants
3. Two ways of condensation, by fans and air convection.
4. R232 connect (optional) is of great help in data-analyzing
5. Accessories of world-famous brand, ensuring the quality.
6. Designed according to the customers' individual demand, with high performance-price
ratio
7. Both light and sound alarms systems are available
8. Noise abatement insulation package for quieter operations
9. The removable filter makes the cleanout easier.
10.1.89m in height, easy to be carried through the door (the height of common door is
190cm)
