Product Introduction
Lab glassware cleaning machine is mainly made of cleaning frame, cleaning system, flushing system and control circuit, etc. It can be connected to cool, heat, deionized water to clean, disinfect and dry all kinds of lab glassware.
Product Characteristics
1, The whole body is stainless structure, the equipment exterior is made up of stainless 304, while the interior made of stainless 316; the streamlining door is liberal and beautiful.
2, The machine has automatic cleaning and disinfecting function, cleaning and disinfecting is convenient, can keep the machine itself with the cleaning article clean and healthy to the greatest degree.
3, The machine is fit to clean lab glassware like test-tube, beaker, flask, cylinder, volumetric flask, conical flask, etc. can be equipped with required cleaning frame according to user’s requirements.
4, It has double-deck frame, can be used in spraying cleaning. the front pull-style safe door provides convenience of operation.
5, There is rotating sprayer in the top of cleaning tank, with dead angle design, can clean various kinds of glassware overally and symmetrically.
6, Every set of cleaning frame is equipped with water spraying column make the cleaning agent sprayed into glassware which is awaited to be cleaned.
Product Advantages
1, Microcomputer control system, PLC preset procedure, users can also set parameters and write program flexibly.
2, The complete machine is designed in modularization, it will make pure water automatically (optional)
3, automatically diagnose faults, buzzer automatically alarms, automatic alarm and power-off when it’s short of water or cleaning agent.
4, SMS alarm when it leaks water (optional)
5, Automatically prepare the proportion of cleaning agent.
6, Many kinds of cleaning frame can meets washing of different glassware.
7, The machine will drain out waste water after every stage procedure, stop mutual pollution.
8, Heating power high temperature disinfection, preset 93°Chigh temperature disinfection, ensuring the safety.
Human Technology
With wide colorful touch display screen, innovative WINDOWS interface software, large capacity memorizer and programmed temperature rising system, can not only improve the experiement efficiency, but also bring pleasure to users.

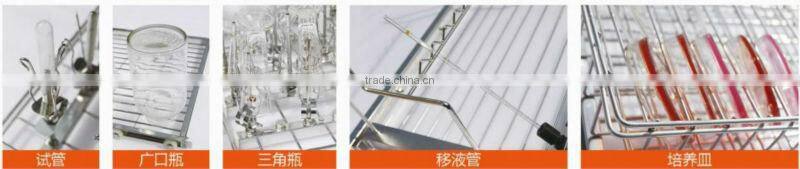

Cleaning Frame (optional)
With design idea of durable, using medical stainless sectional material, full mould type process,full assembly line production, reducing product cost, thus ensure the ultrahigh cost performance.
Cleaning frame can be customized separately according to users' defferent requirement
Working mode
standard mode:for regular instruments
Mode 1 high temperature: cleaning of stainless steel made surgical instrument.
Mode 2 low temperature:for cleaning of plastic instruments
Mode 3 anaesthesia tunnel: for cleaning of anesthesia/respiratory instruments.
Mode 4 delicate instruments:for cleaning of delicate instruments
Mode 5 bowls: for cleaning of kidney trays, regular trays, pots and bowls and other utensils.
Mode 6 glass instrument : for cleaning of glass instrument .
Standard work flow
Initial wash------enzyme wash-----first wash------second wash-------oiling------drying-----cooling
Technical Parameters
Model |
SJIA-AWD120 |
Measurement |
980*740*830mm L*W*H |
Cleaning frame type |
Glassware, surgical instruments, Dental Instruments(optional |
Effective cleaning volume |
120L |
Cleaning room size |
600*629*465MM L*W*H |
Power supply |
220V/50Hz |
Single cleaning pump Power |
0.9KW |
Dry running power |
2.1KW |
Power |
6000W |
Maximum noise |
<56dB |
Working condition |
+5°C +40°C |
Cleaning time |
60-80min |
Water circulation flow |
15L |
