LCD dispalytemperature monitor
50 program can be stored.
Product description:
Ultrasonic homogenizer is an ultrasonic cavitation in liquid effects versatile, multi-purpose instrument. It can be used a variety of animals and plants, viruses, cells, bacteria and tissue broken, but can be used to emulsification, separation, homogenization, extraction, anti-foaming, clear, Nanomaterials, distributed and speed up chemical reactions. Instrument is widely used in biology, microbiology, physics, zoology, agriculture, pharmaceuticals, chemicals, sewage treatment, nano-materials and other fields.
Main features:
- Large screen LCD.
- Microcomputer control, can store 50 groups of work data.
- Timer set up to 999 minutes
- ultrasonic time, ultrasonic power can be set.
- automatically detect ultrasonic power to prevent the ultrasonic power with the sample temperature change.
- Integrated temperature control to prevent overheating of the sample.
- frequency automatic tracking, automatic fault alarm
SJIA-650W main technical parameters:
Power Rating 650 w ;
Operating Frequency :20-22 KHZ
Input power :100 -240V, 50 - 60Hz
Programmable Timer: 0-999 minutes ;
Crusher capacity:0.2-500 ml (expansion available)
50 program can be stored.
other models:
| Model | Ultrasonic Frequency(KHZ) | Maximum Power |
Optional
probe
|
Crusher Capacity | Temperature monitor |
| SJIA-150W | 20-25 | 0-150 W | 3 mm | 10-100ml | yes |
| SJIA-250W | 20-25 | 0-250 W | 3 mm | 10-200ml | yes |
| SJIA-500W | 20-25 | 0-500 W | 2,3,8,10,12mm | 0.5-500ml | yes |
| SJIA-650W | 20-25 | 0-650 W | 2,3,8,10,12,15mm | 0.5-500ml | yes |
| SJIA-950W | 20-25 | 0-950 W | 2,3,8,10,12,15mm | 0.5-600ml | yes |
| SJIA-1200W | 19.5-20.5 | 0-1200 W |
Φ6,10,12,15,20,
25
|
50-1200ml | yes |
| SJIA-1500W | 19.5-20.5 | 0-1500 W | Φ6,10,12,15,20, | 50-1200ml | yes |
|
SJIA-1800W
|
19.5-20.5 | 0-1800 W | Φ6,10,12, 15,20,25,28 | 50-1500ml | yes |
| SJIA-2000W | 19.5-20.5 | 0-2000 W | Φ6,10,12, 15,20,25,28 | 50-1800ml | yes |

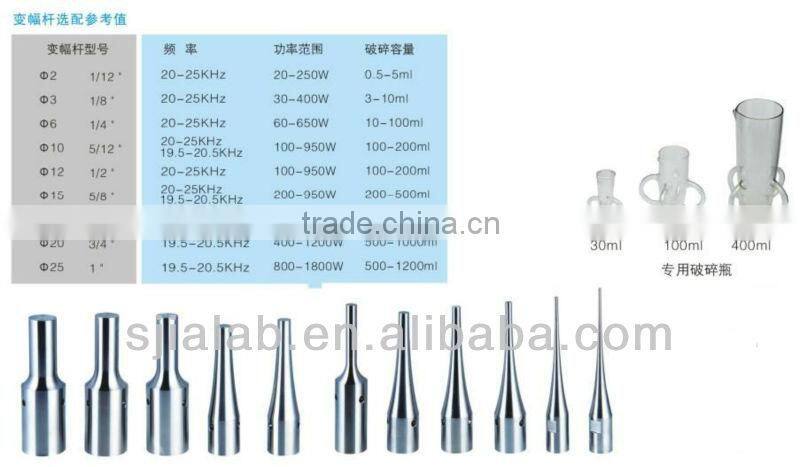

Cup horn/probe:
This indirect Sonication eliminates the need for a probe to come in contact with your sample.
This technique is often described as a high intensity ultrasonic bath. The ultrasonic energy is transmitted from the horn, up through the water and into a vessel or multiple sample tubes.
Indirect sonication is most effective for very small samples because foaming and sample loss are eliminated.
The Cup Horn and Microplate Horn deliver indirect sonication and are ideal for many high throughput applications.
316 stainless steel with double walls through which cooling water can circulate,This flow cell allows for 10 L per hour sonication under max.It work with 10-20mm(1/2’‘ to 1’’ ) probes;it works with 1200w to 2000w syclon ultrasonic processors.
Features:
FULL AMPLITUDE CONTROL
Amplitude (intensity) is controlled from 1-100% giving a greater degree of resolution and the ability to pinpoint the amplitude needed to effectively process your sample.
PROGRAMMABILITY
Parameters including processing times, pulse on/off and power output ,it can be saved to memory and run by the touch of a button.This new system can restore more than 50 custom program.
PULSE MODE
Adjustable pulse On and Off times to reduce the heat gain in temperature sensitive samples.
AUTO TUNING
The Sonicator digitally tracks frequency changes in the
converter/ tip assembly caused by load and temperature
changes and maintainelectrical efficiency at all times.
Manual tuning is unnecessary.
TEMPERATURE MONITORING
An optional temperature probe is available for those customers who wish to monitor the temperature of their sample. If the temperature limitis reached, sonication shuts down toprevent overheating
Application:
Biological / Biotech
Sonication is an ideal tool for lysing bacteria, yeast and tissue cells for the extraction of protein,DNA, RNA, and cellular components. DNA shearing (ChIP Assay) is a very common application.
Pharmaceutical
Cell disruption is common in analytical, quality control, and R & D labs to perform numerous functions from mixing and degassing of analytical samples, to cracking open tablets for dissolution tests. Liposomes and emulsions are easily formed by Sonication for microencapsulation purposes in the production of creams and lotions.
Chemical
Sonication accelerates both physical and chemical reactions, creating new fields of research.Major advances in sonochemistry include chemical synthesis of catalysts and new alloys, catalyzing organo-metallic reactions, micro-encapsulation of protein and hydrolyzing esters. The use of sonication provides greater yields, increases overall efficiency, and saves energy.
Industrial
Industrial uses include forming emulsions, catalyzing reactions, extracting compounds, and reducing particle size. Continuous, in-line Flocells and special ultrasonic horns are available for processing larger volumes. Sonication is being used in the Paint and Pigment industry to disperse dyes and inks and in the Ceramic industry to degas slips and create denser castings.
Environmental
Sonication is used by environmental testing labs to process soil and sediment samples.Sonication takes just 8-10 minutes per sample versus 4-18 hours by soxhlet extraction, it uses half the solvent and improves contaminant yields. Both single and dual horn systems are available. If the sample load is high, then a Dual Horn system is recommended because it allows you to process two samples simultaneously.
