Ultrasonic Equipment

Ultrasonic Equipment thumbnail-1
Ultrasonic Equipment photo-1
US$ 2,600 - 4,400 MOQ: 1 Unit
Key Specifications
Get Latest Price
Certification:
CE
Place of Origin:
Zhejiang, China
Brand Name:
SJIA
Contact Supplier Request Quote Chat Now
Ningbo Yinzhou Sjialab Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification CE
Place of Origin Zhejiang, China
Brand Name SJIA
Model Number Sjia-1200W-2

Specifications

LCD dispaly,
temperature monitor,
50 program can be stored.

ultrasonic equipment  continuous cell flow
ultrasonic equipment

316 stainless steel with double walls through which cooling water can circulate,
This flow cell allows for 10 L per hour sonication under max.It work with 10-20mm(1/2’‘ to 1’’ ) probes;it works with 950w to 2000w SJIA ultrasonic processors





Specifications


LCD dispaly,
temperature monitor,
50 program can be stored.





Ultrasonic Homogenizer / ultrasonicator/ultrasonic processor
It is also called Ultrasonic homogenizer,processor or diperser.
A  Sonicator system is comprised of 3 major components: Generator, Converter and Horn (also known as a probe).

The new model of the SJIA -W feaures:
series is integrated with Temperature Monitor optional.
LCD display screen clearly displays all operating parameters and options:
Temperature,time,output power etc.

Temperature monitor to protect sample from overheating.

50 program can be stored.
Warranty :12 months after received mashine.



Features:


FULL AMPLITUDE CONTROL
Amplitude (intensity) is controlled from 1-100% giving a greater degree of resolution and the ability to pinpoint the amplitude needed to effectively process your sample.
PROGRAMMABILITY
Parameters including processing times, pulse on/off and power output ,it can be saved to memory and run by the touch of a button.This new system can restore more than 50 custom program.
PULSE MODE
Adjustable pulse On and Off times to reduce the heat gain in temperature sensitive samples.
AUTO TUNING
The Sonicator digitally tracks frequency changes in the
 converter/ tip assembly caused by load and temperature
changes and maintainelectrical efficiency at all times.
Manual tuning is unnecessary.
TEMPERATURE MONITORING
An optional temperature probe is available for those customers who wish to monitor the temperature of their sample. If the temperature limitis reached, sonication shuts down toprevent overheating

Application:

Biological / Biotech
Sonication is an ideal tool for lysing bacteria, yeast and tissue cells for the extraction of protein,DNA, RNA, and cellular components. DNA shearing (ChIP Assay) is a very common application.

Pharmaceutical
Cell disruption is common in analytical, quality control, and R & D labs to perform numerous functions from mixing and degassing of analytical samples, to cracking open tablets for dissolution tests. Liposomes and emulsions are easily formed by Sonication for microencapsulation purposes in the production of creams and lotions.
Chemical
Sonication accelerates both physical and chemical reactions,.Major advances in sonochemistry include chemical synthesis of catalysts and new alloys, catalyzing organo-metallic reactions, micro-encapsulation of protein and hydrolyzing esters. The use of sonication provides greater yields, increases overall efficiency, and saves energy.
Industrial
Industrial uses include forming emulsions, catalyzing reactions, extracting compounds, and reducing particle size. Continuous,
.
Environmental
Sonication is used by environmental testing labs to process soil and sediment samples.Sonication takes just 8-10 minutes per sample versus 4-18 hours by soxhlet extraction, it uses half the solvent and improves contaminant yields.







50 program can be stored.

Warranty :12 months after received mashine.



Model
Ultrasonic Frequency(KHZ)
Maximum Power
Optional
probe
Crusher Capacity
Temperature monitor

SJIA-950W
20-25
0-950 W
2,3,8,10,12,15mm
0.5-600ml
yes
SJIA-1200W
19.5-20.5
0-1200 W
Φ6,10,12,15,20,
25
50-1000ml
yes
SJIA-1500W
19.5-20.5
0-1500 W
Φ6,10,12,15,20,
50-1000ml
yes
SJIA-1800W

19.5-20.5
0-1800 W
Φ6,10,12, 15,20,25,28
50-1500ml
yes
SJIA-2000W
19.5-20.5
0-2000 W
Φ6,10,12, 15,20,25,28
50-1800ml
yes



Standard Probes
Probes are made from titanium and machined to specific sizes and shapes. When driven at their resonant frequency, they expand and contract longitudinally. This mechanical vibration is amplified and transmitted down the length of the probe. In liquid, the probe causes cavitation which constitutes the main mechanism for sample processing.
Choosing the appropriate horn is extremely important. The sample volume to be processed is directly related to the tip diameter.

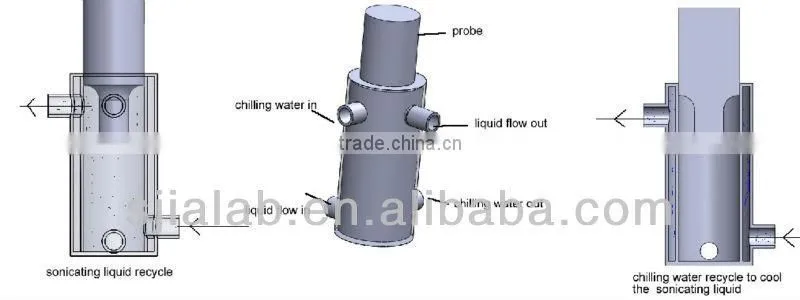

continuous cell flow

316 stainless steel with double walls through which cooling water can circulate,
This flow cell allows for 10 L per hour sonication under max.It work with 10-20mm(1/2’‘ to 1’’ ) probes;it works with 950w to 2000w syclon ultrasonic processors

Ordering Information
Part # SJIA Ultrasonicator includes:
Generator/transducer
Convertor with cable
One replaceable probe
Power cable
Wrench set
Operation manual
Please specify desired voltage for export.
video:
http://youtu.be/Hy5PXELa86E
