Specifications
CFC-free refrigeration7-inch intouch control
LCD display
Lyophilizer SJIA-18N freeze dryer is a cost effective and high performance vertical type freeze dryers
- Microprocessor controls.
- 6 Liters in 24hours ice capacity.
- Internal condenser coil-304 or 316 stainless steel.
- -50C or -80C condenser lowest temperature.
- 304 or 316 stainless construction.
- CFC-free refrigeration.(optional for customer’s request refrigeration:R507,R410A, etc.)
- Heating element to defrost available for optional.
- Transparent Acrylic Drum drying chamber for user to observe the drying process.

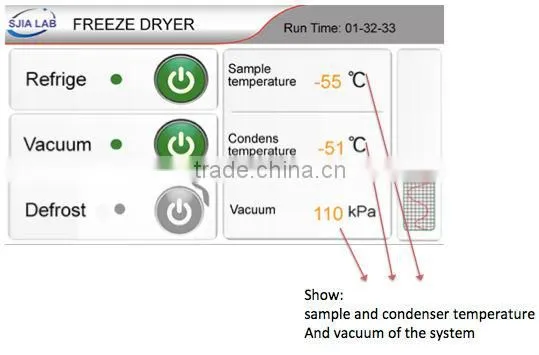

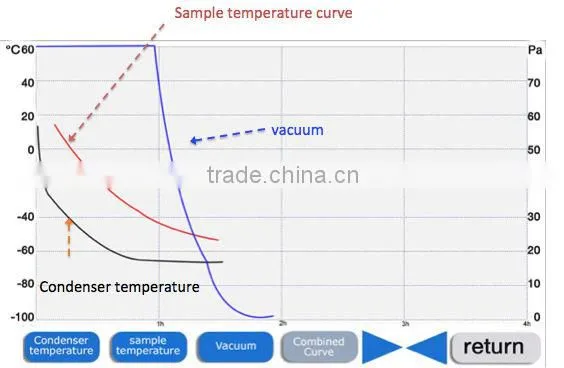

7’’ LCD touch control ,LCD display
- parameters include vacuum,
- condenser temperature
- run time
- ambient temperature.
For water based samples, the -50C condenser is the perfect choice with effective cost.
For samples containing solvents or with low eutectic points, the -80 C condenser provides maximum performance.
For labs that need quick turn-around, Heating element to defrost available.
Main Technical Parameters:
|
Parameters Model |
SJIA-10N (Desktop) |
SJIA-12N(Vertical) |
SJIA-18N |
SJIA-18SN (heating type) |
No-load temperature |
<-50°C,<-80°C optional |
<-50°C,<-80°C optional |
<-50°C,<-80°C optional |
<-60°C,<-80°C optional |
No-load freeze area |
0.07-0.12m2 |
0.09-0.18m2 |
0.09-0.27m2 |
0.09-0.27m2 |
Plate load materials |
0.7-1.2L |
0.7-2L |
2-3.5L |
2-3.5L |
Ability to capture water |
3Kg/24h |
4Kg/24h |
6Kg/24h |
6Kg/24h |
Vaccum |
<10Pa |
<10Pa |
<10Pa |
<10Pa |
Dimension |
610 x 395 x 370+420(drum) mm |
800 × 515 × (725 +420 drum) mm |
830 x 532 x 900+420(drum) |
830 x 532 x 900+420(drum) |
Material Tray Specifications |
Φ200mm four-layered(common) Φ200mm three-layered(with cover) |
Φ200mm four-layered 70mm(common) Φ200mm six-layered 50mm(common) Φ200mm three-layered(with cover) |
Φ240mm four-layered 70mm(common) Φ240mm six-layered 50mm(common) Optional: Φ200mm three-layered(with coverd) |
Φ240mm four-layered 70mm(common) Φ240mm six-layered 50mm(common) optional Φ200mm three-layered (with cover) |
Consuming wattage |
1000VA |
1000VA |
1300VA |
1300VA |
Voltage |
220V 50HZ /110V 60Hz |
220V 50HZ /110V 60Hz |
220V 50HZ /110V 60Hz |
220V 50HZ /110V 60Hz |
The SJIA-18N lab scale freeze dryer can build with 5 common application different accessories.The versatile freeze dryer can meet customer’s various application.
accessories opt:
1.basic type:Transparent Acrylic Drum chamber with rack and 4 or 6 x Φ230mm trays.
The trays liquid load 2.7L ;
Drying area:0.27 square meters

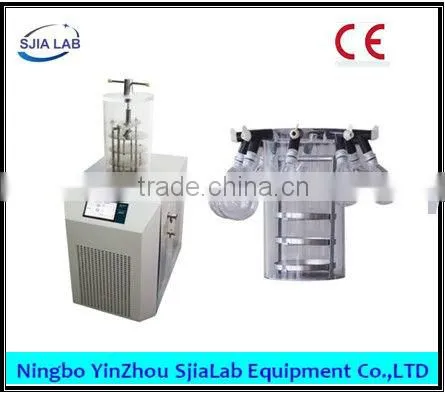

2.Acrylic Drum with Multi-manifolds:
8-Port Acrylic Drum Manifold.transparent drum acrylic chamber make it clear to watch the process of drying.Manifold sealing gaskets are also supplied with this accessory.
The trays liquid load 2.7L;
Drying area: 0.27 square meters

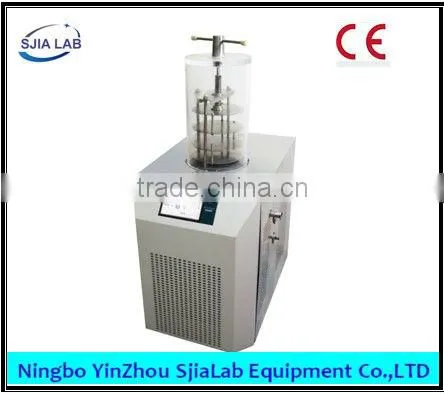

3.Top-stoper down type:
Vial Stoppering Shelf :samples in vials can be processed and stoppered under vacuum. The unit has movable ss 3x 200mm shelves inside acrylic vacuum chamber.(5x200mm shelves is optional )
The trays liquid load 2L;Drying area: 0.09m2

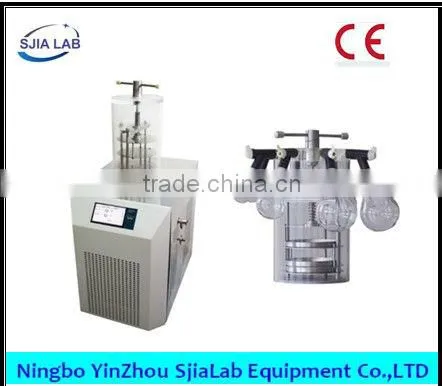

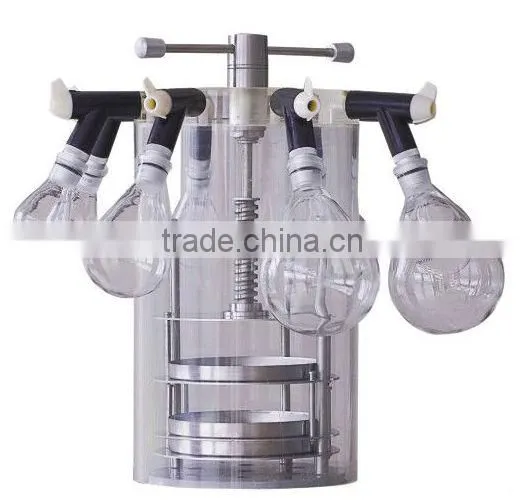

4. ( 8 - Port Acrylic Drum Manifold&Vial Stoppering Shelf:)
The unit has movable ss 3x200 mm shelves inside acrylic vacuum chamber.(5x200mm shelves is optional )
The trays liquid load 2L;Drying area: 0.09m2

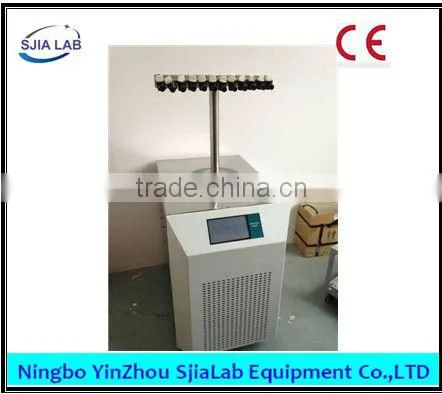

5.(24 or more ports) 24-Port Column Manifold T type
is useful for drying of small volume of liquids in flasks/Ampoules. It is provided with quick seal valves for holding flasks up to 1 litre capacity. Manifold sealing gaskets and cone connectors are also supplied with this accessory
c
