Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment > 3kg/24h Mushroom Vacuum Freeze Equipment

3kg/24h Mushroom Vacuum Freeze Equipment

Name: 3kg/24h Mushroom Vacuum Freeze Equipment
Brand: SJIALAB
SKU: 113161691
Availability: InStock

3kg/24h Mushroom Vacuum Freeze Equipment thumbnail-1

3kg/24h Mushroom Vacuum Freeze Equipment thumbnail-2

3kg/24h Mushroom Vacuum Freeze Equipment thumbnail-3

3kg/24h Mushroom Vacuum Freeze Equipment thumbnail-4

3kg/24h Mushroom Vacuum Freeze Equipment thumbnail-5

3kg/24h Mushroom Vacuum Freeze Equipment thumbnail-6

3kg/24h Mushroom Vacuum Freeze Equipment photo-1

3kg/24h Mushroom Vacuum Freeze Equipment photo-2

3kg/24h Mushroom Vacuum Freeze Equipment photo-3

3kg/24h Mushroom Vacuum Freeze Equipment photo-4

3kg/24h Mushroom Vacuum Freeze Equipment photo-5

3kg/24h Mushroom Vacuum Freeze Equipment photo-6

US$ 1,000 - 3,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Type:

Freeze Drying Equipment

Place of Origin:

Zhejiang, China

Contact Supplier Request Quote Chat Now

Ningbo Yinzhou Sjialab Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Freeze Drying Equipment

Place of Origin Zhejiang, China

Brand Name SJIALAB

Model Number SJIA-10N(FD-1A-50)

Voltage 110V/220V

Power(W) 800w

Dimension(L*W*H) 500 x 395 x 370+420(drum) mm

Weight 85kgs

Certification CE

Warranty 12month

After-sales Service Provided Overseas third-party support available

mushroom Vacuum Freeze equipment

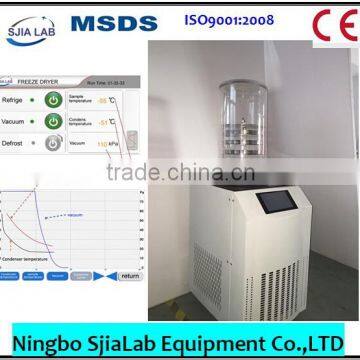

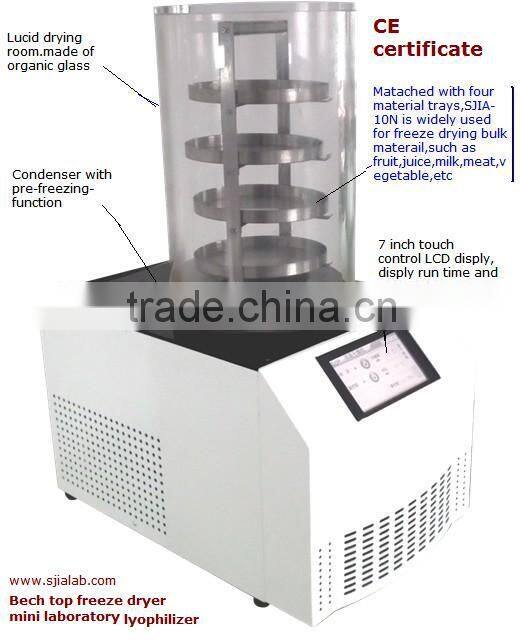

SJIA-10N freeze dryer is a cost effective and high performance benchtop freeze dryers/Lyophilizer.

3 Liters in 24hours ice capacity.

Internal condenser coil-304 or 316 stainless steel.

-50C or -80C condenser lowest temperature.

CFC-free refrigeration.(optional for customer’s request refrigeration:R507,R404A etc.)

Heating element to defrost available for optional.

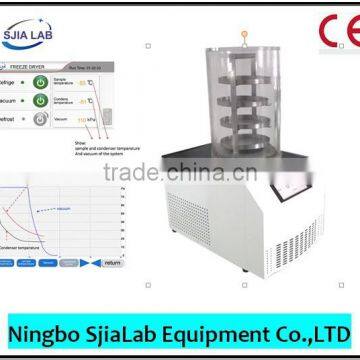

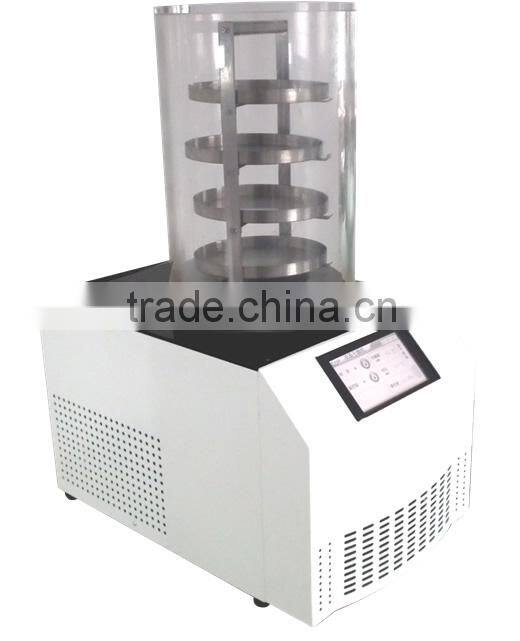

Transparent Acrylic Drum drying chamber for user to observe the drying process.

SJIA-10N bench type freeze dryer parameters:

Condenser temperature <-50 °C; or -80 °C

condenser capacity in 24 hours: 3L;

No. of trays: 4 (top stopper type is 3);

tray size: diameter 200mm;

vacuup pump :2L/s;

Freeze dryer vacuum reach to <10Pa;

power : 220v-240V or 110-115V; 50/60hz

Rated power: 800w( -50 °C) or 1200w (-80 °C);

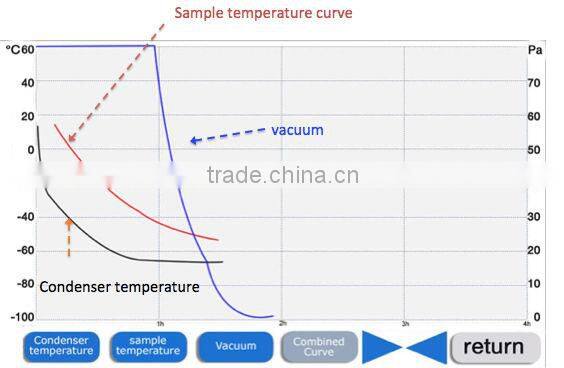

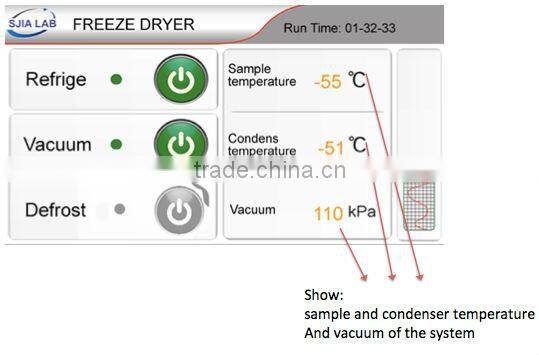

7’’ LCD touch control ,LCD display

how to choose the temperature of the freeze dryer?

For water based samples, the -50C condenser is the perfect choice with effective cost.

For samples containing solvents or with low eutectic points, the -80 C condenser provides maximum performance.

For labs that need quick turn-around, Heating element to defrost available.

Main Technical Parameters:

Parameters Model	SJIA-10N (Desktop)	SJIA-12N(Vertical)	SJIA-18N	SJIA-18SN
No-load temperature	<-50°C,<-80°C optional	<-50°C,<-80°C optional	<-50°C,<-80°C optional	<-80°C optional
No-load freeze area	0.09-0.12m2	0.09-0.18m2	0.09-0.27m2	0.09-0.27m2
Plate load materials	0.7-1.2L	0.7-2L	2-3.5L	2-3.5L
Ability to capture water	3Kg/24h	4Kg/24h	6Kg/24h	6Kg/24h
Vaccum	<10Pa	<10Pa	<10Pa	<10Pa
Dimension	610 x 395 x 370+420(drum) mm	800 × 515 × (725 +420 drum) mm	830 x 532 x 900+420(drum)	830 x 532 x 900+420(drum)
Material Tray Specifications	Φ200mm four-layered(common) Φ200mm three-layered(with cover)	Φ200mm four-layered 70mm(common) Φ200mm six-layered 50mm(common) Φ200mm three-layered(with cover)	Φ240mm four-layered 70mm(common) Φ240mm six-layered 50mm(common) Optional: Φ200mm three-layered(with coverd)	Φ240mm four-layered 70mm(common) Φ240mm six-layered 50mm(common) optional Φ200mm three-layered (with cover)
Consuming wattage	1000VA	1000VA	1300VA	1300VA
Voltage	220V 50HZ /110V 60Hz	220V 50HZ /110V 60Hz	220V 50HZ /110V 60Hz

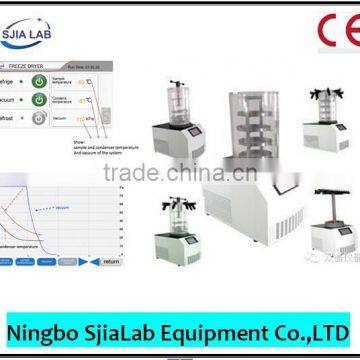

The SJIA-10N bench top freeze dryer can build with 5 common application different accessories.

The versatile freeze dryer can meet customer’s various application.

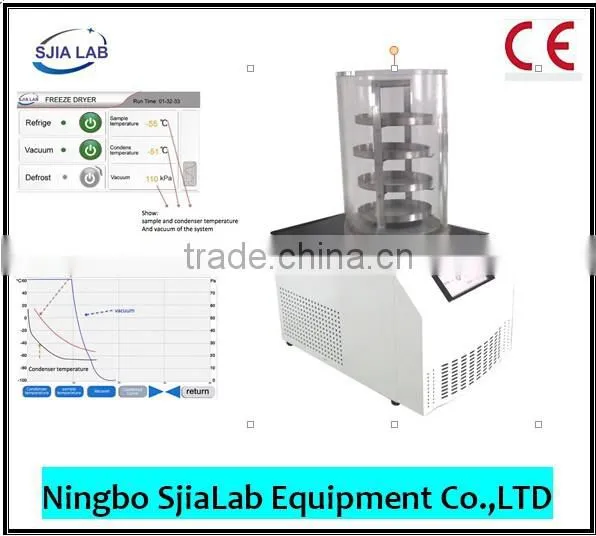

	basic type Transparent Acrylic Drum chamber with rack and 4xΦ200mm trays. The trays liquid load 1.2L; Drying area: 0.12 square meter

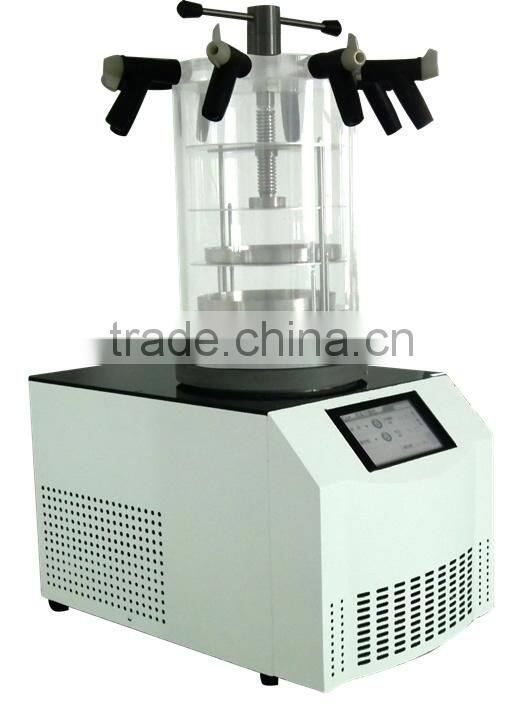

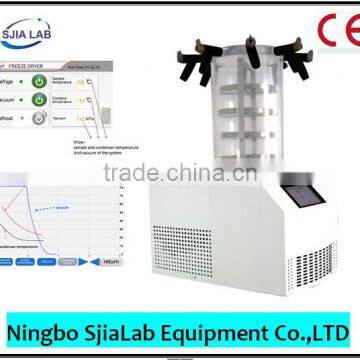

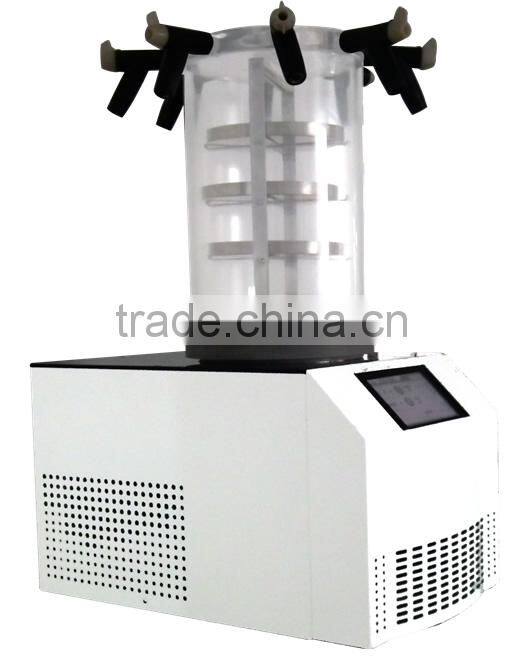

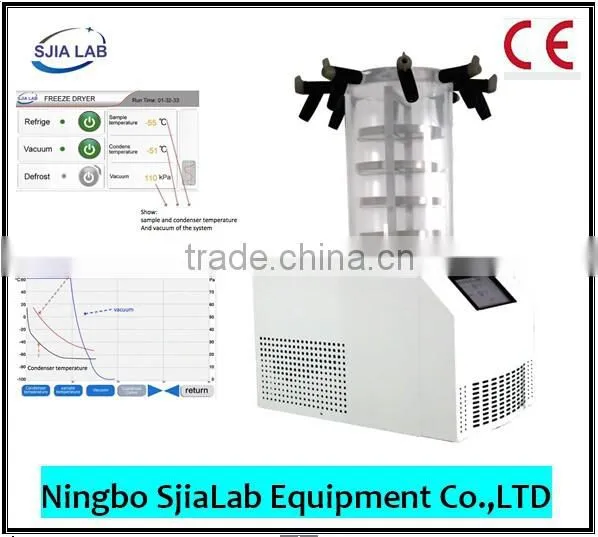

	Acrylic Drum with Multi-manifolds: 8-Port Acrylic Drum Manifold.transparent drum acrylic chamber make it clear to watch the process of drying.Manifold sealing gaskets are also supplied with this accessory. The trays liquid load 1.2L; Drying area: 0.12 square meter

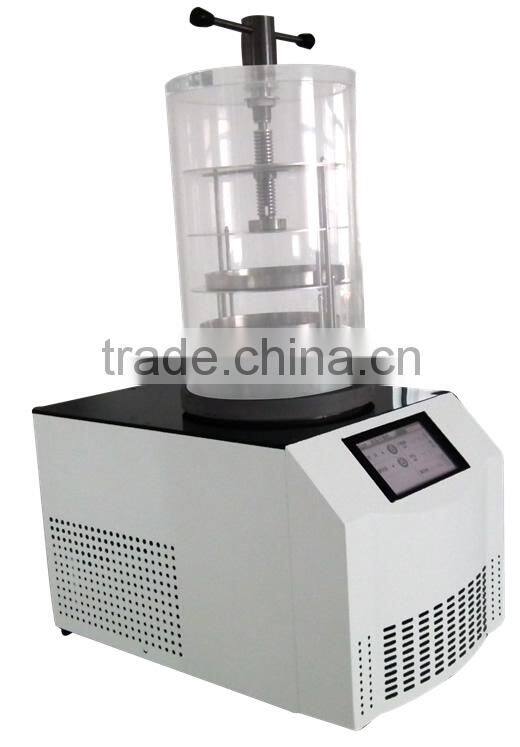

	Top-stoper down type: Vial Stoppering Shelf :samples in vials can be processed and stoppered under vacuum. The unit has movable ss 3x Φ200mm shelves inside acrylic vacuum chamber. The trays liquid load 0.94L;Drying area: 0.094 square meter;
	8 - Port Acrylic Drum Manifold&Vial Stoppering Shelf: The unit has movable ss 3x Φ200mm shelves inside acrylic vacuum chamber. The trays liquid load 0.94L;Drying area: 0.094 square meter;

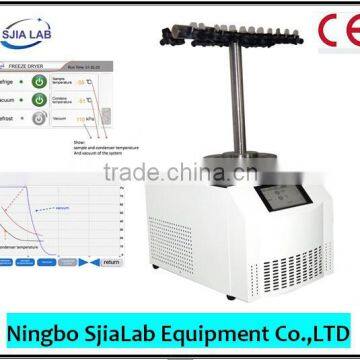

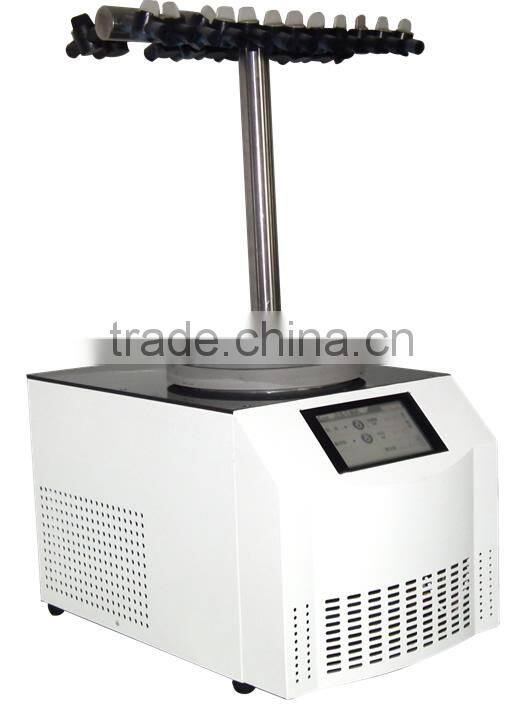

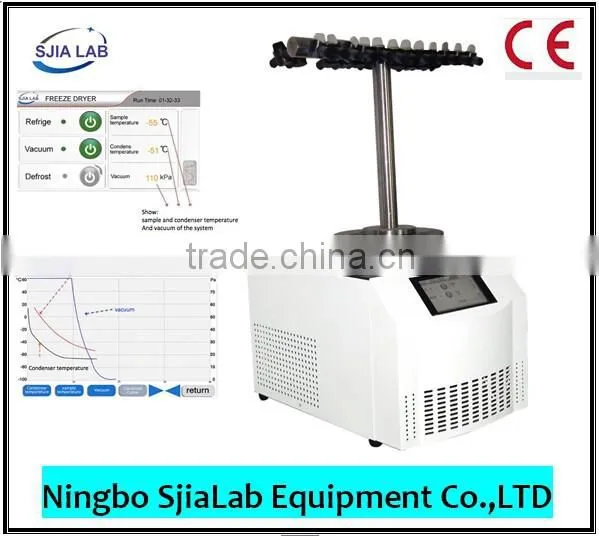

	(24 or more ports) 24-Port Column Manifold T type is useful for drying of small volume of liquids in flasks/Ampoules. It is provided with quick seal valves for holding flasks up to 1 litre capacity. Manifold sealing gaskets and cone connectors are also supplied with this accessory.
