Help CenterWheel Loader WL120 ZL12 1200kg Small Wheel Loader for Sale
Related Products
-
Wheel Loader WL120 ZL12 1.2 Tons Wheel Loader Hot SaleUS$ 6,500 - 8,000MOQ: 1 Set -
1200kg Hjullaster WL120 ZL12 1200-16 Wheel Loader PriceUS$ 6,500 - 8,000MOQ: 1 Set
-
Wheel Loader WL120 1200kg Multi-function LoaderUS$ 6,500 - 8,000MOQ: 1 Set
-
Hot Sale CE Approval Chinese Wheel Loader ZL12US$ 7,000 - 10,000MOQ: 1 Set
-
1200kg ZL12F MiniladerUS$ 6,500 - 8,000MOQ: 1 Set
Specifications
WOLF mini loader WL120 Hoflader Radlader1)1200kg
2) CE
3) Torque converter
4) manufacturer&exporter

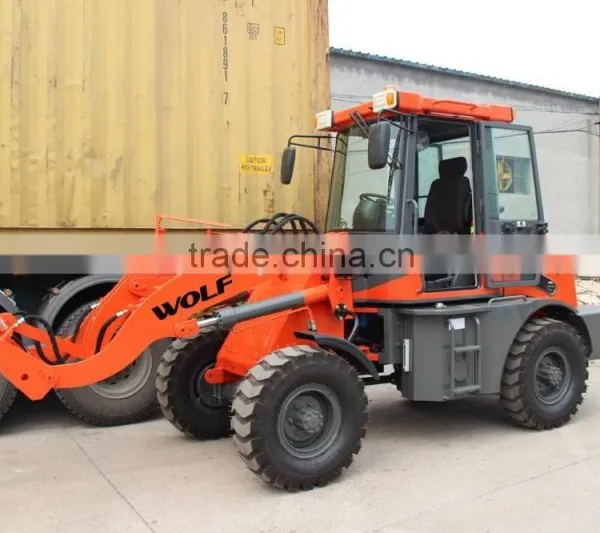

Wheel Loader WL120 ZL12 1200kg small wheel loader for sale
Standard configuration
Xichai 490 engine, 37kw, Hydraulic Torque Converter, joystick, quick hitch, 1200-16 tires, rear video camera, manual floating function, 2 LED lights in front of cabin , Varta battery, heater and fan in the cabin, air over disc brake on 4 wheels, bucket can be level automatic, back sound, radio, USB, hand brake, extinguisher, window hammer, engine preheat, warning light.
Optional Engine:
Changchai 490 engine, 38kw/ 51hp
Xinchai490 Euro III engine, 36.8kw/ 51hp
Xinchai498 Euro III engine, 36.8kw/51 hp
Optional Tire
12-16.5 tires
14-17.5 Vacuum tires
31x15.5-15 Vacuum wider tires
|
Basic Parameters |
Overall weight(kg) |
3300 |
Overalldimension(LxWxH)(mm) |
4800X1770X2720 |
|
Rated capacity(m³) |
0.7 |
|
Rated weight(kg) |
1200 |
|
Max.dump height |
2650 |
|
Min.ground clearance |
8.5 |
|
Wheel base |
2005 |
|
Wheel distance |
1400 |
|
|
Engine |
Model |
Xichai 490 CE certificate |
Optional engine |
Chanchai 490 CE certificate Xinchai 490 Euro III engine Xinchai 498 Euro III engine |
|
Pattern |
In-line arrangement, Water cooling, four-stroke |
|
Number of cylinders-internal diameter*strokes |
4X95X100 |
|
Rated power(kw) |
37 |
|
Min.fule consuming rate |
3000 |
|
Specified rotational speed(r/min) |
2200 |
|
Driven System |
Model of hydraulic torque device |
YJ240 |
Pattern |
Single-phase single-stage radial-inward turbine triples |
|
Pattern of gearboxes |
Fixed-spindle power shift |
|
Tyre Parameters |
Standard Tyre size |
1200-16 |
Optional tire |
12-16.5 14-17.5 |
|
Working Hydraulic System |
Valve distributing working |
ZL15 |
Working pumps |
CBG2040 |
|
Fuel capacity(L) |
45 |
|
Pressuer of working hydraulic system(Mpa) |
16 |

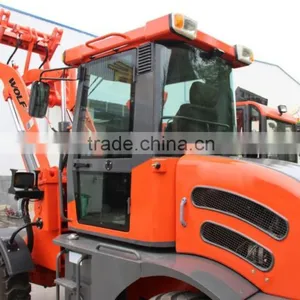

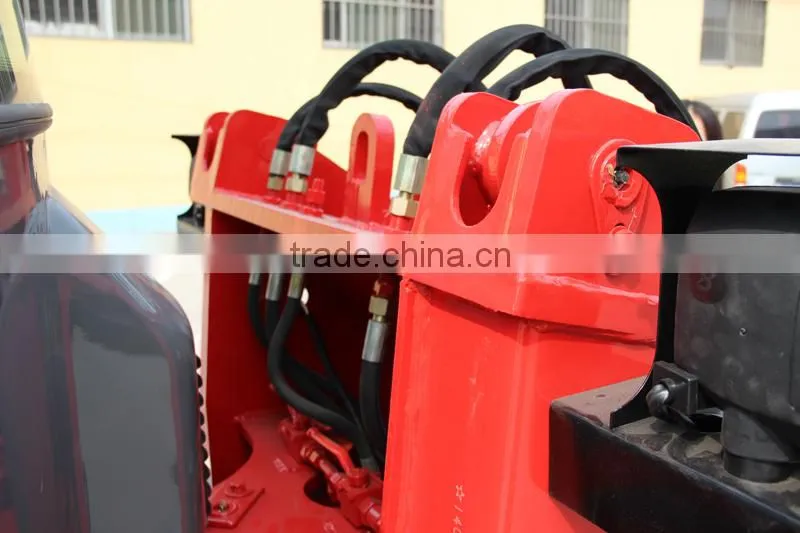

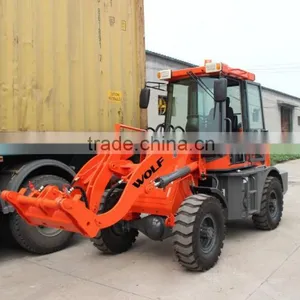

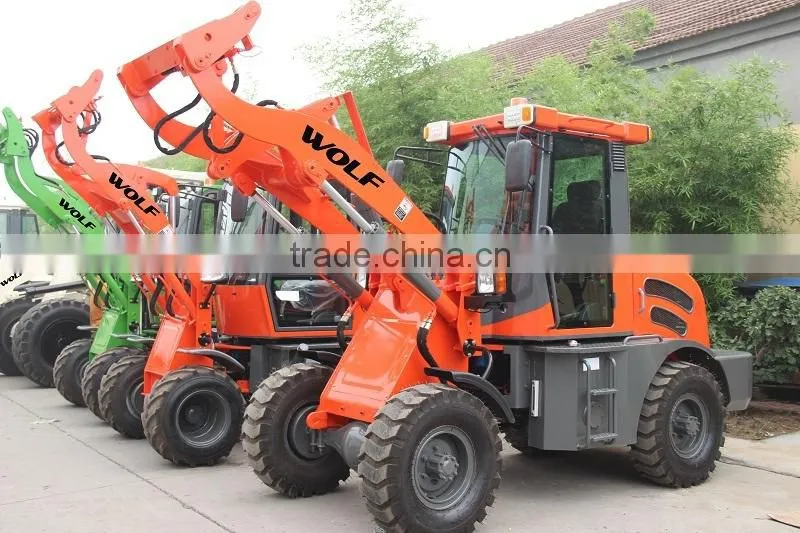

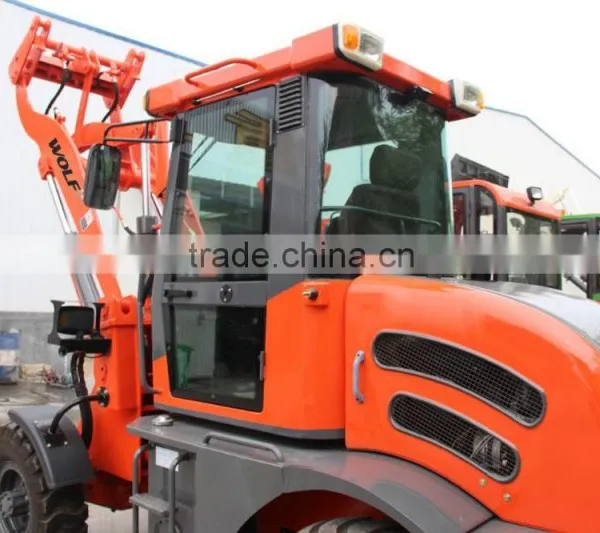

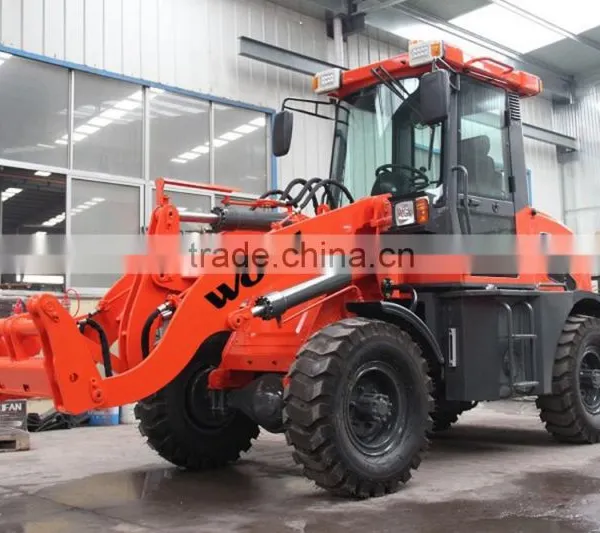

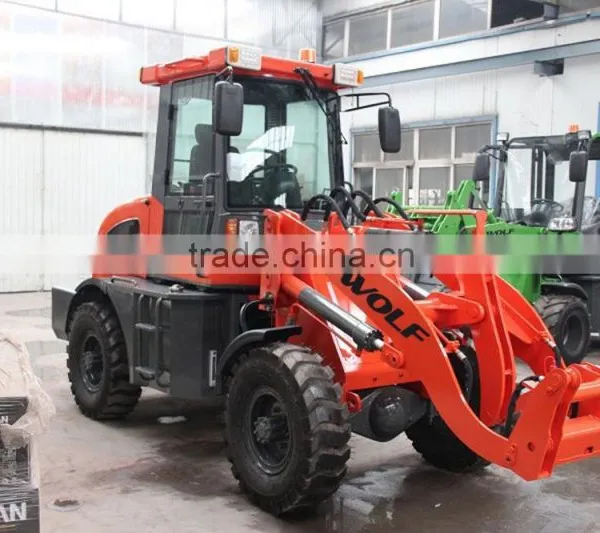

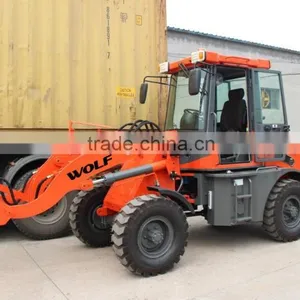

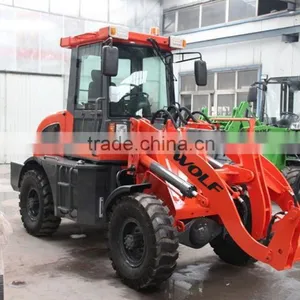

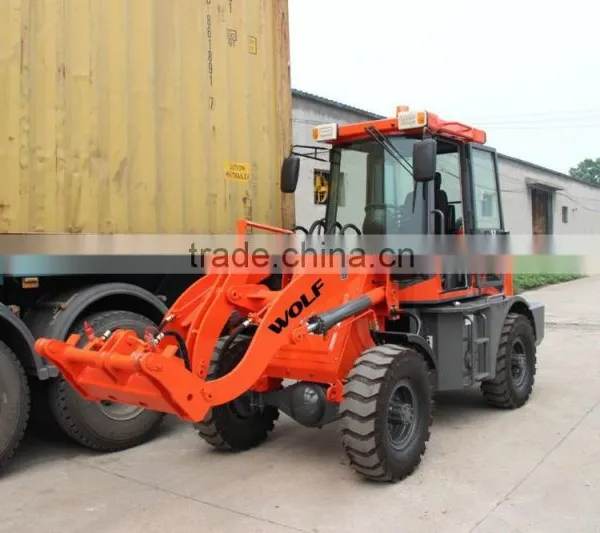

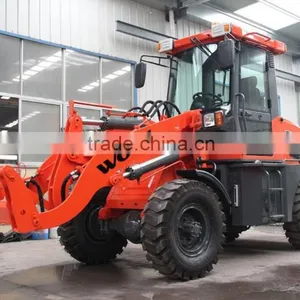

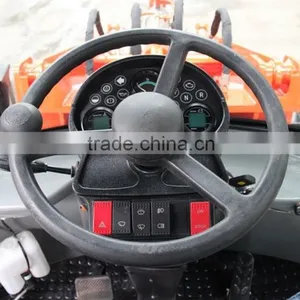

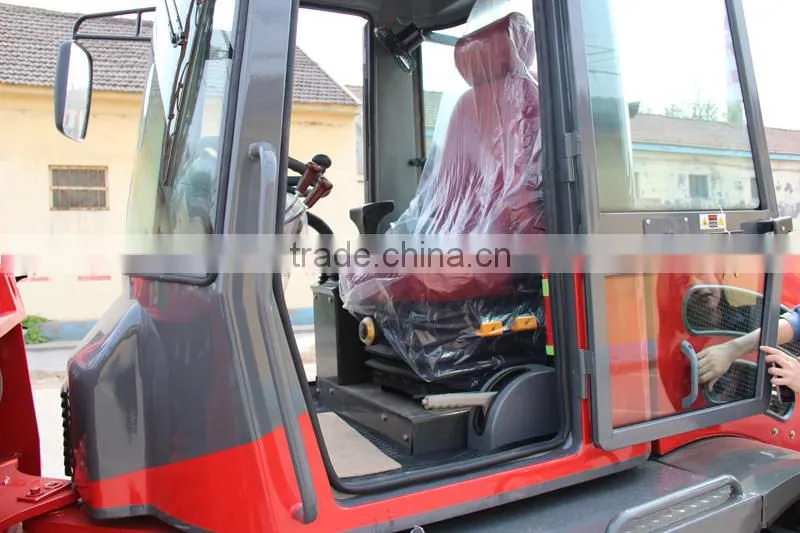

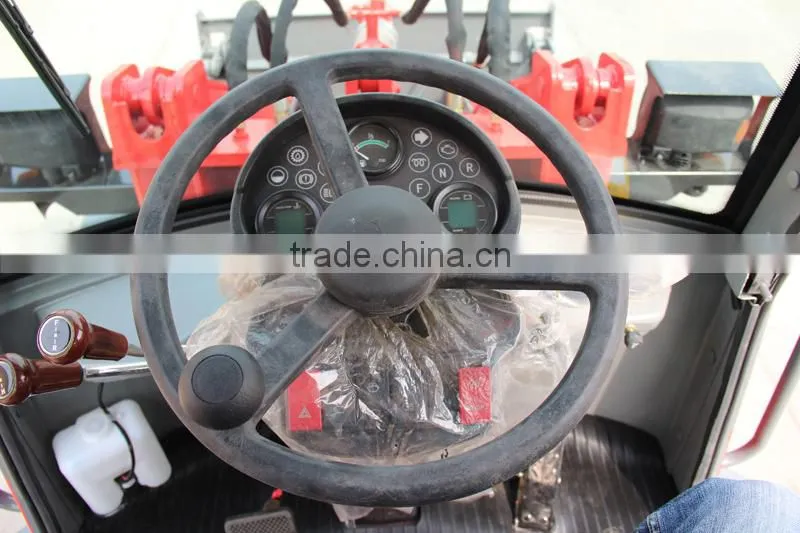

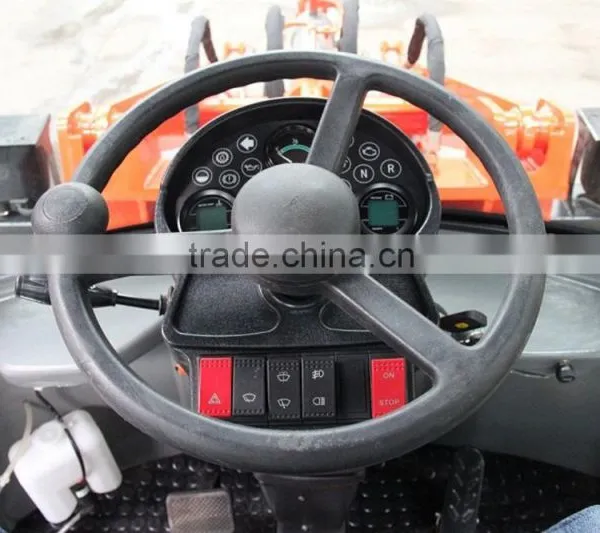

Detailed pictures
About us
Qingdao Zongjin Engineering Machinery Co.,Ltd. is a manufacturer and trading company, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, the production of "WOLF" series construction machines have been exported to Africa, Europe, South America, central Asia more than thirty-two countries.
With perfect technical team and timely after-sale service, to solve all problems when you use the equipment.
Contact us right now for more information! Online 24 hours a day!
Ms. Sunny
Mobible/ Whatsapp/ Viber: 0086-186 405 33643
Skype ID: zjsalesmanager
Facebook: /liuyangsunny
