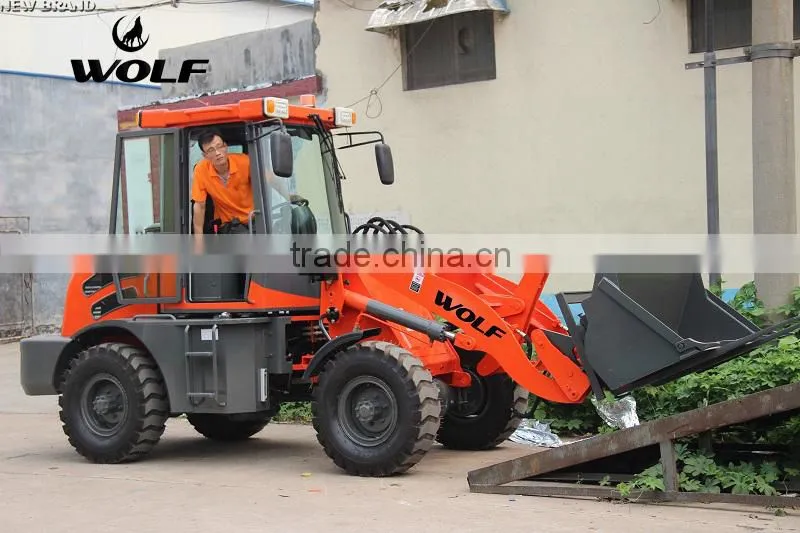

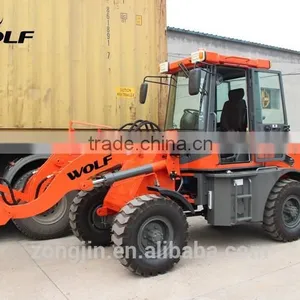

1200kg ZL12F minilader
Specification of WL120 ZL12 mini loader Holflader Radlader
1. Engine: Xichai 490 CE certificated engine
2. Rated load: 1200kg
3. Overall weight: 3300kg
4. Rated bucket capacity: 0.7cbm
5. Overall dimension: 4800X1770X2720mm

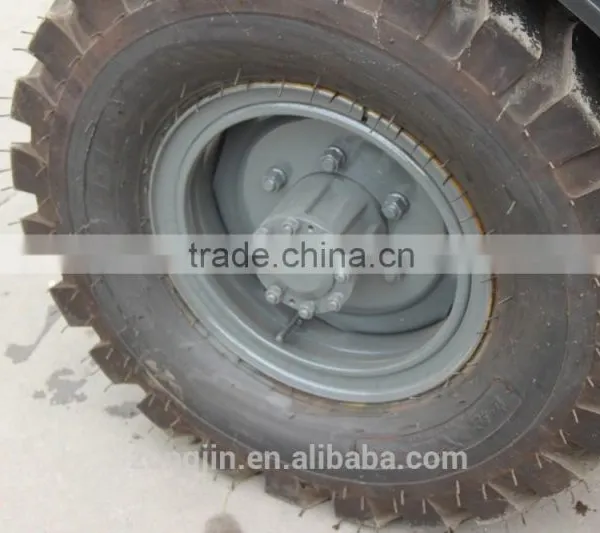

6. Standard tire: 1200-16
Standard configuration

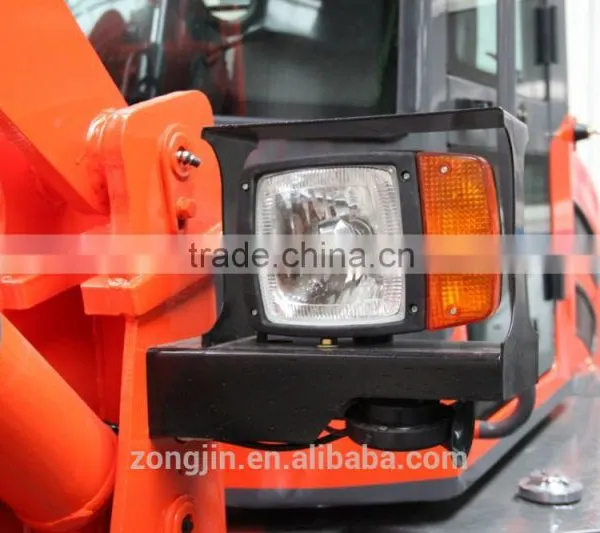

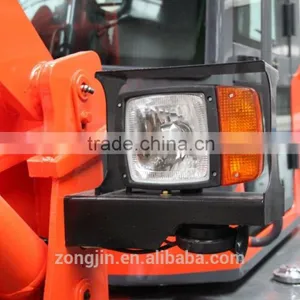

Xichai 490 engine, 37kw, Hydraulic Torque Converter, joystick, quick hitch, 1200-16 tires, rear video camera, manual floating function, 2 LED lights in front of cabin , Varta battery, heater and fan in the cabin, air over disc brake on 4 wheels, bucket can be level automatic, back sound, radio, USB, hand brake, extinguisher, window hammer, engine preheat, warning light.
Optional Engine:
Changchai 490 engine, 38kw/ 51hp
Xinchai490 Euro III engine, 36.8kw/ 51hp
Xinchai498 Euro III engine, 36.8kw/51 hp
Optional Tire
12-16.5 tires
14-17.5 Vacuum tires
31x15.5-15 Vacuum wider tires
Detailed Specification of wheel loader WOLF ZL12 WL120
|
Basic Parameters |
Overall weight(kg) |
3300 |
Overalldimension(LxWxH)(mm) |
4800X1770X2720 |
|
Rated capacity(m³) |
0.7 |
|
Rated weight(kg) |
1200 |
|
Max.dump height |
2650 |
|
Min.ground clearance |
8.5 |
|
|
Engine |
Model |
Xichai 490 CE certificate |
Rated power(kw) |
37 |
|
Driven System |
Model of hydraulic torque device |
YJ240 |
Pattern of gearboxes |
Fixed-spindle power shift |
|
Tyre Parameters |
Standard Tyre size |
1200-16 |
Optional tire |
12-16.5 14-17.5 |
|
Working Hydraulic System |
Valve distributing working |
ZL15 |
Working pumps |
CBG2040 |
|
Fuel capacity(L) |
45 |
|
Pressuer of working hydraulic system(Mpa) |
16 |
Detailed pictures

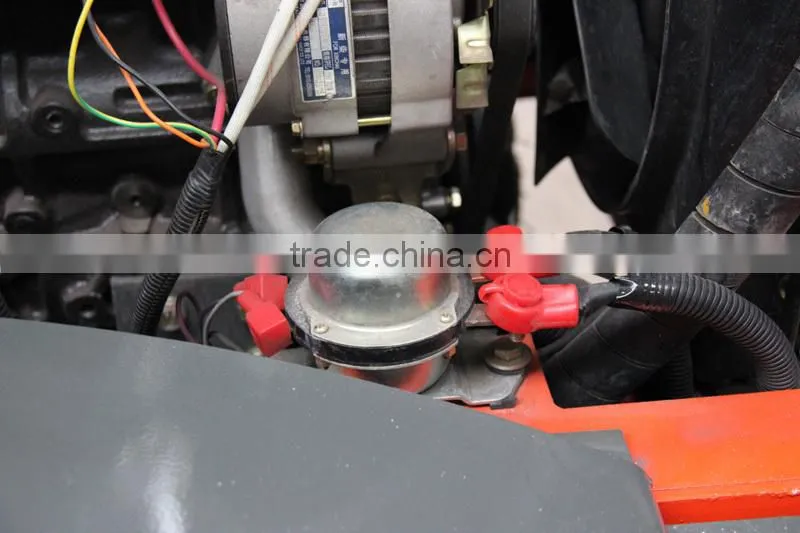

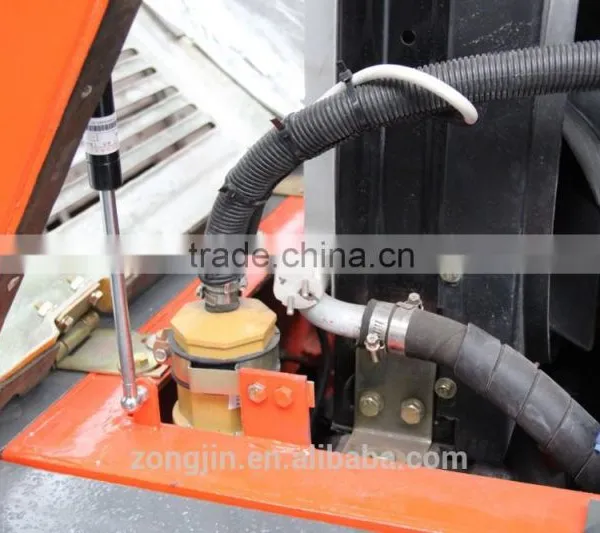

New, warm and enlarged cabin Main Battery Switch

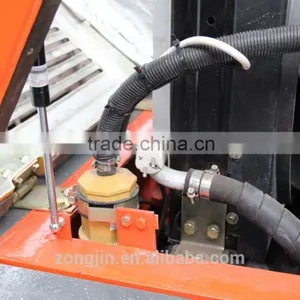

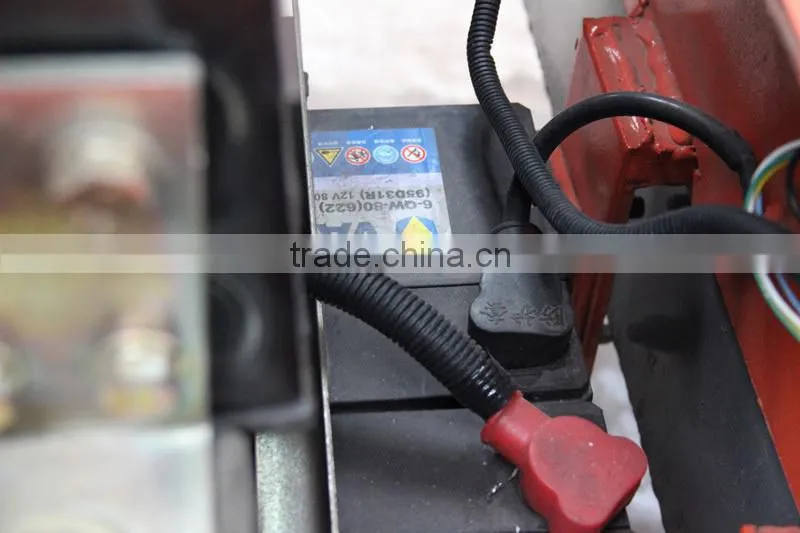

Varta anti-freeze Battery Hydraulic Torque converter(2 forwards 2 reverse)

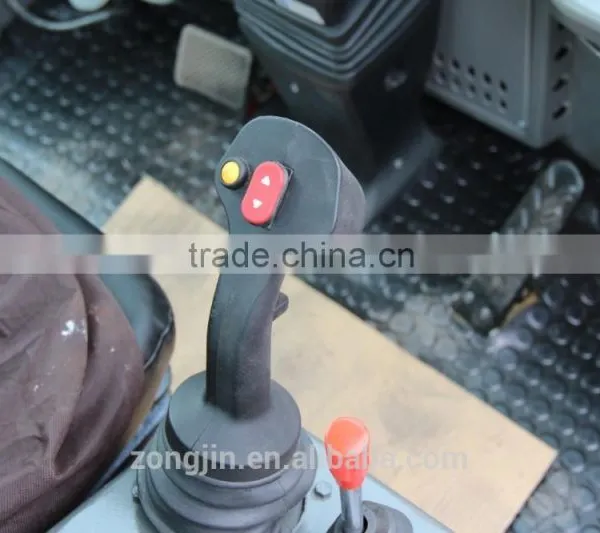

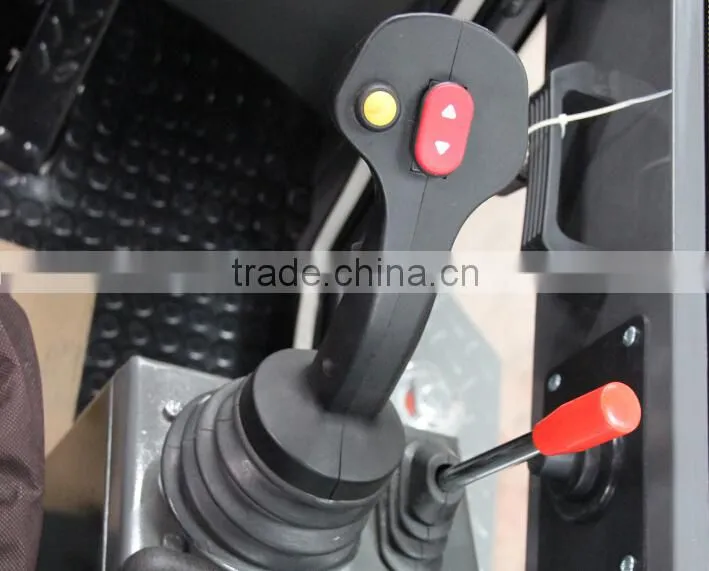

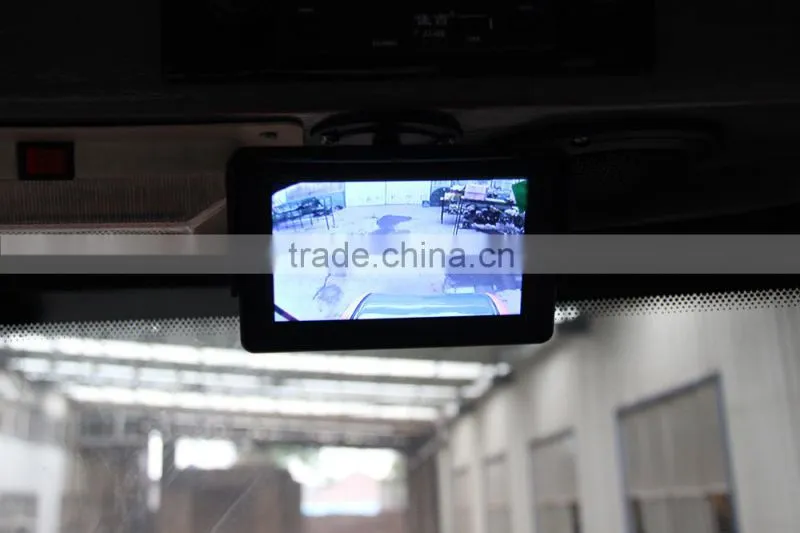

Rear video camera Electronic joystick

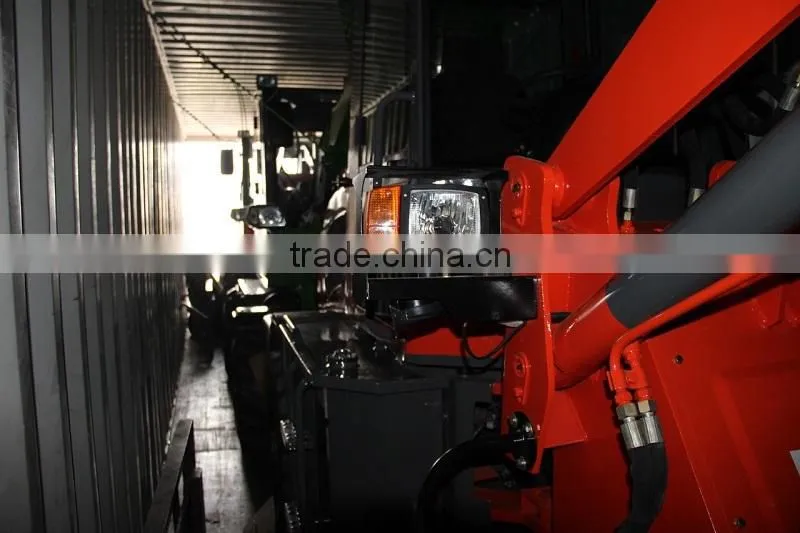

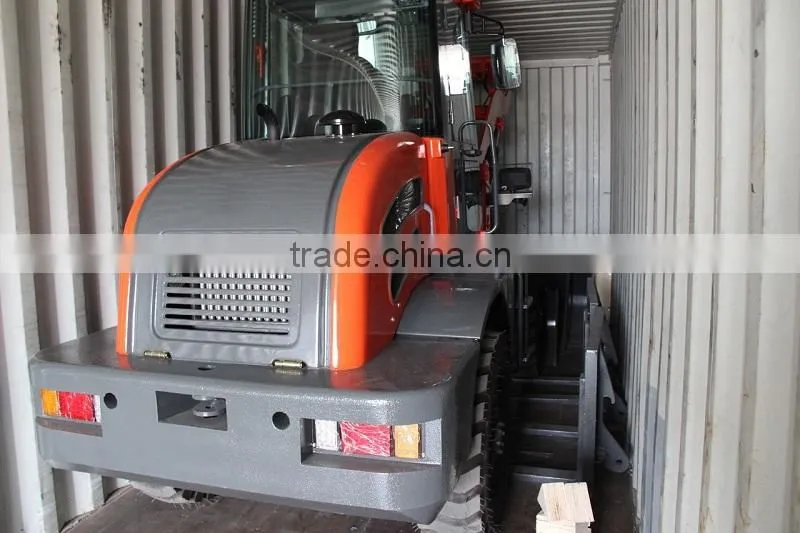

Loading pictures
About us
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift and all kinds of attachments, around10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.
Now, you can see "WOLF" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.
Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.
Loaders in foreign!
Contact us right now for more information! Online 24 hours a day!
Ms. Sunny
Mobible/ Whatsapp/ Viber: 0086-186 405 33643
Skype ID: zjsalesmanager
Facebook: /liuyangsunny
