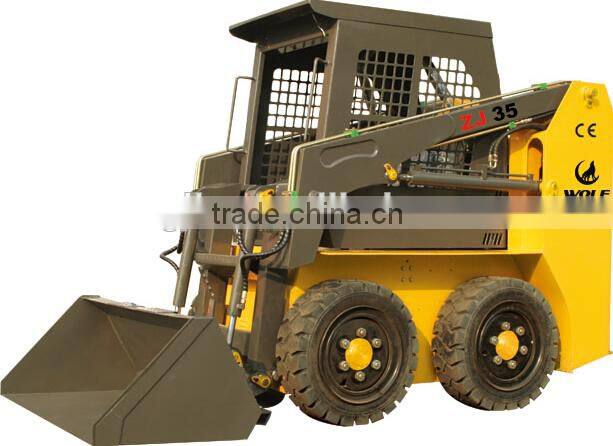

mini skid steer loader, 35hp skid steer loader, mini skid steer loader for sale
Standard configuration:
Yangdong 492 engine, Italy pump, American White Motor, China gear pump, China cylinder, Italy BP multi-way valve, 27*8.5-15 tire, hydraulic brake.
1. Open-type operator cab
2. Hand control system(Mechanical type)
3. Standard bucket 55''
4. Auxiliary hydraulic couplers(common as Bobcatt)
Optional Configuration:
1. Enclosed operator cab with A/C
2. Cab fitted with a heater as standard
3. Hydraulic joystick controls
Detailed Specification of 35hp skid steer loader ZJ35
|
Specifications |
Rated operating capacity(kg) |
500 |
Tipping load(kg) |
1000 |
|
Bucket capacity(m3) |
0.25 |
|
Operationg weight(kg) |
2200 |
|
Max. travel speed(km/h) |
12 |
|
Hydraulic pump flow(L/min) |
50 |
|
Fuel tank capacity(L) |
50 |
|
Tires |
27*8.5-15 |
|
Overall dimensions(mm) |
2900×1400×2000 |
|
|
Dimensions |
Height at maximum extension(mm) |
3300 |
Height to bucket hinge pin(mm) |
2725 |
|
Width with bucket(mm) |
1400 |
|
Track width(mm) |
1080 |
|
Wheelbase(mm) |
891 |
|
Ground clearance(mm) |
150 |
|
Dump angle |
40° |
|
Dumping height(mm) |
2050 |
|
Maximum reach(mm) |
790 |
|
|
Engine |
Maker/Model |
YANGDONG492 |
Net power |
30kw/2650rpm |
|
Type |
4 Cylinder in-line, Water cooled, 4 stroke,Diesel engine |
|
Displacement(L) |
2.156 |
With different kinds of attachments, she can do different jobs for you;)

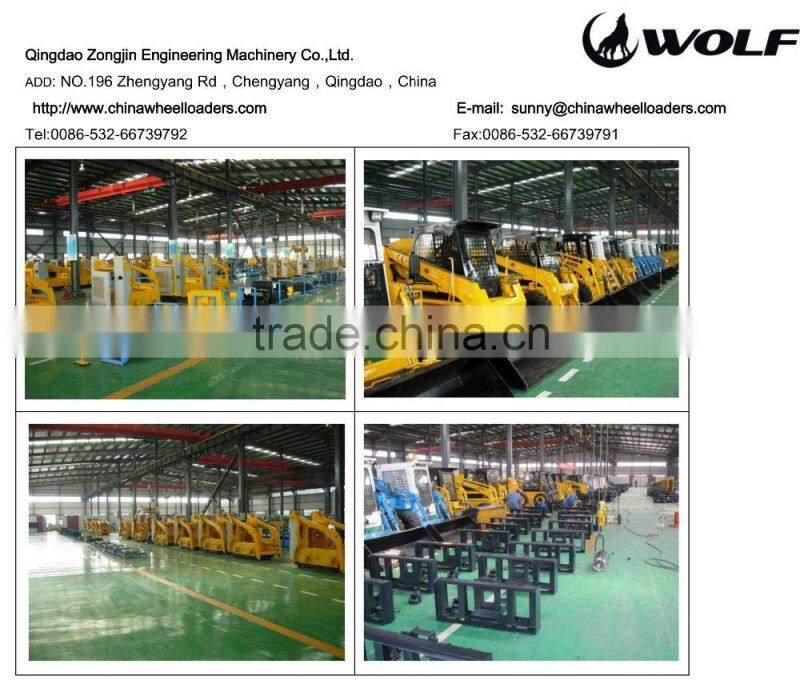

As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, steer skid loader, backhoe loader, forklift and all kinds of attachments, around10 years of experiences,professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.
mini skid steer loader, 35hp skid steer loader, mini skid steer loader for sale
Nude package, 4 sets in a 20GP, 8 sets in a 40HQ.
We have 1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
Choose WOLF, and then better after-service will be guaranteed.
Contact us right now for more information! Online 24 hours a day!
