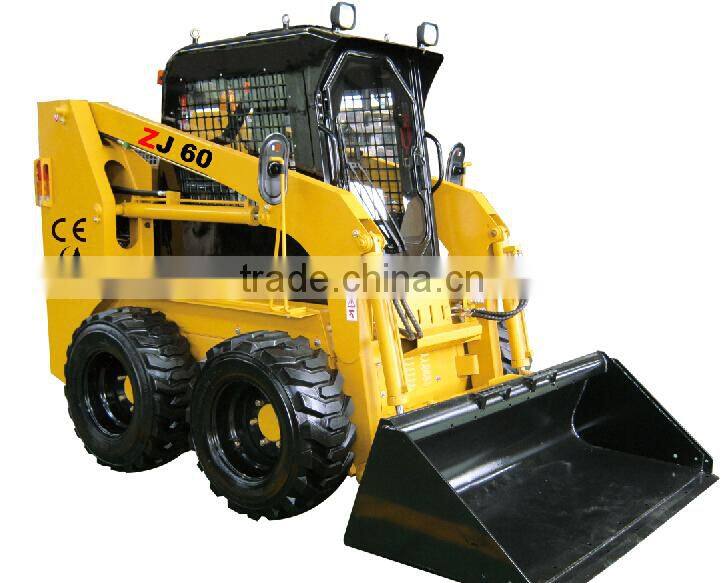

For UK Farm machinery equipment Mini tract skid steer loader with CE approved
Standard configuration
Xinchai498 engine,Open-type operator cab,hand control system(mechanical type),12-16.5 tires,standard bucket,hydraulic brake,Italy fastre quick hitch coupler.
Optional configuration
Enclosed operator cab with A/C
Cab fitted with a heater as standard
Haydraulic joystick controls
Specification
Performance |
Rated operating capacity(kg) |
850 |
Tipping load(kg) |
1700 |
|
Bucket capacity(m3) |
0.5 |
|
Operation weight(kg) |
3200 |
|
Max.travel speed(km/h) |
12 |
|
Hydraulic pump flow(L/min) |
75 |
|
Fuel tank capacity(L) |
80 |
|
Tires |
12-16.5 |
|
Overall dimensions(mm) |
3490x1880x2160 |
|
Dimensions |
Height at maximum extension(mm) |
4000 |
Height to bucket hinge pin(mm) |
3100 |
|
Width with bucket(mm) |
1880 |
|
Track width(mm) |
1500 |
|
Wheelbase(mm) |
991 |
|
Ground clearance(mm) |
200 |
|
Dump angle |
40° |
|
Dumping height(mm) |
2400 |
|
Maximum reach(mm) |
750 |
|
Engine |
Maker/Model |
XINCHAI498 |
Net power |
45KW/2500rpm |
|
Type |
4 cylinder in-line, water cooled,4 stroke, diesel engine |
|
Displacement(L) |
3.168 |
1.For Zongjin,we have a professional sales and after-service team.
We provide one year warranty for free.During the warranty,if there is any quality issue(expect easy- demaged parts),we wil provide the new accessories for you through verifying.
2.We provide the technology consult whenever you have the questions about our products,and we are pleased to help you solve any questions all the time.
As a professional manufacturer and trading enterprise, specialized in the export of wheel loader, backhoe loader,forklift,skid steer loader and all kinds of attachments, around10 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,we ensure every wheel loader that we produce has very reliable quality and stability.
Now, you can see "WOLF" series construction machines working in Africa, Europe, South America, central Asia more than thirty-two countries.
Sincerely looking forward to provide you with the most comprehensive field solutions and the most perfect products and services in the most crucial time.
I'm Nessa,welcome to contact me for more information! I will try my best to make the optimum solution for you!
