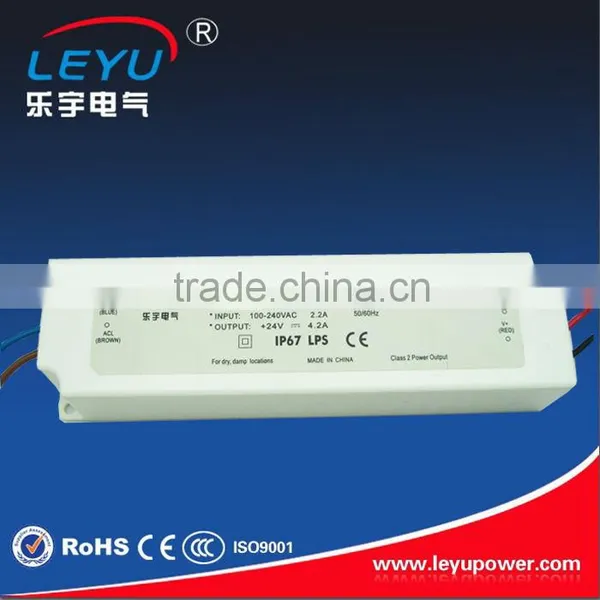

LEYU Plastic case LPV-100-24 100w 24v full range input waterproof led driver
Features:
Constant voltage design
Universal AC input/Full range
Withstand 300VAC surge input for 5 seconds
Protections: short circuit/ over load/ over voltage
Cooling by free air convection
Small and compact size
Fully encapsulated with IP67 level
Fully isolated plastic case
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Low cost, high reliability
2 year warranty
Specification:
100W Single Output Waterproof Switching Power Supply LPV-100 series
MODEL |
LPV-100-5 |
LPV-100-12 |
LPV-100-15 |
LPV-100-24 |
LPV-100-36 |
LPV-100-48 |
|
OUTPUT |
DC VOLTAGE |
5V |
12V |
15V |
24V |
36V |
48V |
|
CURRENT RANGE |
0 ~ 12A |
0 ~ 8.5A |
0 ~ 6.7A |
0 ~ 4.2A |
0 ~ 2.8A |
0 ~ 2.1A |
|
RATED CURRENT |
12A |
8.5A |
6.7A |
4.2A |
2.8A |
2.1A |
|
RATED POWER |
60W |
102W |
100.5W |
100.8W |
100.8W |
100.8W |
|
RIPPLE & NOISE (max.) Note.2 |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
|
VOLTAGE TOLERANCE Note.3 |
±8.0% |
±5.0% |
||||
|
LINE REGULATION |
±1.0% |
|||||
|
LOAD REGULATION |
±6.0% |
±2.0% |
||||
|
SETUP, RISE TIME NOTE.6 |
2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC |
|||||
|
HOLD UP TIME (Typ.) |
50ms/230VAC 16ms/115VAC at full load |
|||||
|
INPUT |
VOLTAGE RANGE NOTE.4 |
90 ~ 264VAC 127 ~ 370VDC |
|||||
|
FREQUENCY RANGE |
47 ~ 63Hz |
|||||
|
EFFICIENCY (Typ.) |
80% |
85% |
87% |
88% |
88% |
89% |
|
AC CURRENT (Typ.) |
2.2A/115VAC 1.2A/230VAC |
|||||
|
INRUSH CURRENT (Typ.) |
COLD START 30A/115VAC 60A/230VAC |
|||||
|
LEAKAGE CURRENT |
0.25mA / 240VAC |
|||||
|
PROTECTION |
OVER CURRENT NOTE.4 |
110 ~ 150% rated output power |
|||||
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed |
|||||
|
OVER VOLTAGE |
5.75 ~ 6.75V |
13.8 ~ 16.2V |
17.25 ~ 20.25V |
27.6 ~ 32.4V |
41.4 ~ 48.6V |
55.2 ~ 64.8V |
|
|
Protection type : Shut down o/p voltage, re-power on to recover |
|||||
|
ENVIRONMENT |
WORKING TEMP. |
-25 ~ +70°C (Refer to output load derating curve) |
|||||
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|||||
|
STORAGE TEMP., HUMIDITY |
-40 ~ +80°C, 10 ~ 95% RH |
|||||
|
TEMP. COEFFICIENT |
±0.03%/ (0 ~ 50°C ) |
|||||
|
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|||||
|
SAFETY &EMC(Note 4) |
SAFETY STANDARDS |
IP67 approved, Design refer to TUV EN60950-1, |
|||||
|
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC |
|||||
|
ISOLATION RESISTANCE |
I/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH |
|||||
|
EMC EMISSION |
Compliance to EN55022 (CISPR22) Class B |
|||||
|
EMC IMMUNITY |
Compliance to EN61000-3-2,-3 |
|||||
|
OTHERS |
MTBF |
703Khrs min. MIL-HDBK-217F (25°C) |
|||||
|
DIMENSION |
190*51*35mm (L*W*H) |
|||||
|
PACKING |
0.63Kg,20pcs/13.6Kg/0.51CUFT |
|||||
Detailed photos :
1.your inquiries will be replied within 24 hours;
2.OEM/OEM available:
a)Print logo on our products
b)Customized specification
c)Customized color package cases
d)Any require about our products, we will customized for you and put it into production in advance.
3.High quality, fashion design,reasonable&competitive price , fast delivery time.
4.After-selling service:
a)all products will adopt strictly testing (Burn-in test) before packing
b)All products will be packed before shipping
c)All products have 1-2 years warranty
5.Fast delivery:
Sample order in stock generally ,and 7-15 days for mass production
6.Payment term:
T/T , western union & paypal
7.Shipping
We have long-term cooperation with DHL,TNT,UPS,FEDEX,EMS,china post air mail, you also can choose your own shipping forwarder.
Welcome my dear friend ,looking forward to get your inquiry. All your inquiry will be replied within 24 hours. Please contact me!
FAQ -power inverter
1. Do you accept OEM for the power inverter ?
Yes. we do .
2 .What certificated do you have ?
CE RoHS ISO9001
3.How to Contact Us ?
Send your inquiry Details in the below, Click "Send" Now !
